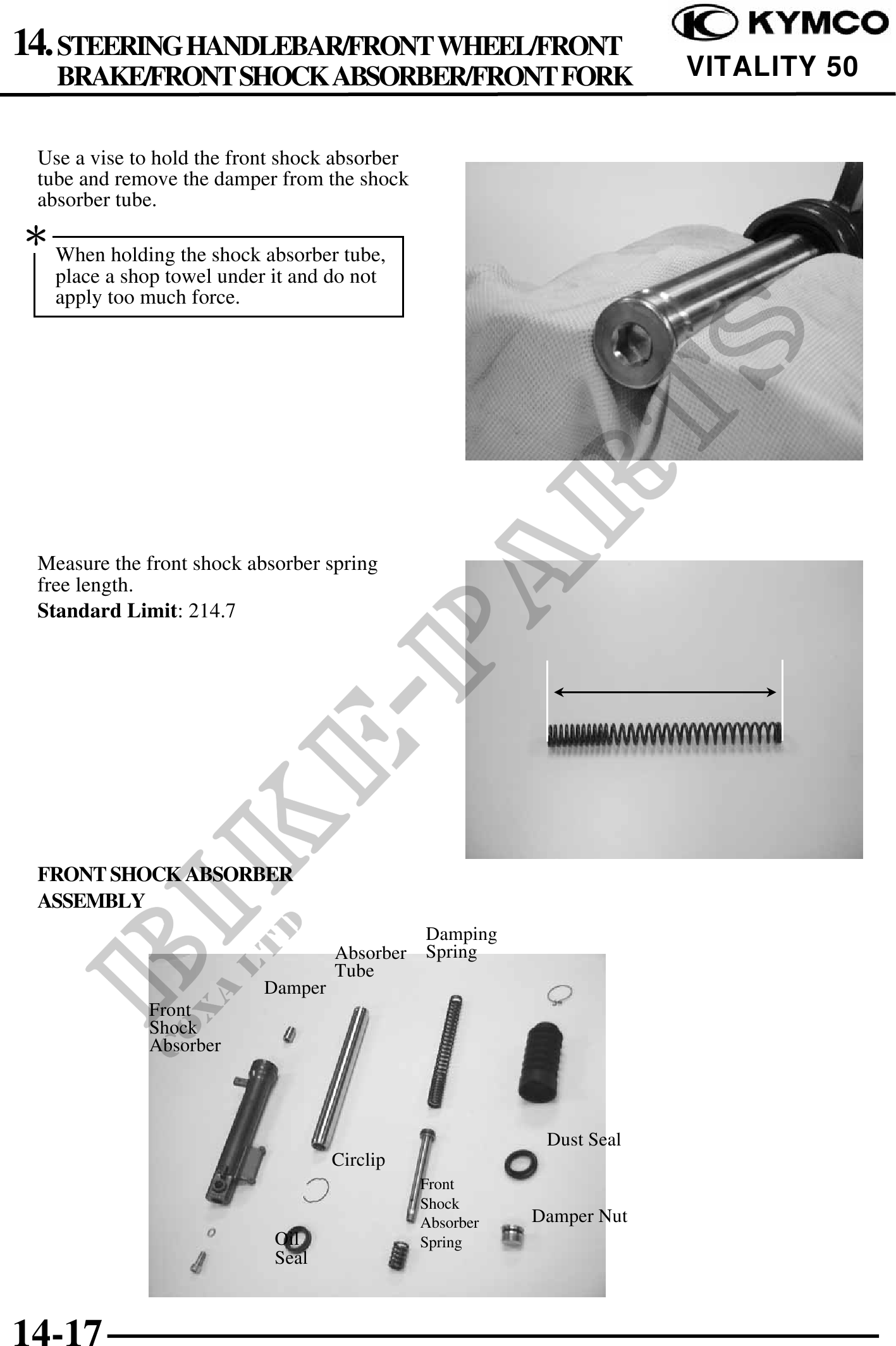

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
   BRAKE/FRONT SHOCK ABSORBER/FRONT FORK                               VITALITY 50


 Use a vise to hold the front shock absorber
 tube and remove the damper from the shock
 absorber tube.

   When holding the shock absorber tube,
   place a shop towel under it and do not
   apply too much force.




 Measure the front shock absorber spring
 free length.
 Standard Limit: 214.7




 FRONT SHOCK ABSORBER
 ASSEMBLY
                                               Damping
                                    Absorber   Spring
                                    Tube
                           Damper
             Front
             Shock
             Absorber



                                                           Dust Seal
                                    Circlip
                                               Front
                                               Shock
                                               Absorber   Damper Nut
                            Oil                Spring
                            Seal



14-17
