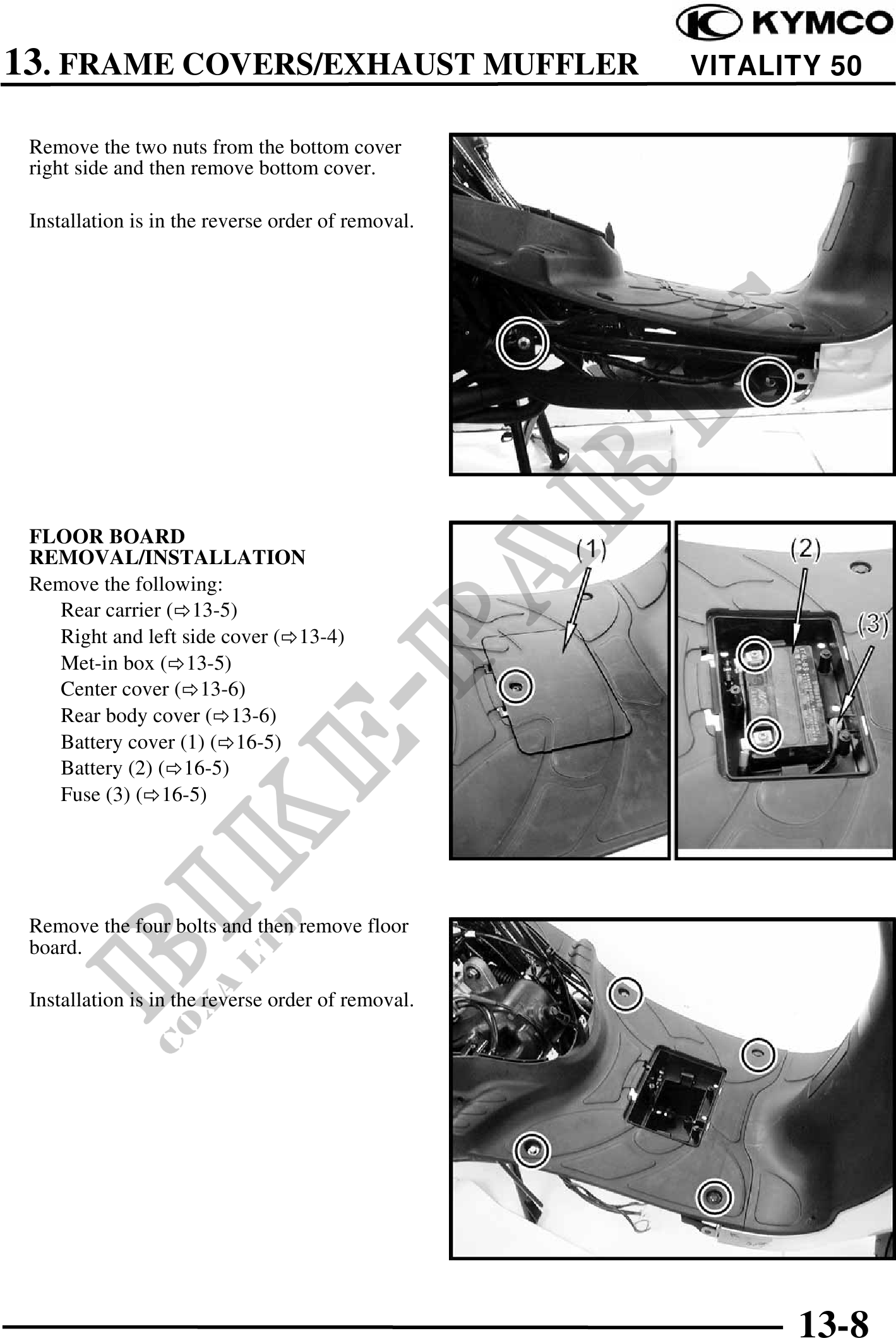

          13. FRAME COVERS/EXHAUST MUFFLER                    VITALITY 50

 Remove the two nuts from the bottom cover
 right side and then remove bottom cover.

 Installation is in the reverse order of removal.




 FLOOR BOARD
 REMOVAL/INSTALLATION
 Remove the following:
    Rear carrier ( 13-5)
    Right and left side cover ( 13-4)
    Met-in box ( 13-5)
    Center cover ( 13-6)
    Rear body cover ( 13-6)
    Battery cover (1) ( 16-5)
    Battery (2) ( 16-5)
    Fuse (3) ( 16-5)




 Remove the four bolts and then remove floor
 board.

 Installation is in the reverse order of removal.
