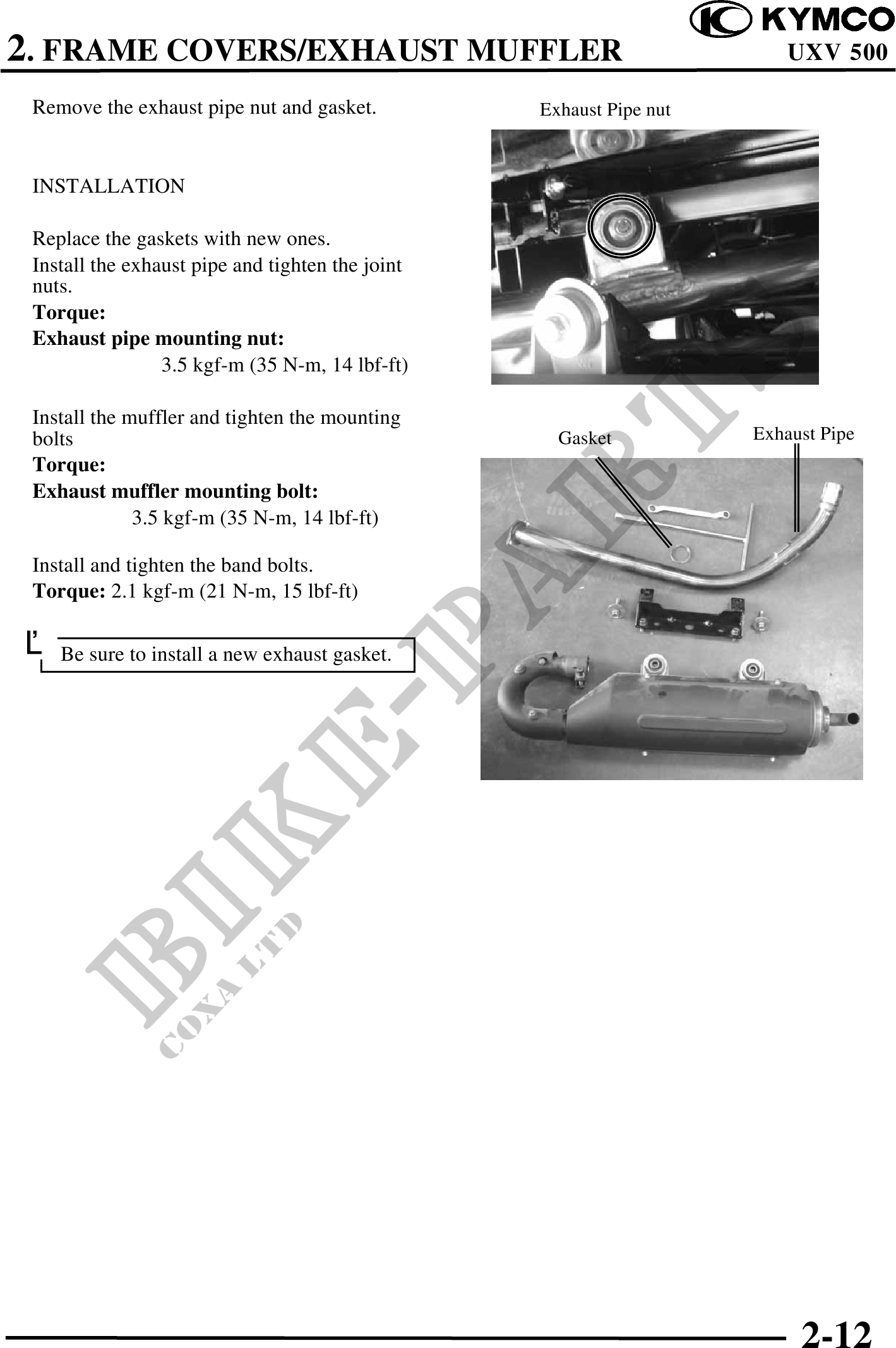

2. FRAME COVERS/EXHAUST MUFFLER UXV 500 Remove the exhaust pipe nut and gasket. Exhaust Pipe nut INSTALLATION Replace the gaskets with new ones. Install the exhaust pipe and tighten the joint nuts. Torque: Exhaust pipe mounting nut: 3.5 kgf-m (35 N-m, 14 lbf-ft) Install the muffler and tighten the mounting bolts Gasket Exhaust Pipe Torque: Exhaust muffler mounting bolt: 3.5 kgf-m (35 N-m, 14 lbf-ft) Install and tighten the band bolts. Torque: 2.1 kgf-m (21 N-m, 15 lbf-ft) Be sure to install a new exhaust gasket. 2-12
