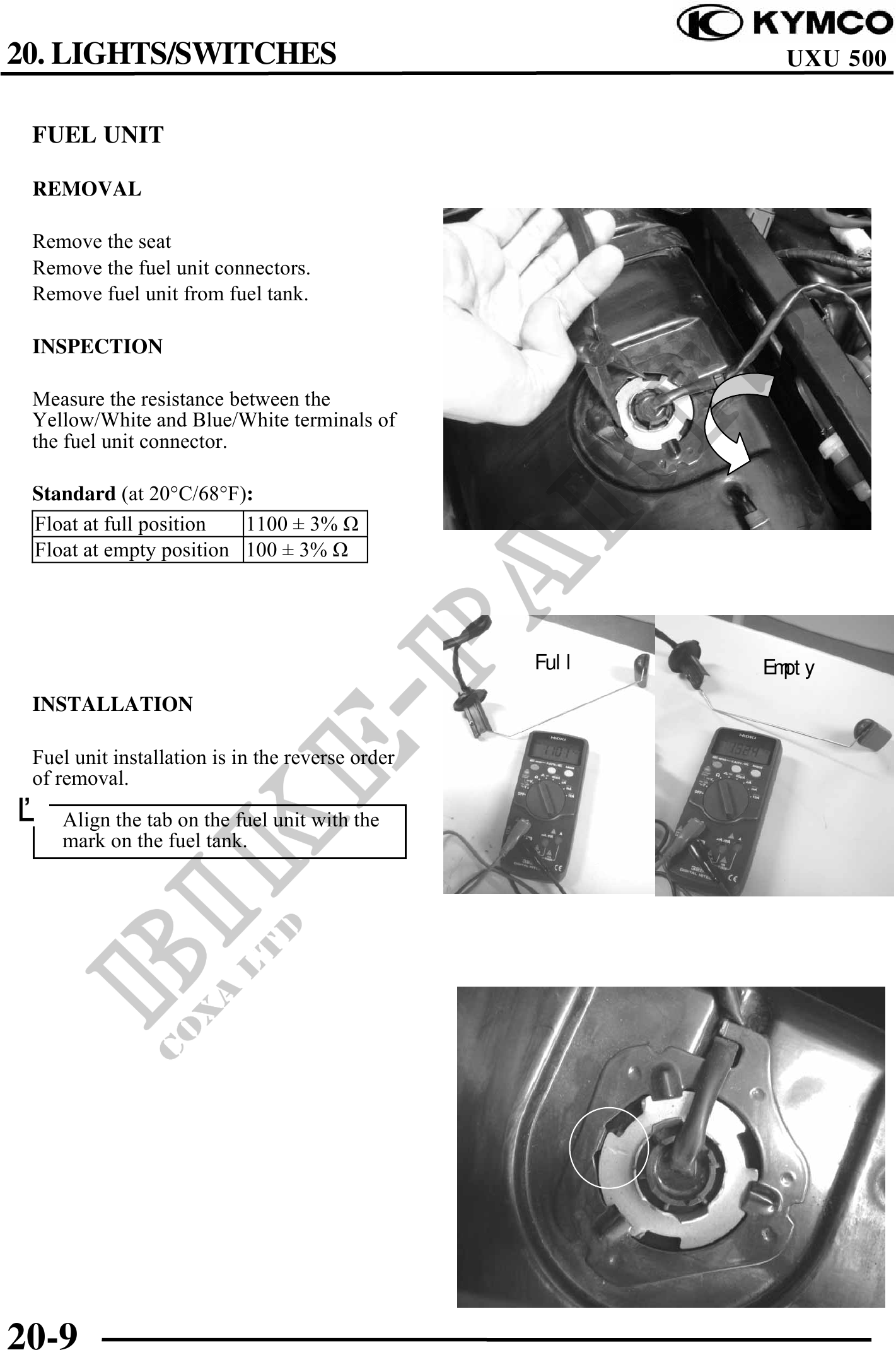

20. LIGHTS/SWITCHES UXU 500 FUEL UNIT REMOVAL Remove the seat Remove the fuel unit connectors. Remove fuel unit from fuel tank. INSPECTION Measure the resistance between the Yellow/White and Blue/White terminals of the fuel unit connector. Standard (at 20°C/68°F): Float at full position 1100 3% Float at empty position 100 3% Full Empty INSTALLATION Fuel unit installation is in the reverse order of removal. Align the tab on the fuel unit with the mark on the fuel tank. 20-9
