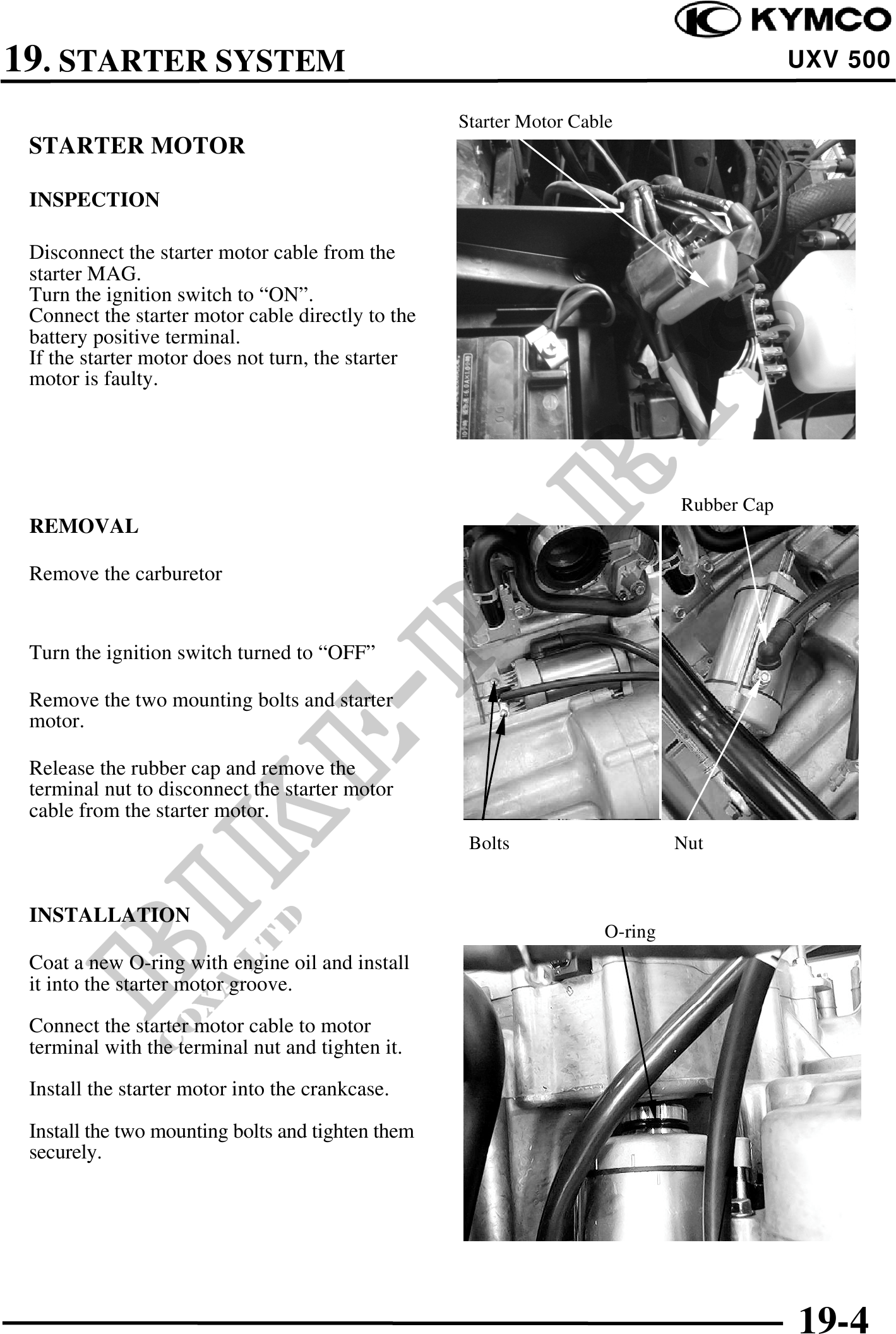

19. STARTER SYSTEM UXV 500 Starter Motor Cable STARTER MOTOR INSPECTION Disconnect the starter motor cable from the starter MAG. Turn the ignition switch to "ON". Connect the starter motor cable directly to the battery positive terminal. If the starter motor does not turn, the starter motor is faulty. Rubber Cap REMOVAL Remove the carburetor Turn the ignition switch turned to "OFF" Remove the two mounting bolts and starter motor. Release the rubber cap and remove the terminal nut to disconnect the starter motor cable from the starter motor. Bolts Nut INSTALLATION O-ring Coat a new O-ring with engine oil and install it into the starter motor groove. Connect the starter motor cable to motor terminal with the terminal nut and tighten it. Install the starter motor into the crankcase. Install the two mounting bolts and tighten them securely. 19-4
