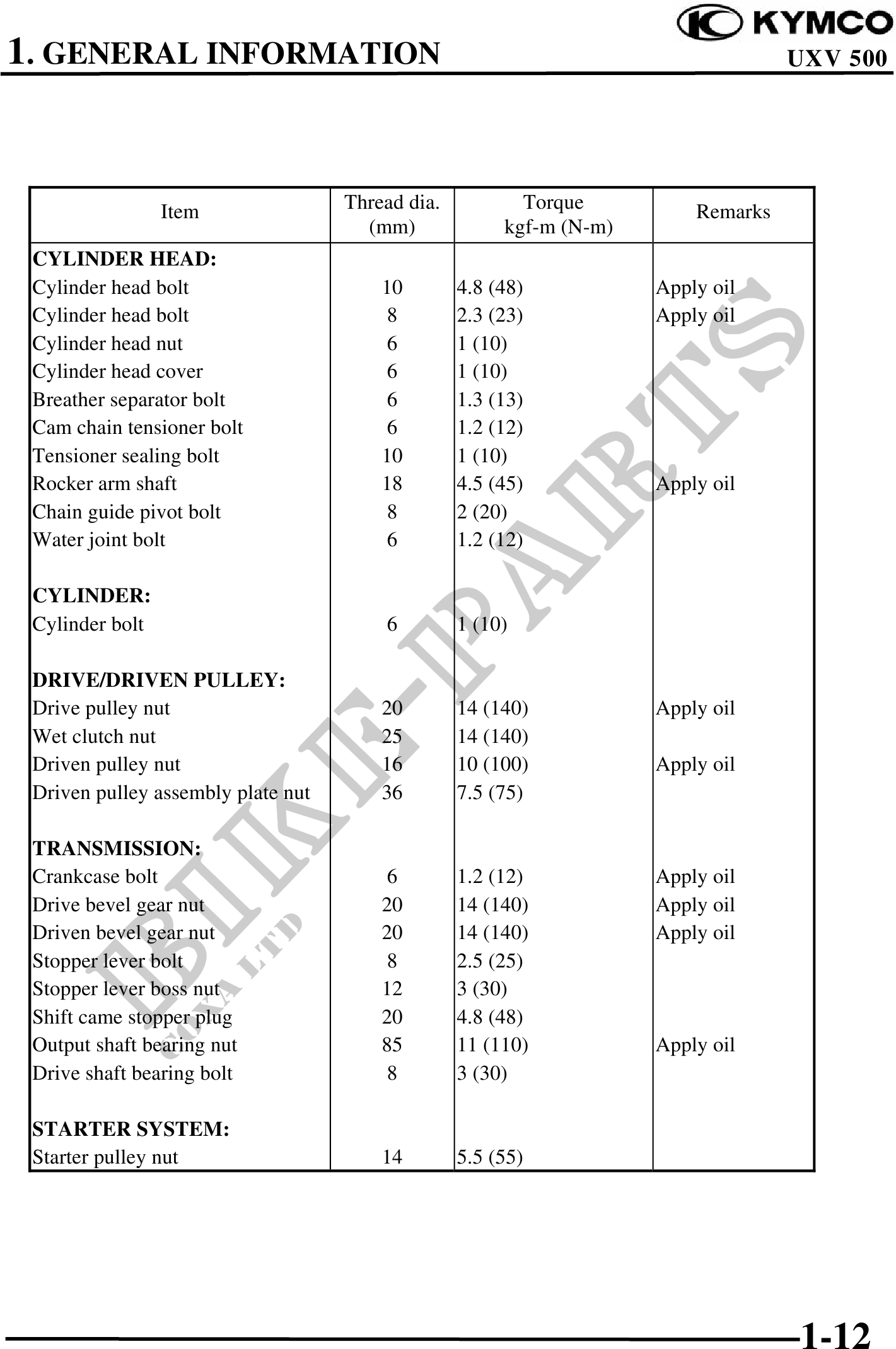

1. GENERAL INFORMATION UXV 500 Item Thread dia. Torque Remarks (mm) kgf-m (N-m) CYLINDER HEAD: Cylinder head bolt 10 4.8 (48) Apply oil Cylinder head bolt 8 2.3 (23) Apply oil Cylinder head nut 6 1 (10) Cylinder head cover 6 1 (10) Breather separator bolt 6 1.3 (13) Cam chain tensioner bolt 6 1.2 (12) Tensioner sealing bolt 10 1 (10) Rocker arm shaft 18 4.5 (45) Apply oil Chain guide pivot bolt 8 2 (20) Water joint bolt 6 1.2 (12) CYLINDER: Cylinder bolt 6 1 (10) DRIVE/DRIVEN PULLEY: Drive pulley nut 20 14 (140) Apply oil Wet clutch nut 25 14 (140) Driven pulley nut 16 10 (100) Apply oil Driven pulley assembly plate nut 36 7.5 (75) TRANSMISSION: Crankcase bolt 6 1.2 (12) Apply oil Drive bevel gear nut 20 14 (140) Apply oil Driven bevel gear nut 20 14 (140) Apply oil Stopper lever bolt 8 2.5 (25) Stopper lever boss nut 12 3 (30) Shift came stopper plug 20 4.8 (48) Output shaft bearing nut 85 11 (110) Apply oil Drive shaft bearing bolt 8 3 (30) STARTER SYSTEM: Starter pulley nut 14 5.5 (55) 1-12
