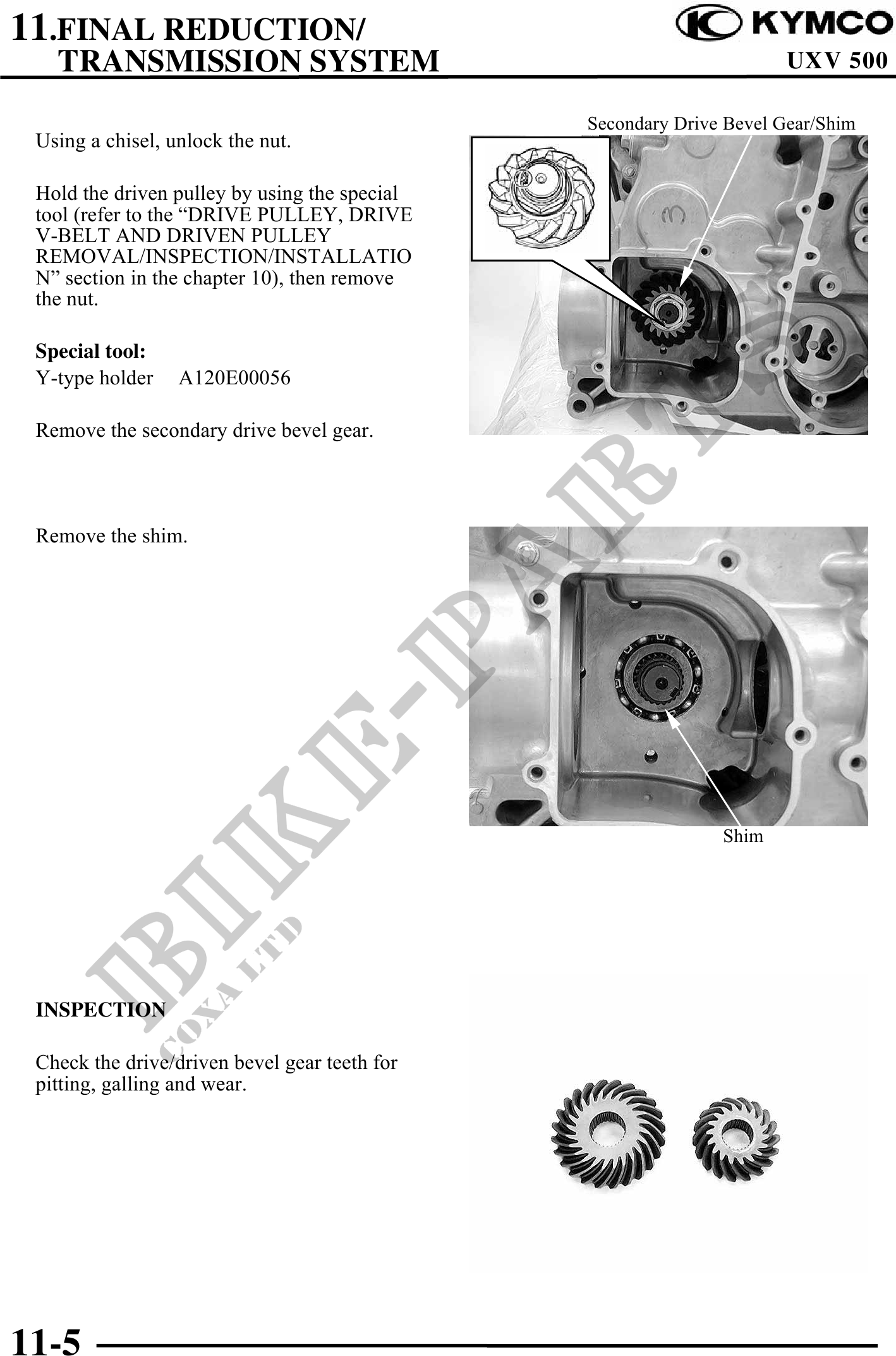

11.FINAL REDUCTION/ TRANSMISSION SYSTEM UXV 500 Secondary Drive Bevel Gear/Shim Using a chisel, unlock the nut. Hold the driven pulley by using the special tool (refer to the "DRIVE PULLEY, DRIVE V-BELT AND DRIVEN PULLEY REMOVAL/INSPECTION/INSTALLATIO N" section in the chapter 10), then remove the nut. Special tool: Y-type holder A120E00056 Remove the secondary drive bevel gear. Remove the shim. Shim INSPECTION Check the drive/driven bevel gear teeth for pitting, galling and wear. 11-5
