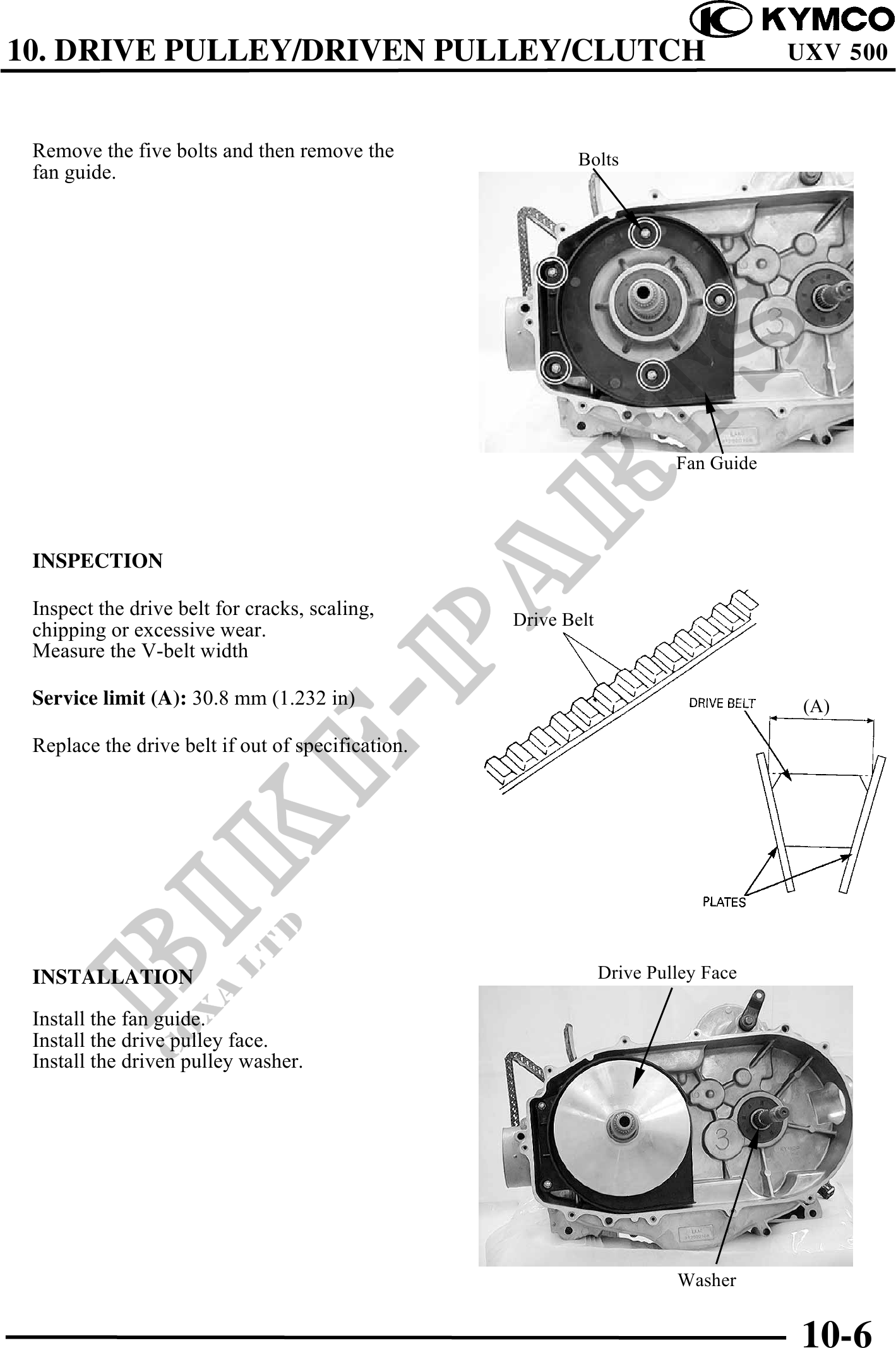

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH UXV 500 Remove the five bolts and then remove the Bolts fan guide. Fan Guide INSPECTION Inspect the drive belt for cracks, scaling, Drive Belt chipping or excessive wear. Measure the V-belt width Service limit (A): 30.8 mm (1.232 in) (A) Replace the drive belt if out of specification. INSTALLATION Drive Pulley Face Install the fan guide. Install the drive pulley face. Install the driven pulley washer. Washer 10-6
