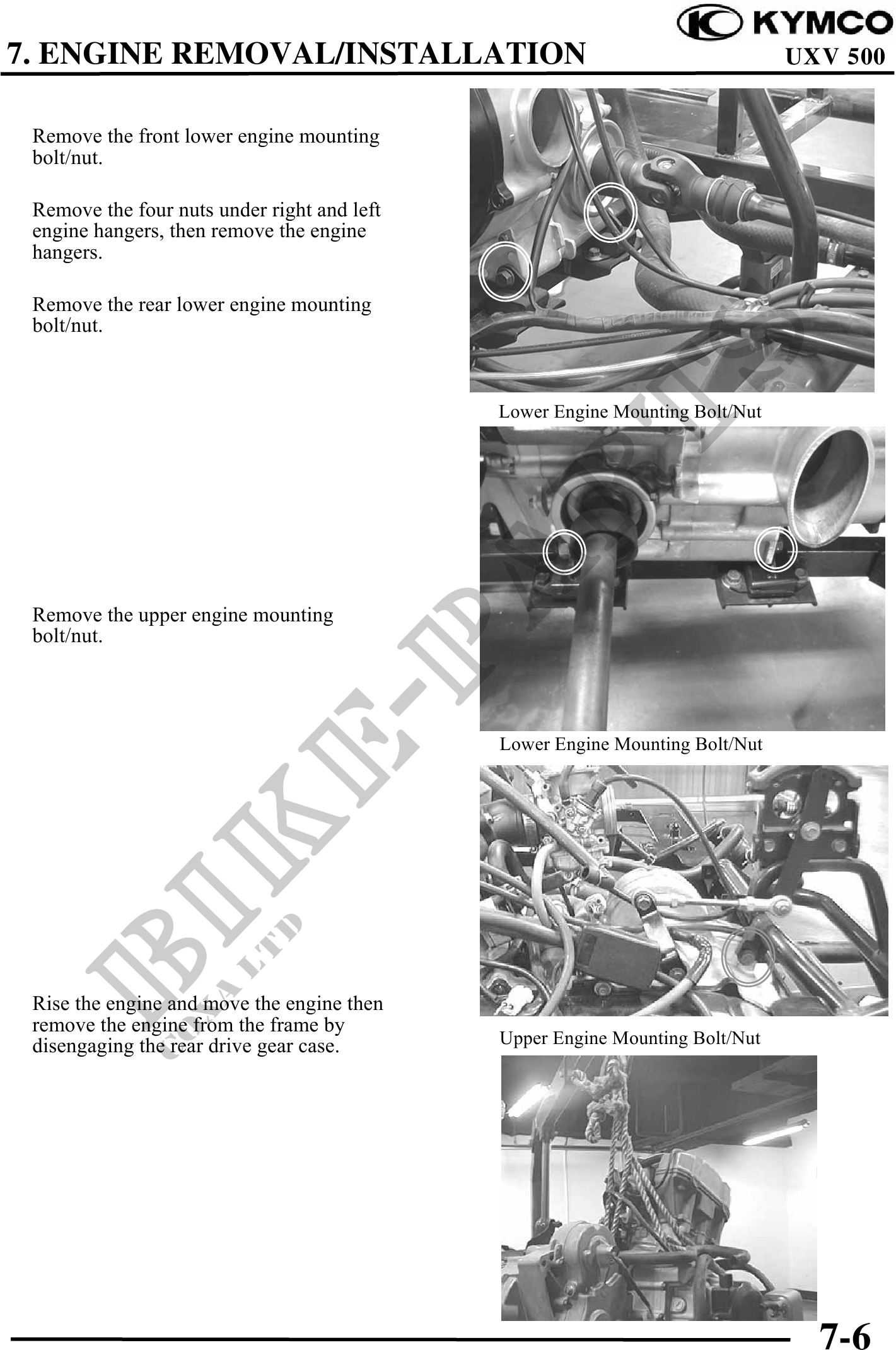

7. ENGINE REMOVAL/INSTALLATION UXV 500 Remove the front lower engine mounting bolt/nut. Remove the four nuts under right and left engine hangers, then remove the engine hangers. Remove the rear lower engine mounting bolt/nut. Lower Engine Mounting Bolt/Nut Remove the upper engine mounting bolt/nut. Lower Engine Mounting Bolt/Nut Rise the engine and move the engine then remove the engine from the frame by disengaging the rear drive gear case. Upper Engine Mounting Bolt/Nut 7-6
