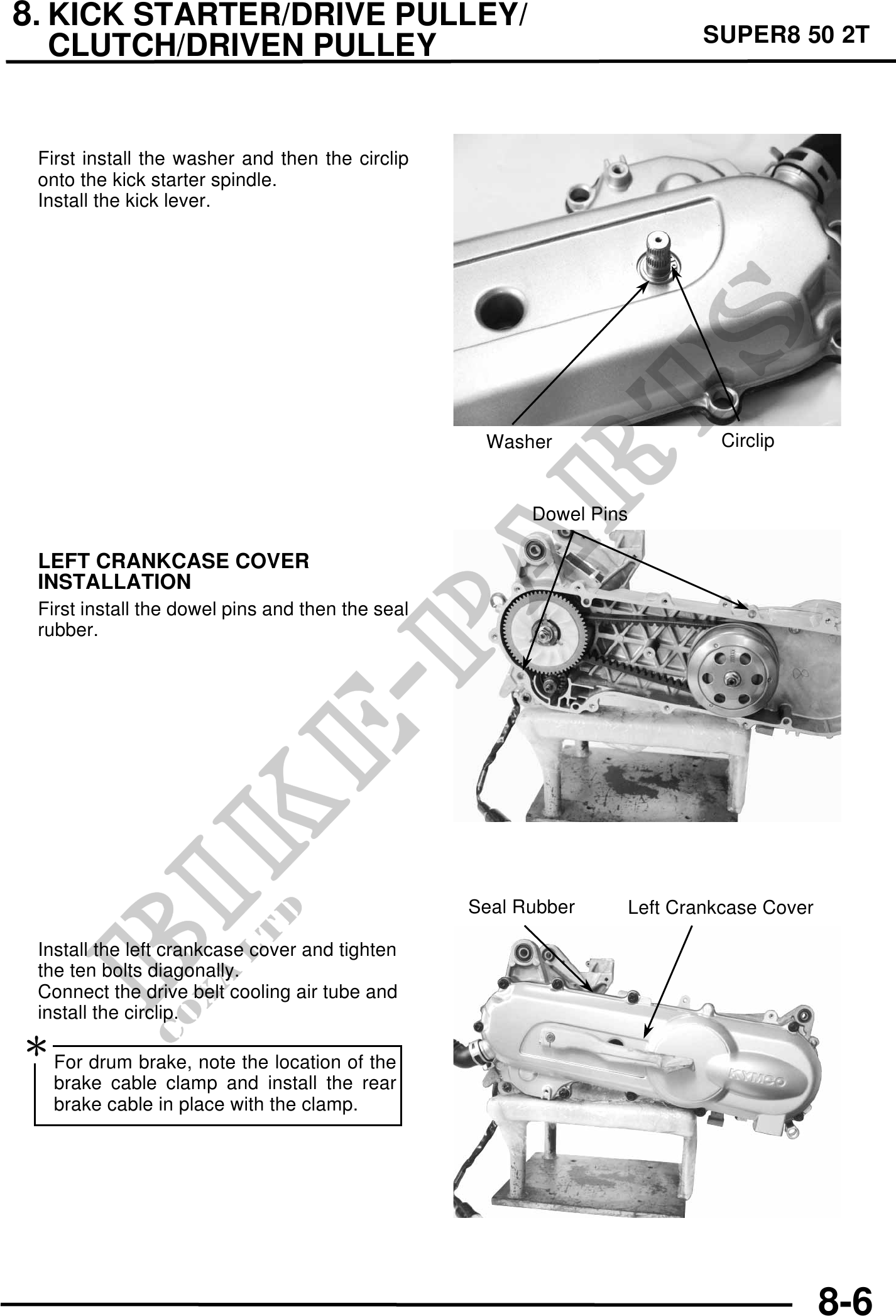

          8. KICK STARTER/DRIVE PULLEY/
                                                                         SUPER8 50 2T
  CLUTCH/DRIVEN PULLEY


 First install the washer and then the circlip
 onto the kick starter spindle.
 Install the kick lever.




                                                   Washer                  Circlip


                                                        Dowel Pins

 LEFT CRANKCASE COVER
 INSTALLATION
 First install the dowel pins and then the seal
 rubber.




                                                  Seal Rubber    Left Crankcase Cover

 Install the left crankcase cover and tighten
 the ten bolts diagonally.
 Connect the drive belt cooling air tube and
 install the circlip.
 For drum brake, note the location of the
   brake cable clamp and install the rear
   brake cable in place with the clamp.




                                                                                        8-6
