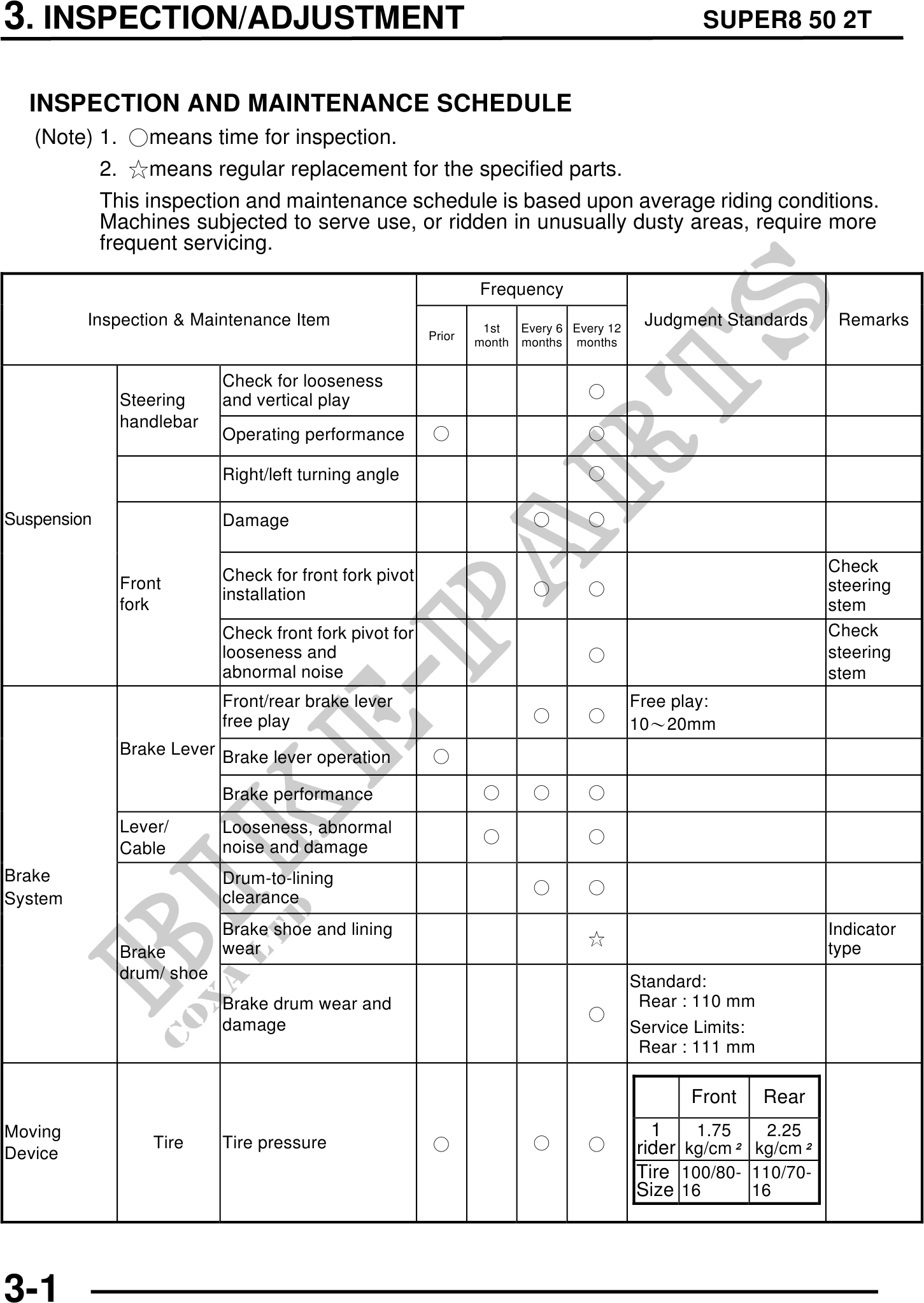

          3. INSPECTION/ADJUSTMENT                                                                        SUPER8 50 2T


  INSPECTION AND MAINTENANCE SCHEDULE
   (Note) 1. means time for inspection.
          2. means regular replacement for the specified parts.
          This inspection and maintenance schedule is based upon average riding conditions.
          Machines subjected to serve use, or ridden in unusually dusty areas, require more
          frequent servicing.

                                                               Frequency
         Inspection & Maintenance Item                          1st  Every 6 Every 12
                                                                                         Judgment Standards       Remarks
                                                       Prior   month months months


                          Check for looseness

             Steering     and vertical play
             handlebar
                          Operating performance

                          Right/left turning angle

Suspension                Damage

                                                                                                                 Check
             Front        Check for front fork pivot
                                                                                                                 steering
                          installation
             fork                                                                                                stem
                          Check front fork pivot for                                                             Check
                          looseness and                                                                          steering
                          abnormal noise                                                                         stem
                          Front/rear brake lever                                        Free play:
                          free play                                                     1020mm
             Brake Lever Brake lever operation

                          Brake performance
             Lever/       Looseness, abnormal
             Cable        noise and damage
Brake                     Drum-to-lining
System                    clearance
                          Brake shoe and lining                                                                  Indicator
             Brake        wear                                                                                   type
             drum/ shoe                                                                 Standard:
                          Brake drum wear and                                            Rear : 110 mm

                          damage                                                        Service Limits:
                                                                                         Rear : 111 mm

                                                                                               Front      Rear
Moving                                                                                    1    1.75    2.25
                 Tire     Tire pressure                                                 rider kg/cm kg/cm
Device
                                                                                        Tire 100/80- 110/70-
                                                                                        Size 16      16




3-1
