          2. GENERAL INFORMATION                                                               SUPER8 50 2T

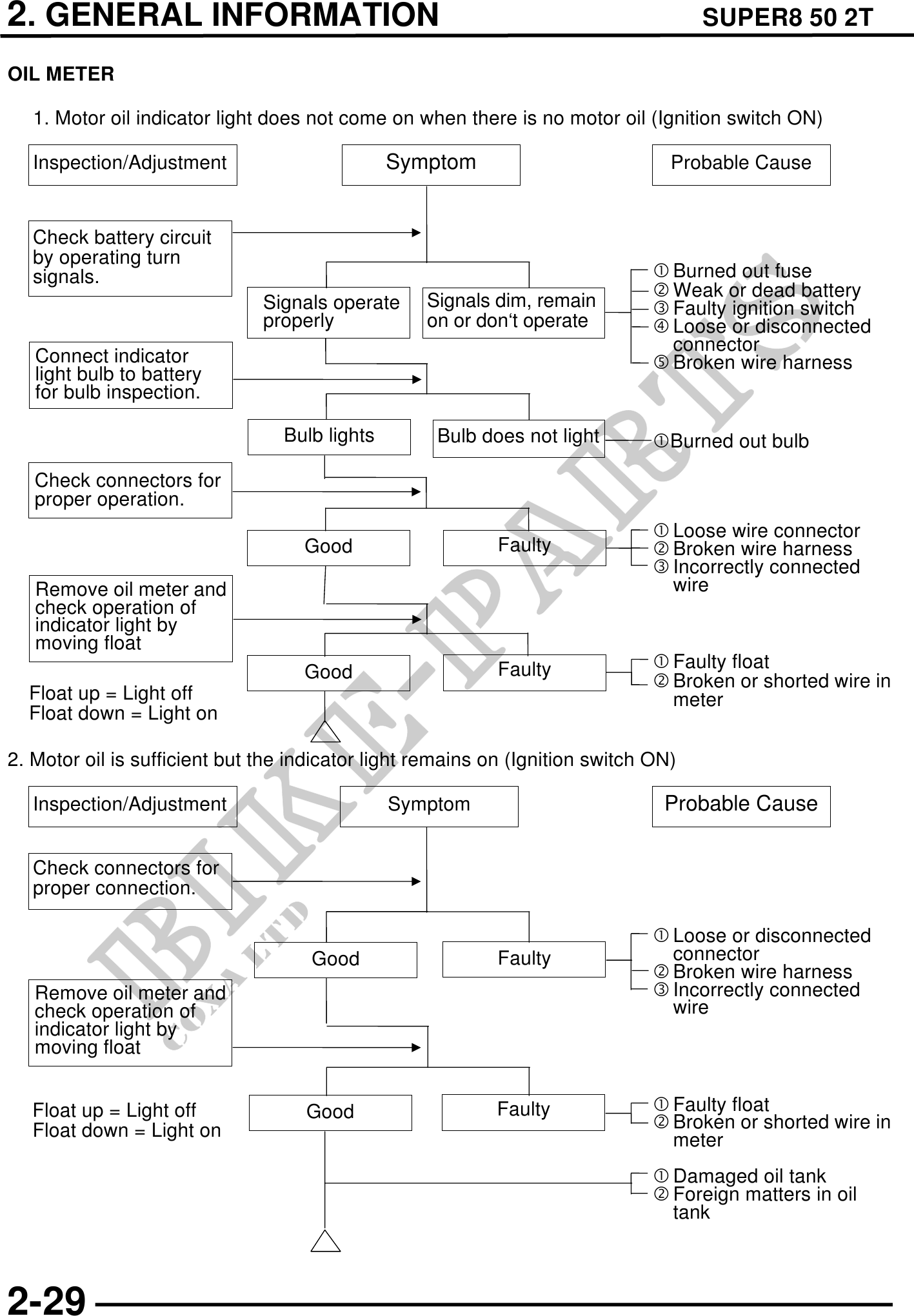

OIL METER

   1. Motor oil indicator light does not come on when there is no motor oil (Ignition switch ON)

   Inspection/Adjustment                       Symptom                           Probable Cause


   Check battery circuit
   by operating turn
   signals.                                                                      Burned out fuse
                                                                                 Weak or dead battery
                               Signals operate     Signals dim, remain           Faulty ignition switch
                               properly            on or don`t operate           Loose or disconnected
                                                                                 connector
   Connect indicator                                                             Broken wire harness
   light bulb to battery
   for bulb inspection.

                                 Bulb lights        Bulb does not light          Burned out bulb
   Check connectors for
   proper operation.
                                                                                 Loose wire connector
                                    Good                    Faulty               Broken wire harness
                                                                                 Incorrectly connected
   Remove oil meter and                                                          wire
   check operation of
   indicator light by
   moving float
                                                            Faulty               Faulty float
                                    Good                                         Broken or shorted wire in
  Float up = Light off                                                           meter
  Float down = Light on

2. Motor oil is sufficient but the indicator light remains on (Ignition switch ON)

   Inspection/Adjustment                       Symptom                          Probable Cause

   Check connectors for
   proper connection.

                                                                                 Loose or disconnected
                                     Good                   Faulty               connector
                                                                                 Broken wire harness
   Remove oil meter and                                                          Incorrectly connected
   check operation of                                                            wire
   indicator light by
   moving float


   Float up = Light off             Good                    Faulty               Faulty float
   Float down = Light on                                                         Broken or shorted wire in
                                                                                 meter
                                                                                 Damaged oil tank
                                                                                 Foreign matters in oil
                                                                                 tank



2-29
