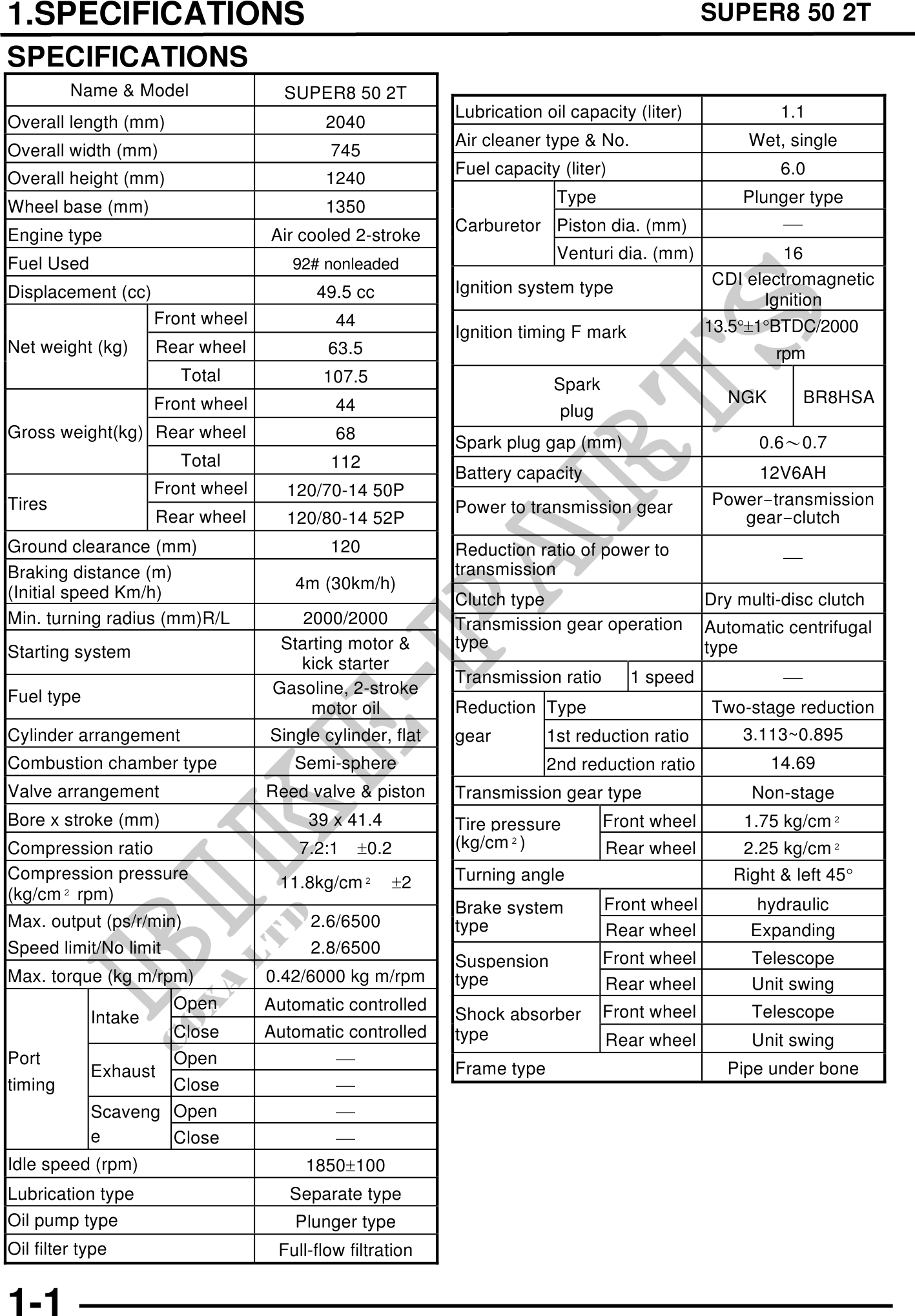

          1.SPECIFICATIONS                                                                             SUPER8 50 2T
SPECIFICATIONS
         Name & Model               SUPER8 50 2T
                                                          Lubrication oil capacity (liter)             1.1
Overall length (mm)                       2040
                                                          Air cleaner type & No.                  Wet, single
Overall width (mm)                        745
                                                          Fuel capacity (liter)                        6.0
Overall height (mm)                       1240
                                                                        Type                      Plunger type
Wheel base (mm)                           1350
                                                          Carburetor Piston dia. (mm)
Engine type                       Air cooled 2-stroke
                                                                        Venturi dia. (mm)              16
Fuel Used                            92# nonleaded
                                                          Ignition system type                CDI electromagnetic
Displacement (cc)                       49.5 cc                                                     Ignition
                    Front wheel            44                                                13.5°1°BTDC/2000
                                                          Ignition timing F mark
Net weight (kg)     Rear wheel            63.5                                                        rpm
                       Total             107.5                         Spark
                    Front wheel            44                                                   NGK       BR8HSA
                                                                        plug
Gross weight(kg) Rear wheel                68
                                                          Spark plug gap (mm)                       0.60.7
                       Total              112
                                                          Battery capacity                       12V6AH
                    Front wheel     120/70-14 50P
Tires                                                     Power to transmission gear         Power-transmission
                    Rear wheel      120/80-14 52P                                               gear-clutch
Ground clearance (mm)                     120             Reduction ratio of power to
Braking distance (m)                                      transmission
                                     4m (30km/h)
(Initial speed Km/h)                                      Clutch type                        Dry multi-disc clutch
Min. turning radius (mm)R/L           2000/2000           Transmission gear operation        Automatic centrifugal
                                   Starting motor &       type                               type
Starting system
                                      kick starter
                                                          Transmission ratio       1 speed
Fuel type                         Gasoline, 2-stroke
                                       motor oil          Reduction Type                     Two-stage reduction
Cylinder arrangement              Single cylinder, flat   gear         1st reduction ratio      3.113~0.895
Combustion chamber type              Semi-sphere                       2nd reduction ratio            14.69
Valve arrangement                 Reed valve & piston     Transmission gear type                   Non-stage
Bore x stroke (mm)                     39 x 41.4          Tire pressure        Front wheel       1.75 kg/cm
Compression ratio                     7.2:1     0.2       (kg/cm)              Rear wheel        2.25 kg/cm
Compression pressure               11.8kg/cm       2      Turning angle                         Right & left 45°
(kg/cm rpm)
                                                          Brake system         Front wheel          hydraulic
Max. output (ps/r/min)                 2.6/6500           type                 Rear wheel          Expanding
Speed limit/No limit                   2.8/6500
                                                          Suspension           Front wheel         Telescope
Max. torque (kg m/rpm)            0.42/6000 kg m/rpm      type                 Rear wheel          Unit swing
                    Open          Automatic controlled                         Front wheel         Telescope
          Intake                                          Shock absorber
                    Close         Automatic controlled    type                 Rear wheel          Unit swing
Port                Open
          Exhaust                                         Frame type                            Pipe under bone
timing              Close
          Scaveng Open
          e         Close
Idle speed (rpm)                       1850100
Lubrication type                     Separate type
Oil pump type                        Plunger type
Oil filter type                    Full-flow filtration


1-1
