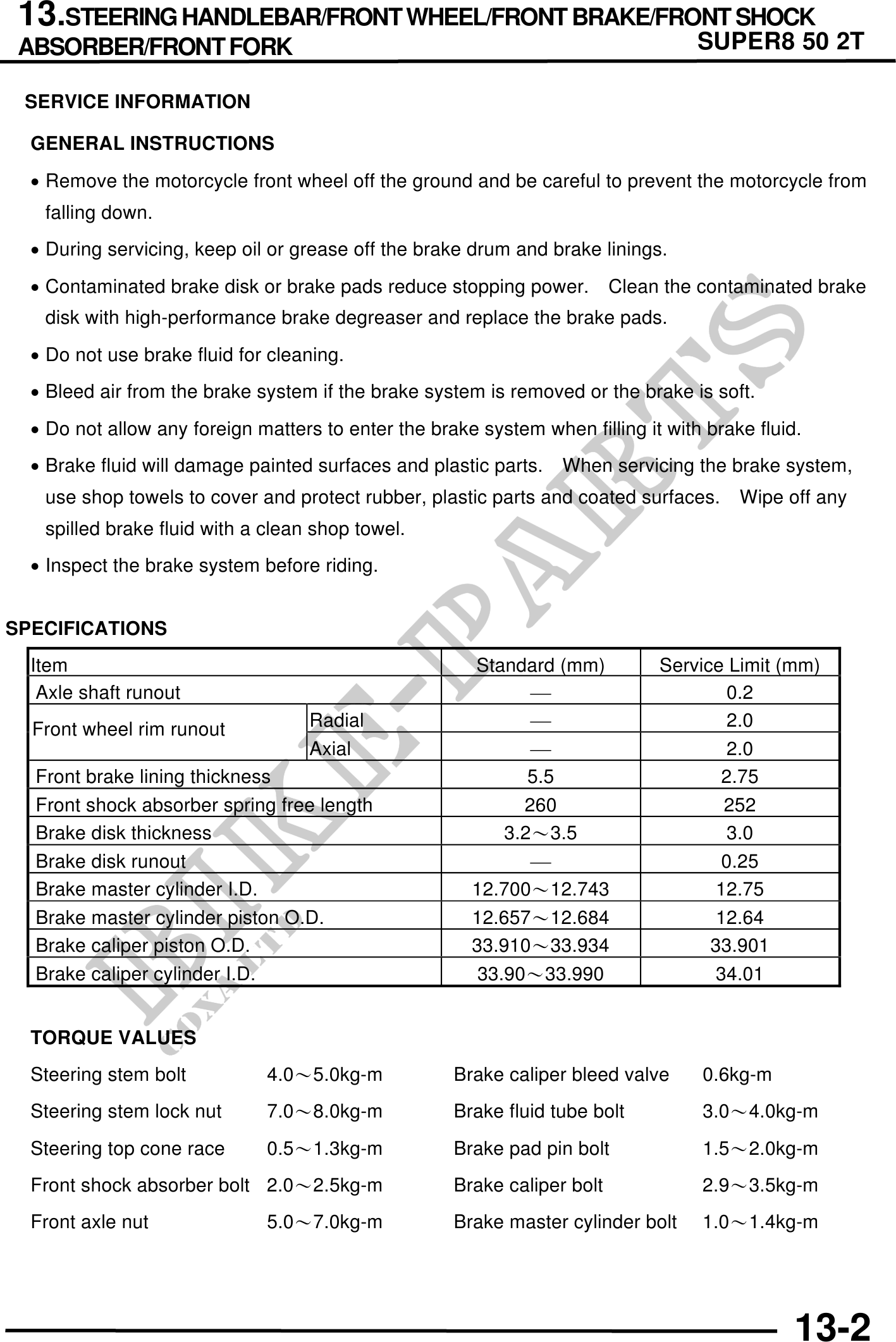

           13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
 ABSORBER/FRONT FORK                                                               SUPER8 50 2T

 SERVICE INFORMATION

  GENERAL INSTRUCTIONS
  · Remove the motorcycle front wheel off the ground and be careful to prevent the motorcycle from
   falling down.
  · During servicing, keep oil or grease off the brake drum and brake linings.
  · Contaminated brake disk or brake pads reduce stopping power.          Clean the contaminated brake
   disk with high-performance brake degreaser and replace the brake pads.
  · Do not use brake fluid for cleaning.
  · Bleed air from the brake system if the brake system is removed or the brake is soft.
  · Do not allow any foreign matters to enter the brake system when filling it with brake fluid.
  · Brake fluid will damage painted surfaces and plastic parts.   When servicing the brake system,
   use shop towels to cover and protect rubber, plastic parts and coated surfaces.      Wipe off any
   spilled brake fluid with a clean shop towel.
  · Inspect the brake system before riding.


SPECIFICATIONS
  Item                                                 Standard (mm)           Service Limit (mm)
   Axle shaft runout                                                                   0.2
  Front wheel rim runout           Radial                                              2.0
                                   Axial                                               2.0
  Front brake lining thickness                                5.5                     2.75
  Front shock absorber spring free length                    260                      252
  Brake disk thickness                                     3.23.5                      3.0
  Brake disk runout                                                                   0.25
  Brake master cylinder I.D.                           12.70012.743                  12.75
  Brake master cylinder piston O.D.                    12.65712.684                  12.64
  Brake caliper piston O.D.                            33.91033.934                  33.901
  Brake caliper cylinder I.D.                           33.9033.990                  34.01


  TORQUE VALUES
  Steering stem bolt          4.05.0kg-m             Brake caliper bleed valve      0.6kg-m
  Steering stem lock nut      7.08.0kg-m             Brake fluid tube bolt          3.04.0kg-m
  Steering top cone race      0.51.3kg-m             Brake pad pin bolt             1.52.0kg-m
  Front shock absorber bolt 2.02.5kg-m               Brake caliper bolt             2.93.5kg-m
  Front axle nut              5.07.0kg-m             Brake master cylinder bolt     1.01.4kg-m




                                                                                               13-2
