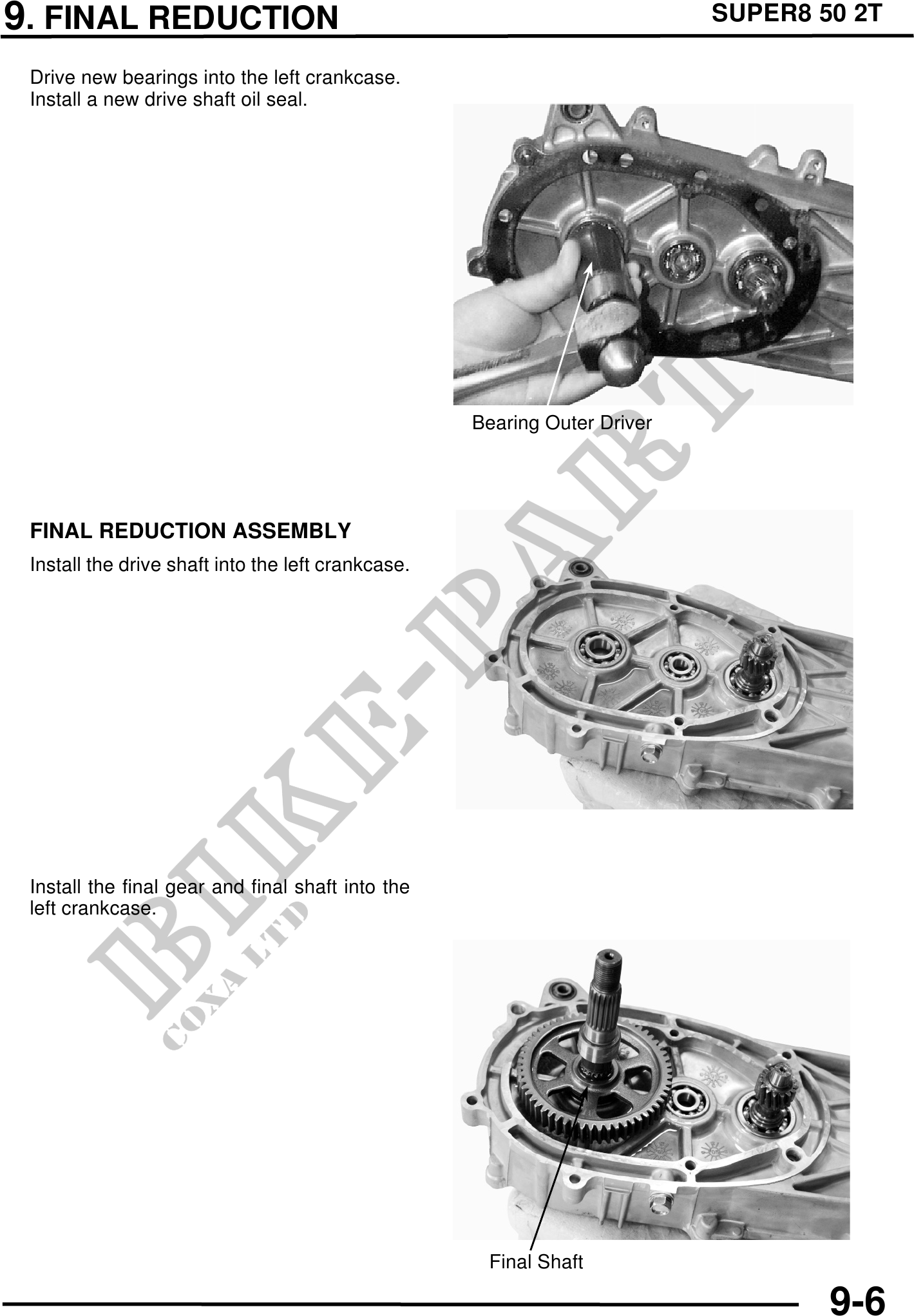

          9. FINAL REDUCTION                                                         SUPER8 50 2T

 Drive new bearings into the left crankcase.
 Install a new drive shaft oil seal.




                                                    Bearing Outer Driver




 FINAL REDUCTION ASSEMBLY
 Install the drive shaft into the left crankcase.




 Install the final gear and final shaft into the
 left crankcase.




                                                     Final Shaft

                                                                                   9-6
