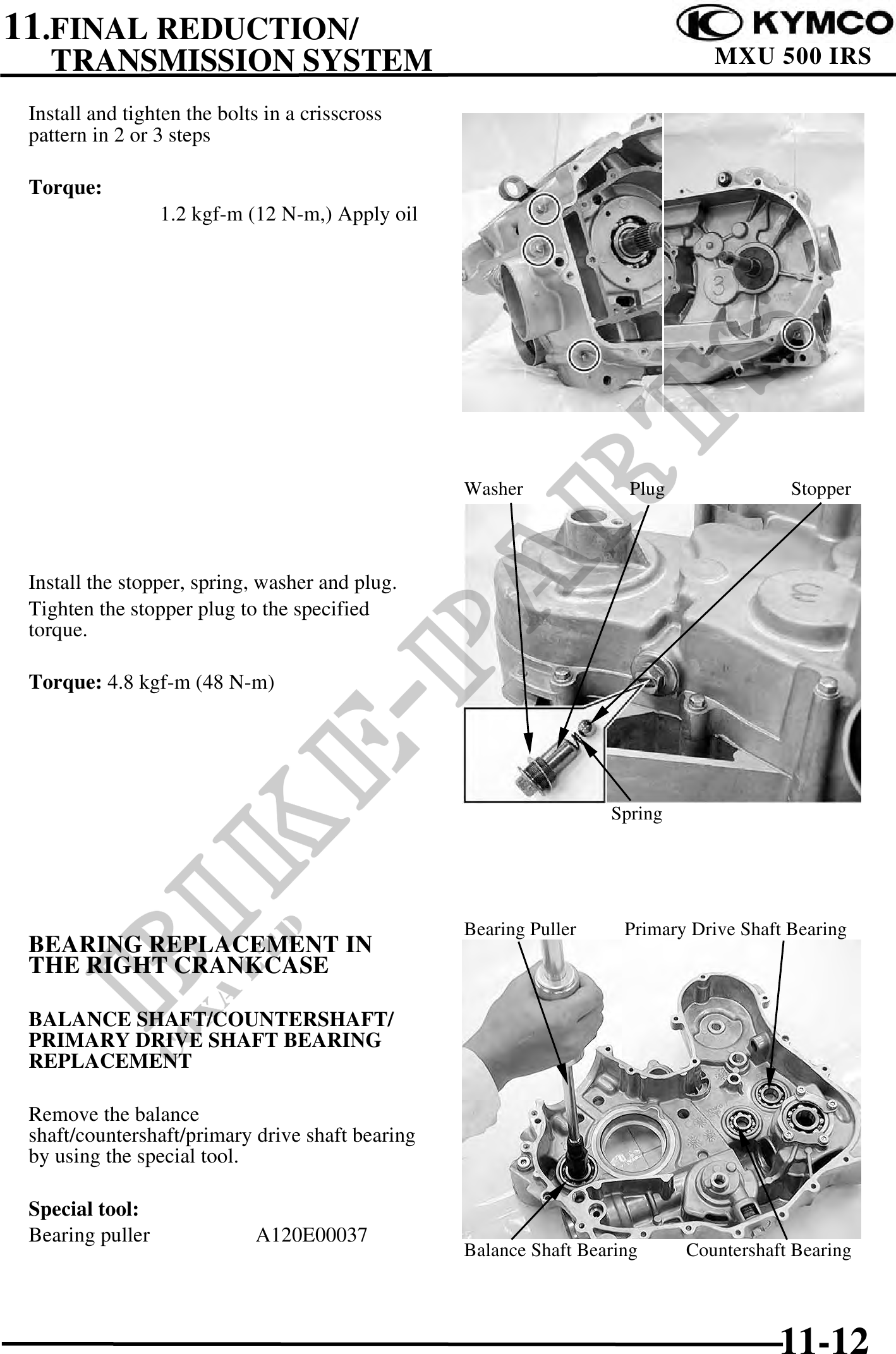

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                          MXU 500 IRS

 Install and tighten the bolts in a crisscross
 pattern in 2 or 3 steps

 Torque:
                  1.2 kgf-m (12 N-m,) Apply oil




                                                  Washer              Plug               Stopper



 Install the stopper, spring, washer and plug.
 Tighten the stopper plug to the specified
 torque.

 Torque: 4.8 kgf-m (48 N-m)




                                                                   Spring




                                                  Bearing Puller     Primary Drive Shaft Bearing
 BEARING REPLACEMENT IN
 THE RIGHT CRANKCASE

 BALANCE SHAFT/COUNTERSHAFT/
 PRIMARY DRIVE SHAFT BEARING
 REPLACEMENT

 Remove the balance
 shaft/countershaft/primary drive shaft bearing
 by using the special tool.

 Special tool:
 Bearing puller              A120E00037
                                                  Balance Shaft Bearing      Countershaft Bearing




                                                                                        11-12
