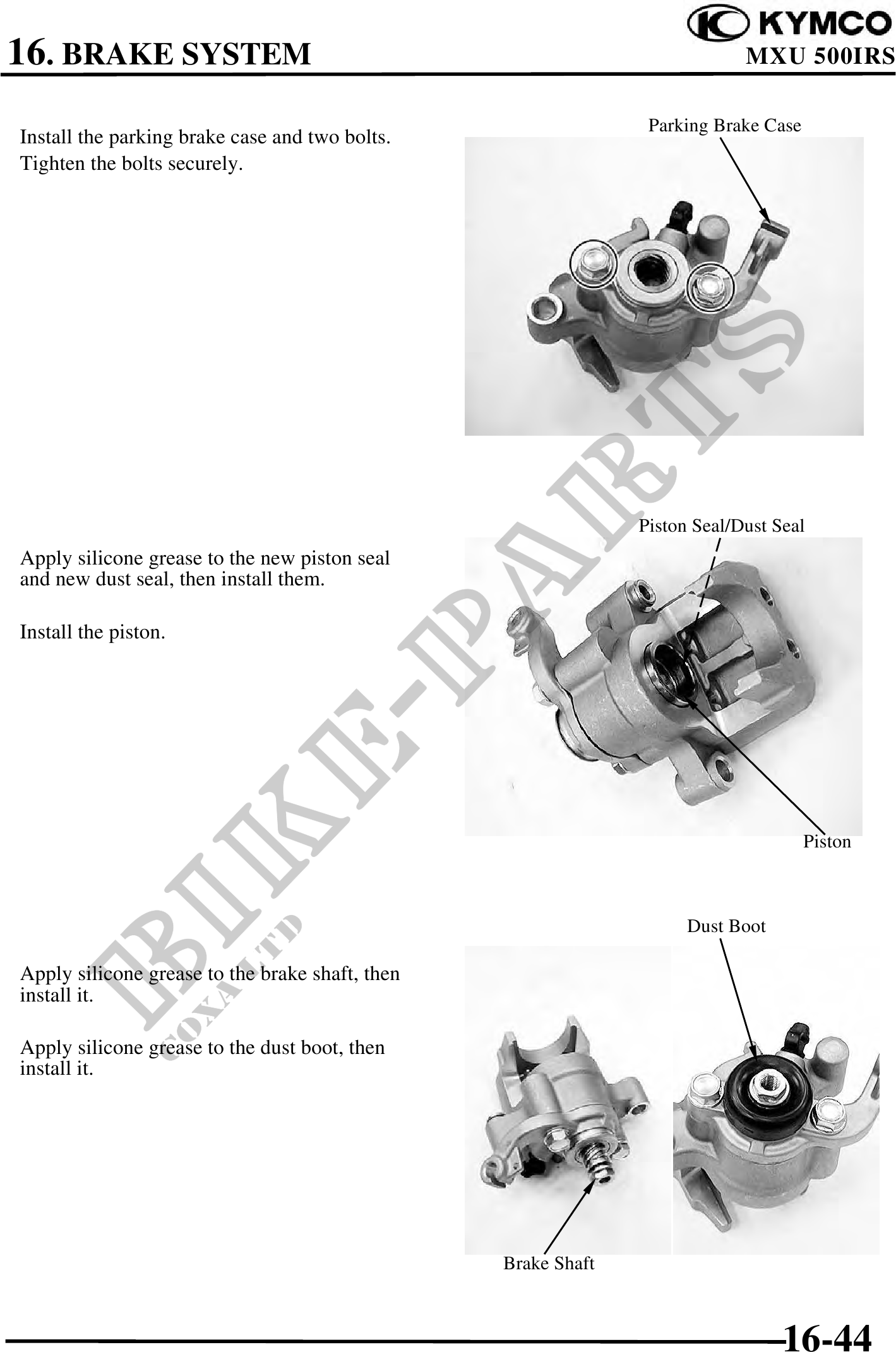

          16. BRAKE SYSTEM                                                            MXU 500IRS

                                                                Parking Brake Case
Install the parking brake case and two bolts.
Tighten the bolts securely.




                                                               Piston Seal/Dust Seal
Apply silicone grease to the new piston seal
and new dust seal, then install them.

Install the piston.




                                                                                     Piston



                                                                     Dust Boot

Apply silicone grease to the brake shaft, then
install it.

Apply silicone grease to the dust boot, then
install it.




                                                 Brake Shaft



                                                                                 16-44
