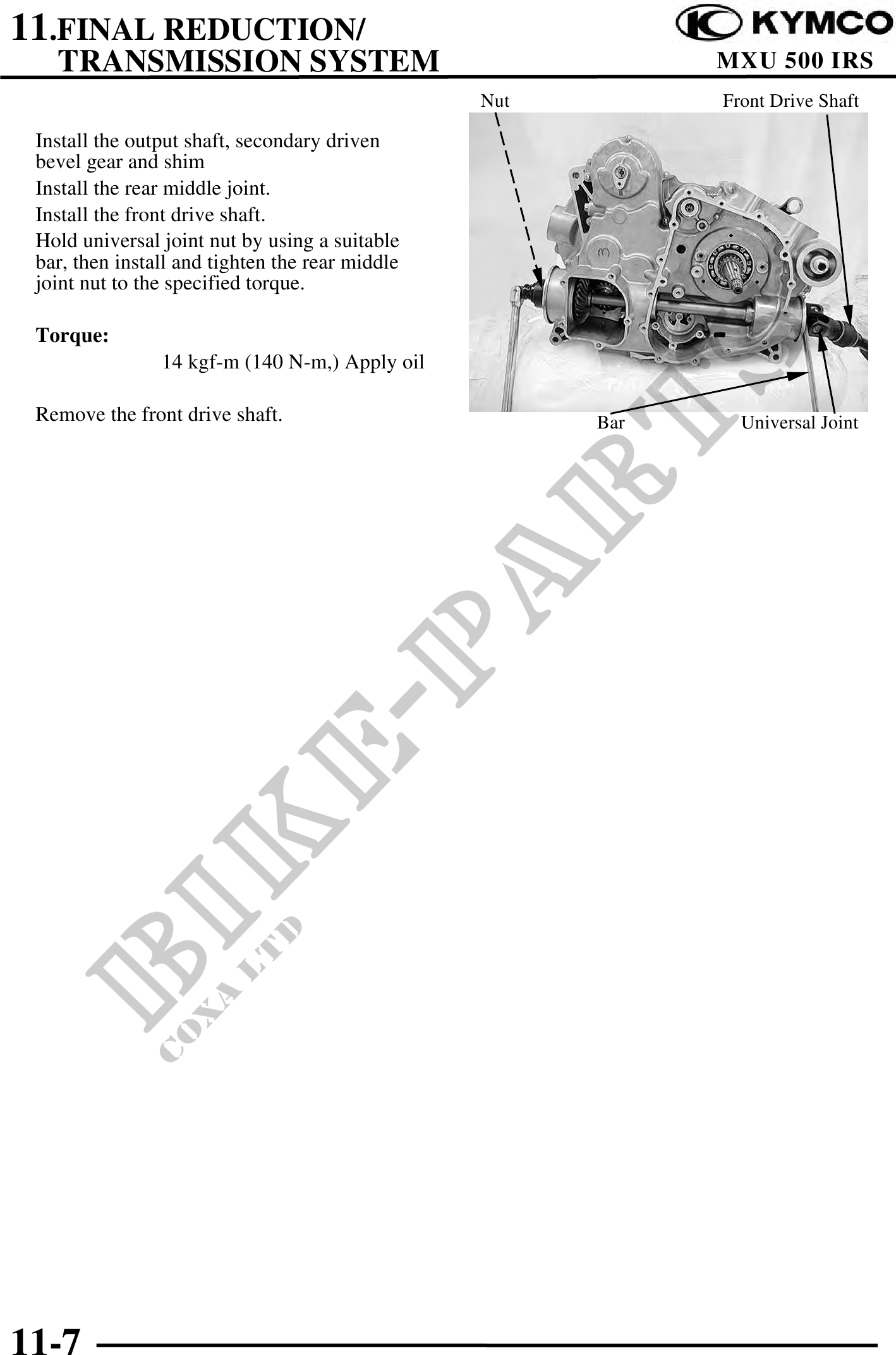

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                       MXU 500 IRS
                                                 Nut         Front Drive Shaft

 Install the output shaft, secondary driven
 bevel gear and shim
 Install the rear middle joint.
 Install the front drive shaft.
 Hold universal joint nut by using a suitable
 bar, then install and tighten the rear middle
 joint nut to the specified torque.

 Torque:
                14 kgf-m (140 N-m,) Apply oil

 Remove the front drive shaft.                         Bar     Universal Joint




11-7
