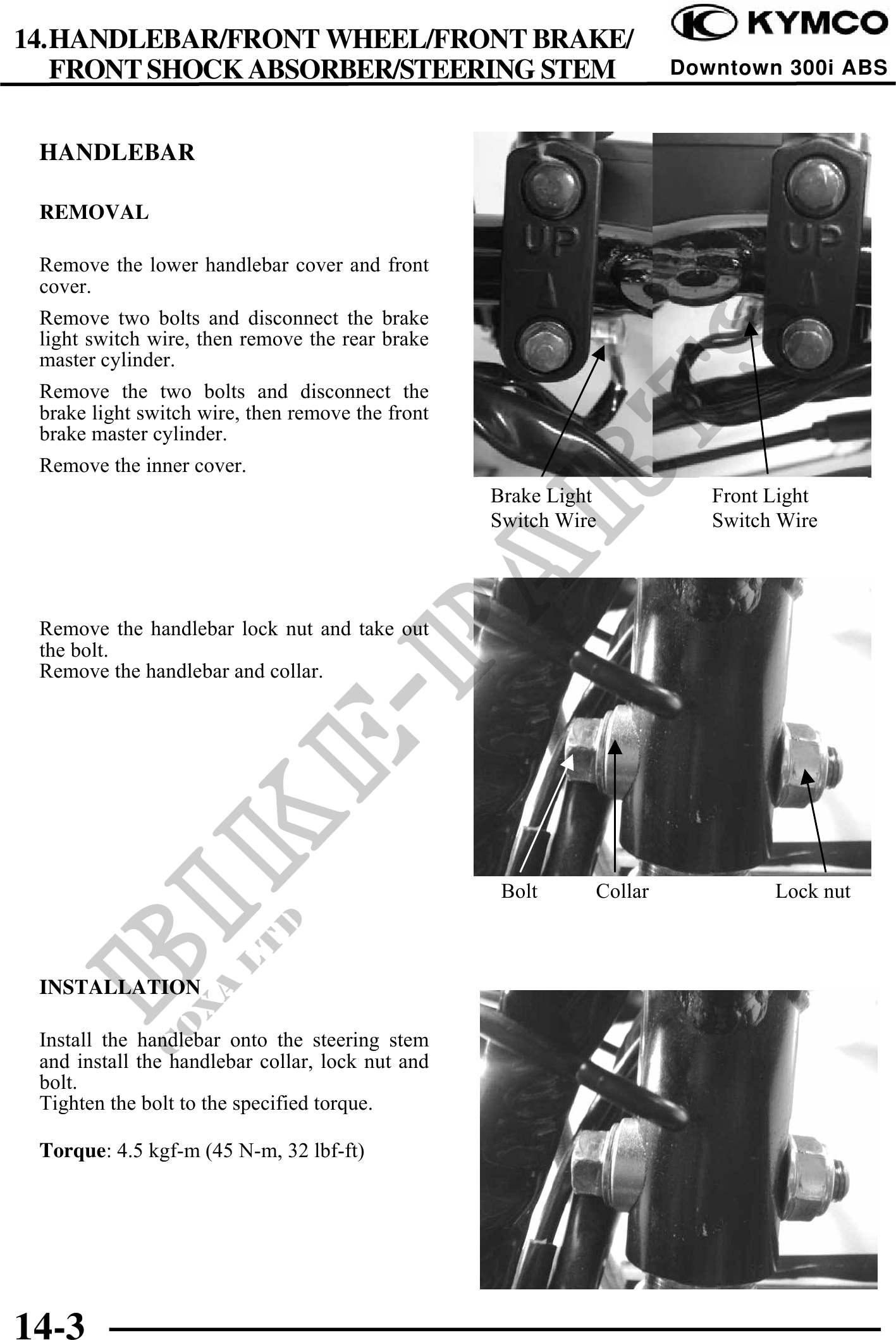

14.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
FRONT SHOCK ABSORBER/STEERING STEM Downtown 300i ABS
HANDLEBAR
REMOVAL
Remove the lower handlebar cover and front
cover.
Remove two bolts and disconnect the brake
light switch wire, then remove the rear brake
master cylinder.
Remove the two bolts and disconnect the
brake light switch wire, then remove the front
brake master cylinder.
Remove the inner cover.
Brake Light Front Light
Switch Wire Switch Wire
Remove the handlebar lock nut and take out
the bolt.
Remove the handlebar and collar.
Bolt Collar Lock nut
INSTALLATION
Install the handlebar onto the steering stem
and install the handlebar collar, lock nut and
bolt.
Tighten the bolt to the specified torque.
Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)
14-3
