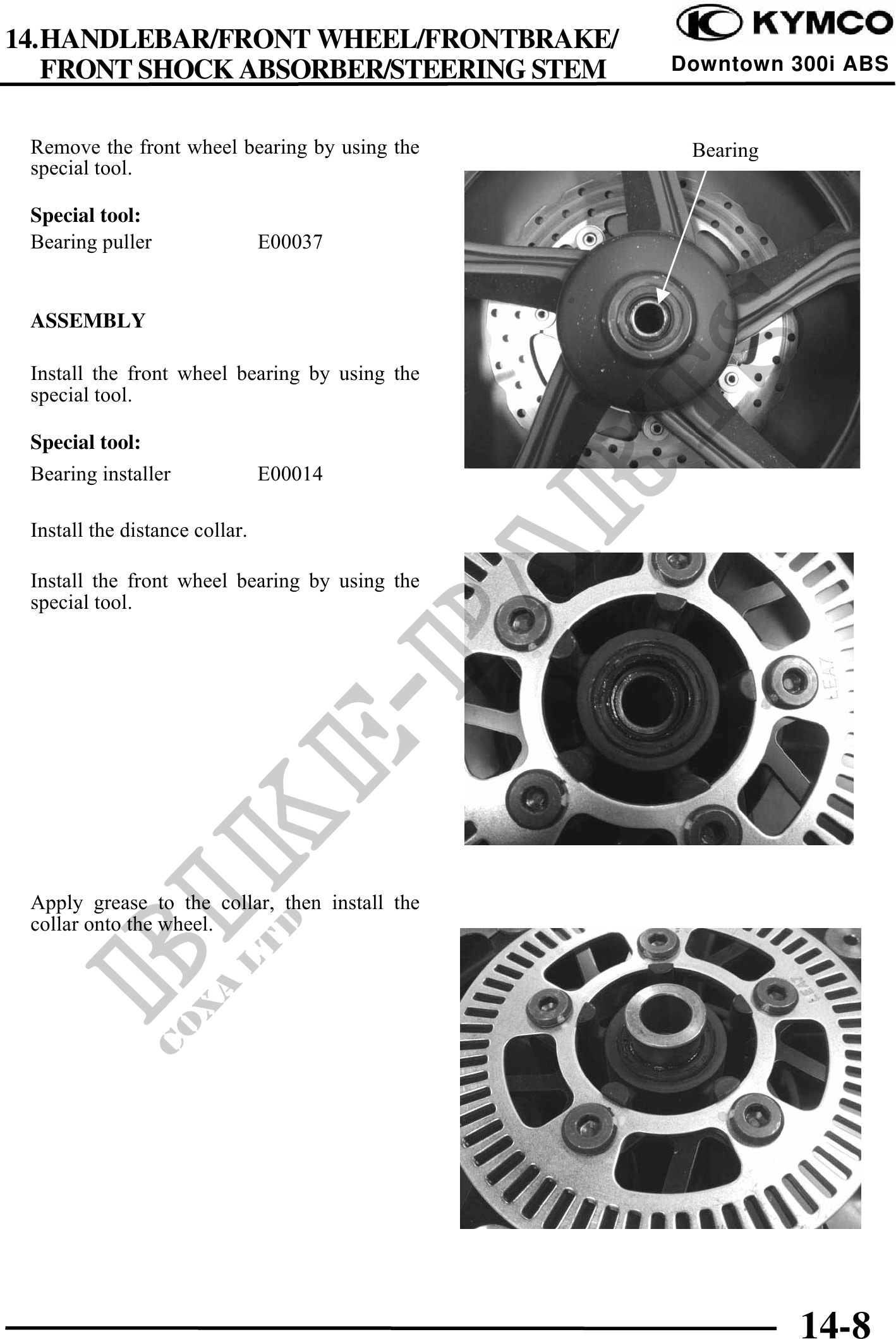

          14.HANDLEBAR/FRONT WHEEL/FRONTBRAKE/
   FRONT SHOCK ABSORBER/STEERING STEM           Downtown 300i ABS


 Remove the front wheel bearing by using the     Bearing
 special tool.

 Special tool:
 Bearing puller                 E00037


 ASSEMBLY

 Install the front wheel bearing by using the
 special tool.

 Special tool:
 Bearing installer              E00014

 Install the distance collar.

 Install the front wheel bearing by using the
 special tool.




 Apply grease to the collar, then install the
 collar onto the wheel.




                                                           14-8
