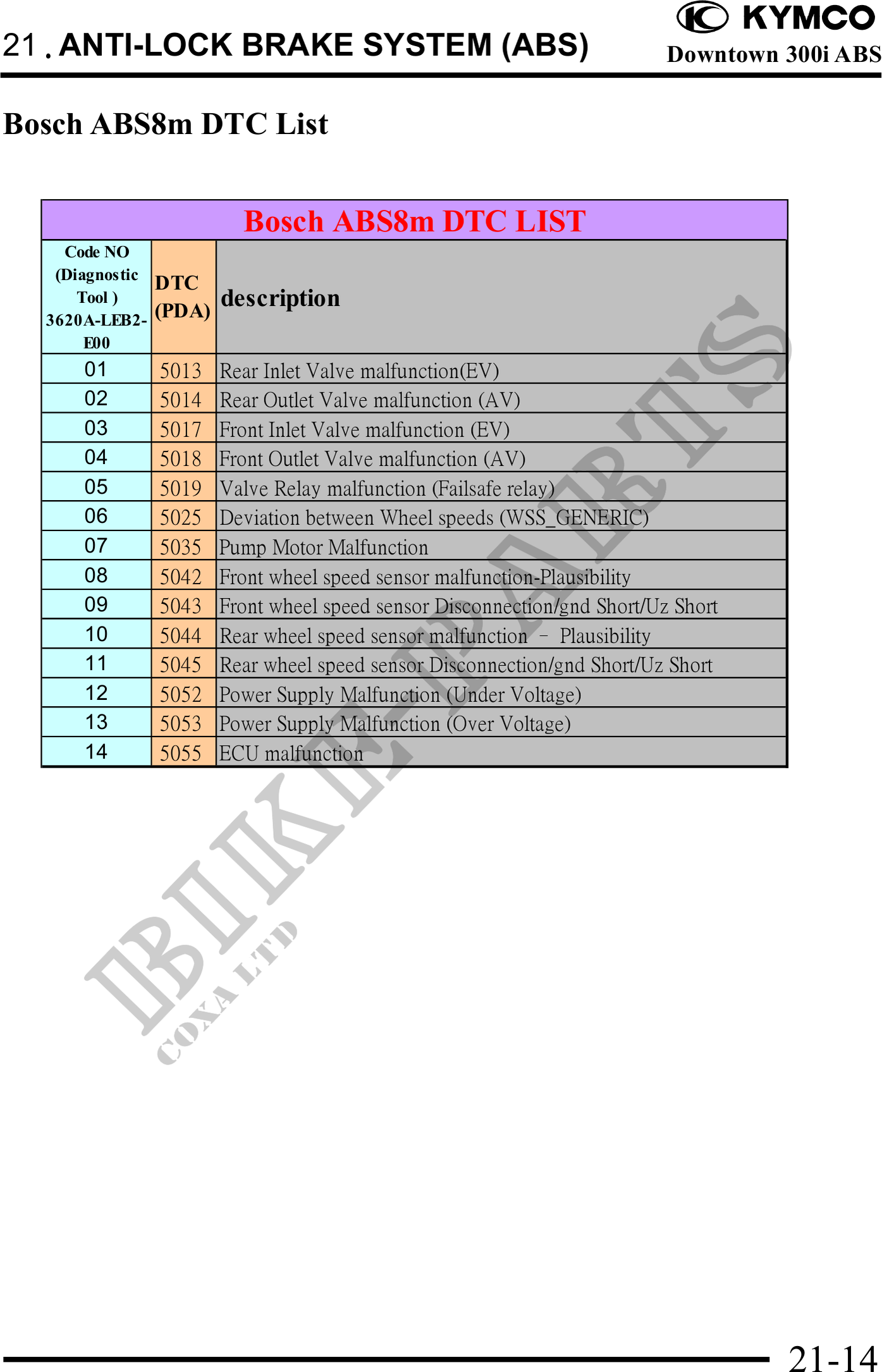

          21.ANTI-LOCK BRAKE SYSTEM (ABS)                                            Downtown 300i ABS

Bosch ABS8m DTC List


                          Bosch ABS8m DTC LIST
    Code NO
   (Diagnostic
                 DTC
      Tool )
                 (PDA)
                       description
  3620A-LEB2-
       E00
      01         5013   Rear Inlet Valve malfunction(EV)
      02         5014   Rear Outlet Valve malfunction (AV)
      03         5017   Front Inlet Valve malfunction (EV)
      04         5018   Front Outlet Valve malfunction (AV)
      05         5019   Valve Relay malfunction (Failsafe relay)
      06         5025   Deviation between Wheel speeds (WSS_GENERIC)
      07         5035   Pump Motor Malfunction
      08         5042   Front wheel speed sensor malfunction-Plausibility
      09         5043   Front wheel speed sensor Disconnection/gnd Short/Uz Short
      10         5044   Rear wheel speed sensor malfunction ­ Plausibility
      11         5045   Rear wheel speed sensor Disconnection/gnd Short/Uz Short
      12         5052   Power Supply Malfunction (Under Voltage)
      13         5053   Power Supply Malfunction (Over Voltage)
      14         5055   ECU malfunction




                                                                                    21-14
