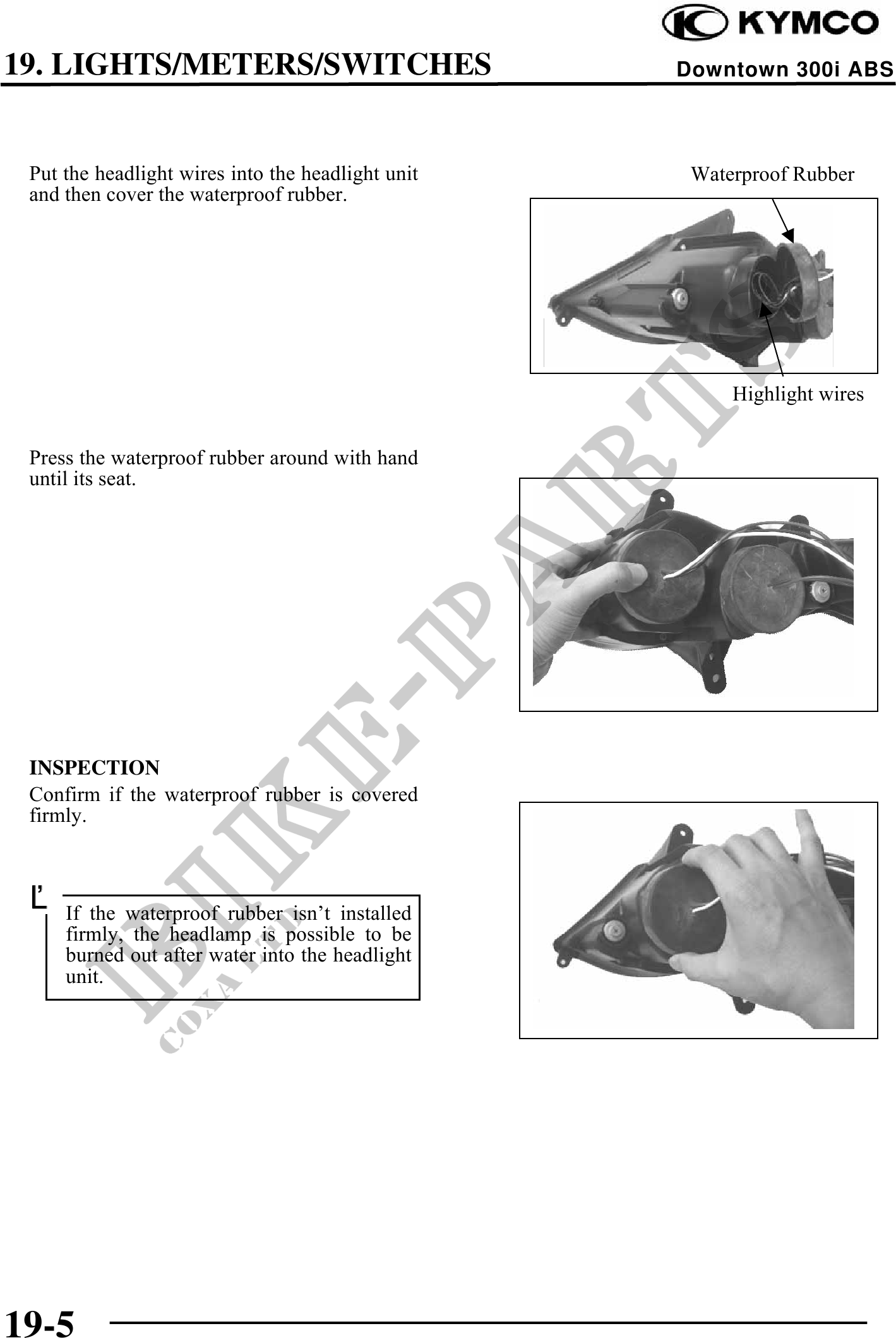

          19. LIGHTS/METERS/SWITCHES                         Downtown 300i ABS



 Put the headlight wires into the headlight unit    Waterproof Rubber
 and then cover the waterproof rubber.




                                                        Highlight wires


 Press the waterproof rubber around with hand
 until its seat.




 INSPECTION
 Confirm if the waterproof rubber is covered
 firmly.



  If    the waterproof rubber isn't installed
     firmly, the headlamp is possible to be
     burned out after water into the headlight
     unit.
