14.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
FRONT SHOCK ABSORBER/STEERING STEM Downtown 300i ABS

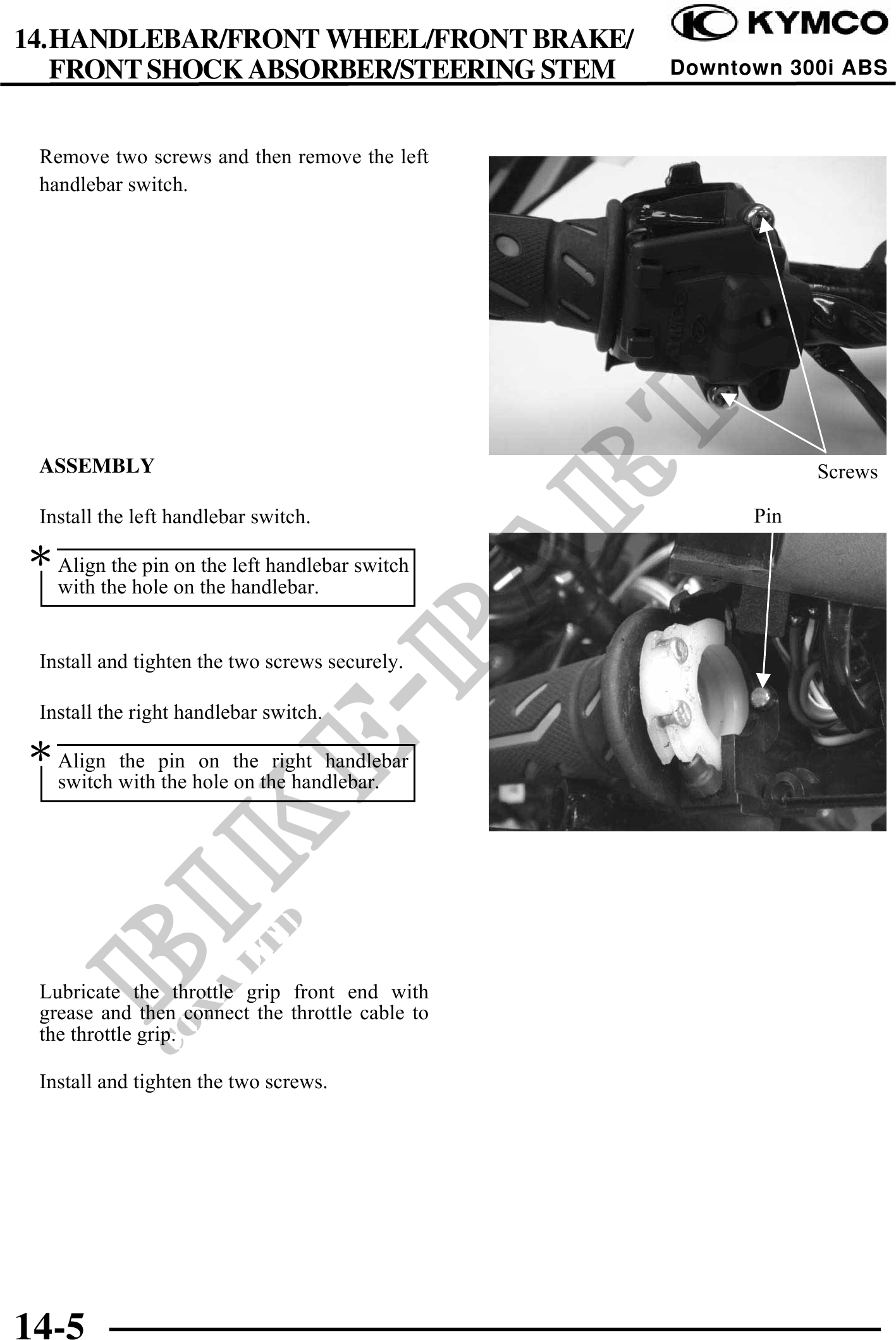

Remove two screws and then remove the left
handlebar switch.
ASSEMBLY Screws
Install the left handlebar switch. Pin
Align the pin on the left handlebar switch
with the hole on the handlebar.
Install and tighten the two screws securely.
Install the right handlebar switch.
Align the pin on the right handlebar
switch with the hole on the handlebar.
Lubricate the throttle grip front end with
grease and then connect the throttle cable to
the throttle grip.
Install and tighten the two screws.
14-5
