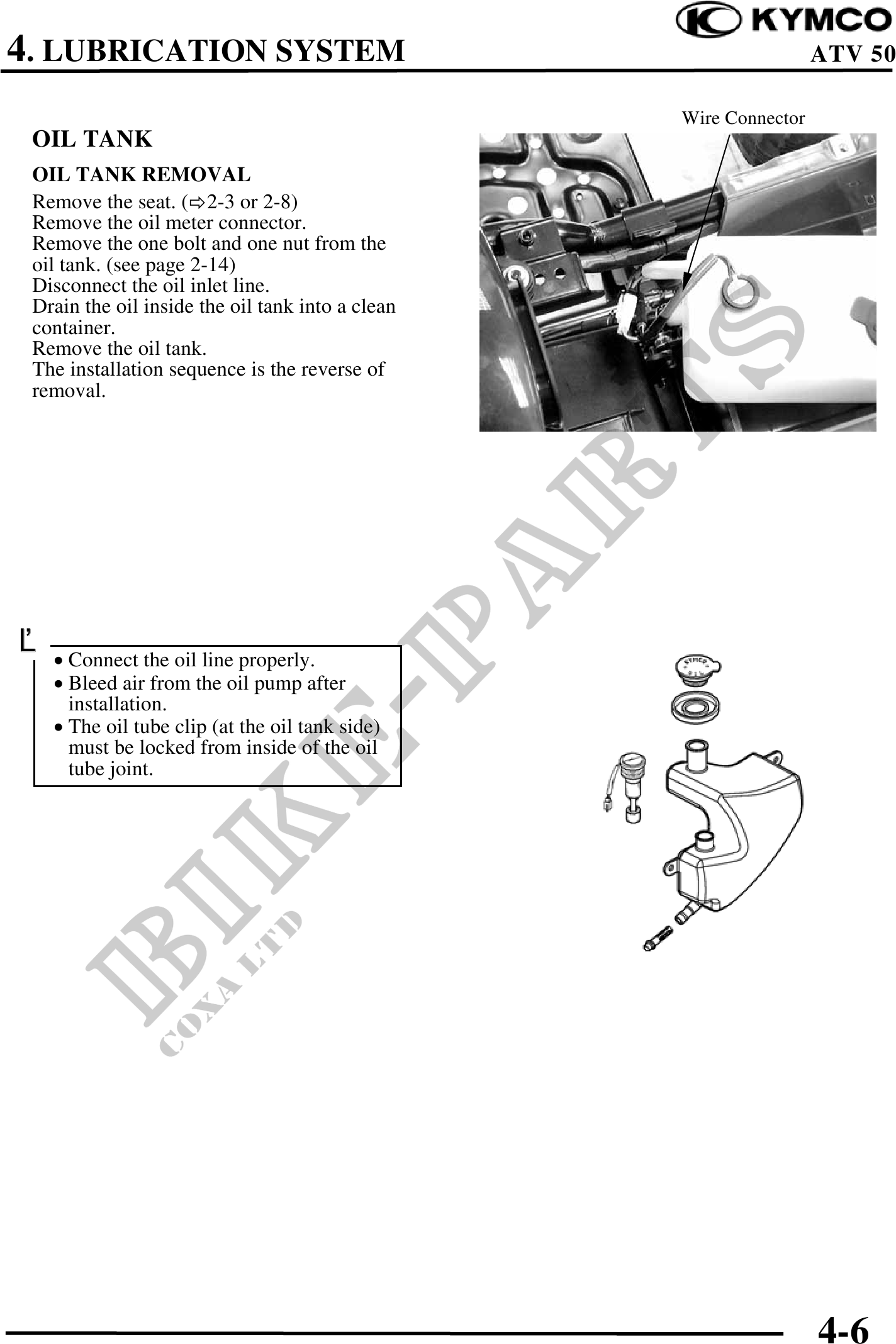

          4. LUBRICATION SYSTEM                                                          ATV 50

                                                              Wire Connector
 OIL TANK
 OIL TANK REMOVAL
 Remove the seat. ( 2-3 or 2-8)
 Remove the oil meter connector.
 Remove the one bolt and one nut from the
 oil tank. (see page 2-14)
 Disconnect the oil inlet line.
 Drain the oil inside the oil tank into a clean
 container.
 Remove the oil tank.
 The installation sequence is the reverse of
 removal.                                         Dowel Pin         Pump Cover




 · Connect the oil line properly.
   · Bleed air from the oil pump after
     installation.
   · The oil tube clip (at the oil tank side)
     must be locked from inside of the oil
     tube joint.




                                                                               4-6
