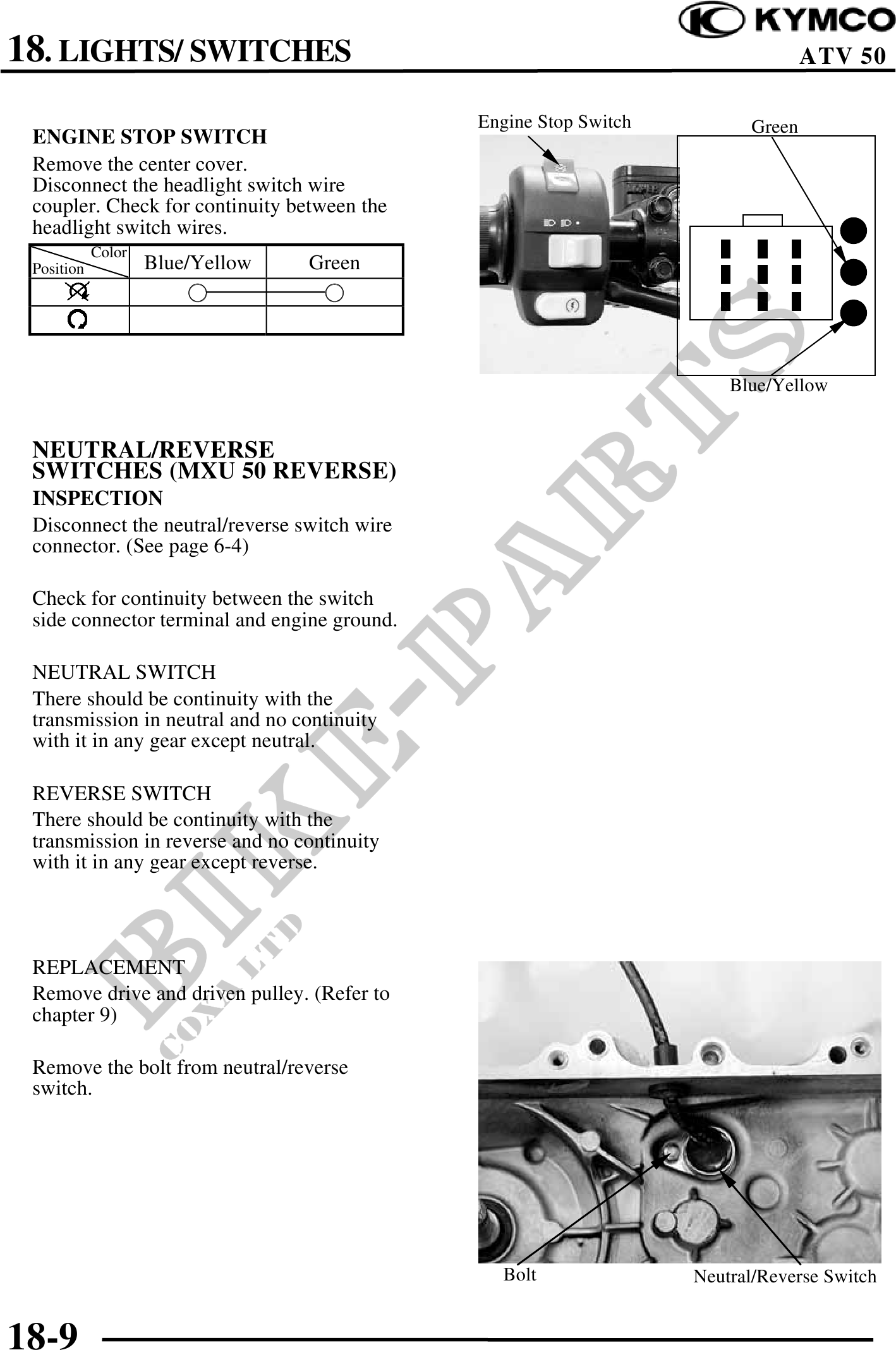

18. LIGHTS/ SWITCHES ATV 50
Engine Stop Switch Green
ENGINE STOP SWITCH
Remove the center cover.
Disconnect the headlight switch wire
coupler. Check for continuity between the
headlight switch wires.
Color
Position Blue/Yellow Green
Blue/Yellow
NEUTRAL/REVERSE
SWITCHES (MXU 50 REVERSE)
INSPECTION
Disconnect the neutral/reverse switch wire
connector. (See page 6-4)
Check for continuity between the switch
side connector terminal and engine ground.
NEUTRAL SWITCH
There should be continuity with the
transmission in neutral and no continuity
with it in any gear except neutral.
REVERSE SWITCH
There should be continuity with the
transmission in reverse and no continuity
with it in any gear except reverse.
REPLACEMENT
Remove drive and driven pulley. (Refer to
chapter 9)
Remove the bolt from neutral/reverse
switch.
Bolt Neutral/Reverse Switch
18-9
