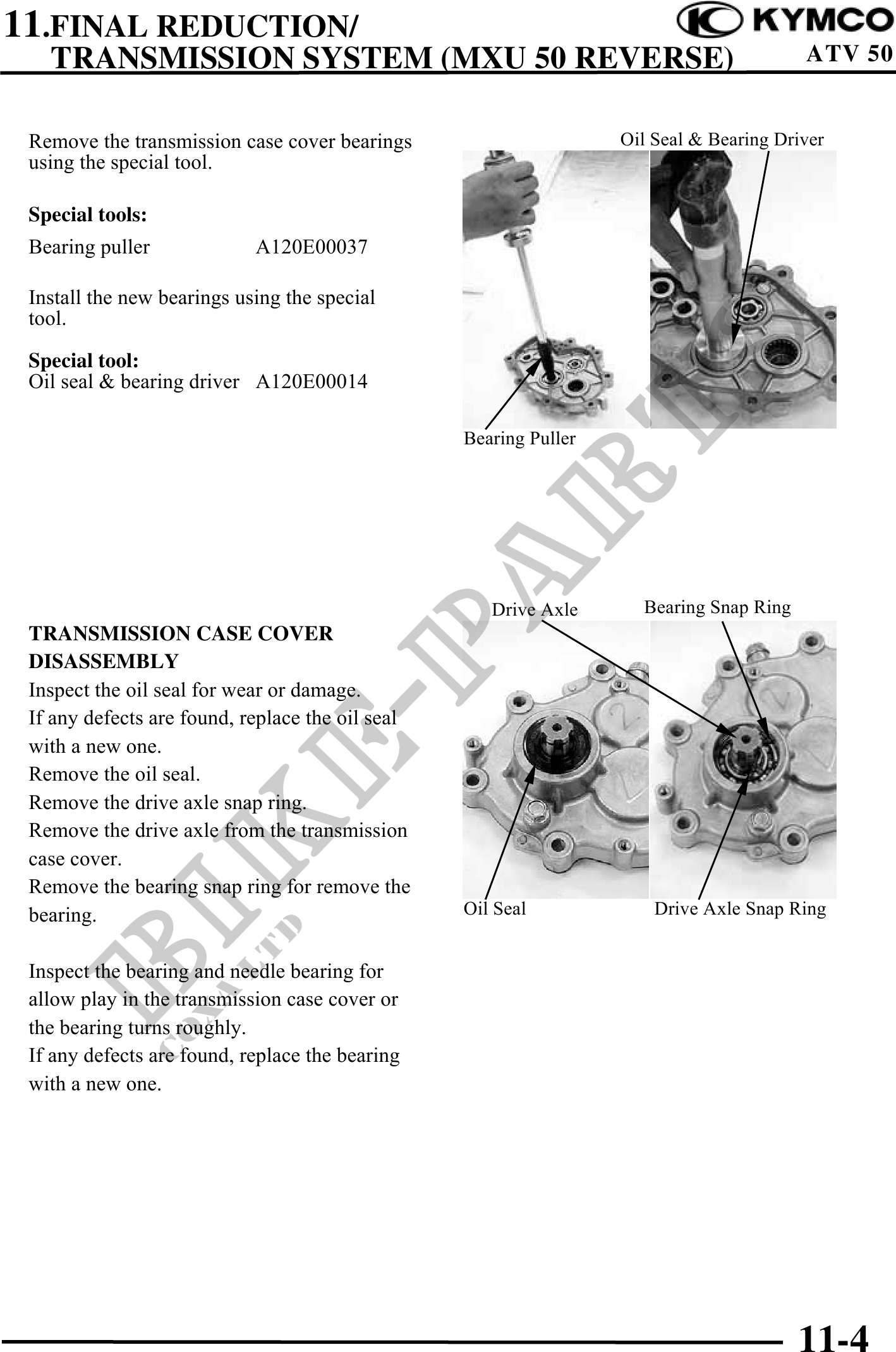

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
Remove the transmission case cover bearings Oil Seal & Bearing Driver
using the special tool.
Special tools:
Bearing puller A120E00037
Install the new bearings using the special
tool.
Special tool:
Oil seal & bearing driver A120E00014
Bearing Puller
Drive Axle Bearing Snap Ring
TRANSMISSION CASE COVER
DISASSEMBLY
Inspect the oil seal for wear or damage.
If any defects are found, replace the oil seal
with a new one.
Remove the oil seal.
Remove the drive axle snap ring.
Remove the drive axle from the transmission
case cover.
Remove the bearing snap ring for remove the
bearing. Oil Seal Drive Axle Snap Ring
Inspect the bearing and needle bearing for
allow play in the transmission case cover or
the bearing turns roughly.
If any defects are found, replace the bearing
with a new one.
