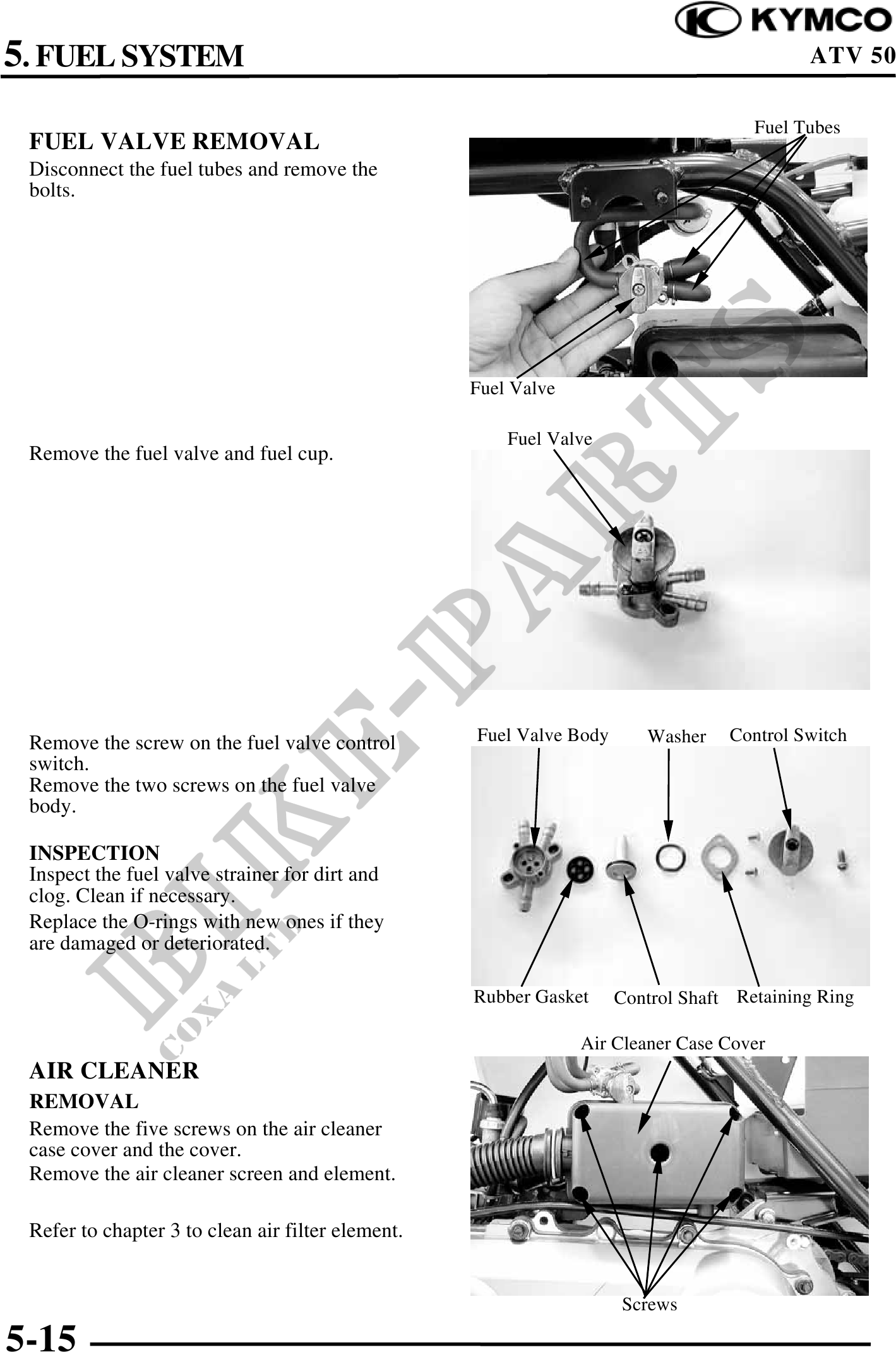

5. FUEL SYSTEM ATV 50
Fuel Tubes
FUEL VALVE REMOVAL
Disconnect the fuel tubes and remove the
bolts.
Fuel Valve
Fuel Valve
Remove the fuel valve and fuel cup.
Remove the screw on the fuel valve control Fuel Valve Body Washer Control Switch
switch.
Remove the two screws on the fuel valve
body.
INSPECTION
Inspect the fuel valve strainer for dirt and
clog. Clean if necessary.
Replace the O-rings with new ones if they
are damaged or deteriorated.
Rubber Gasket Control Shaft Retaining Ring
Air Cleaner Case Cover
AIR CLEANER
REMOVAL
Remove the five screws on the air cleaner
case cover and the cover.
Remove the air cleaner screen and element.
Refer to chapter 3 to clean air filter element.
Screws
