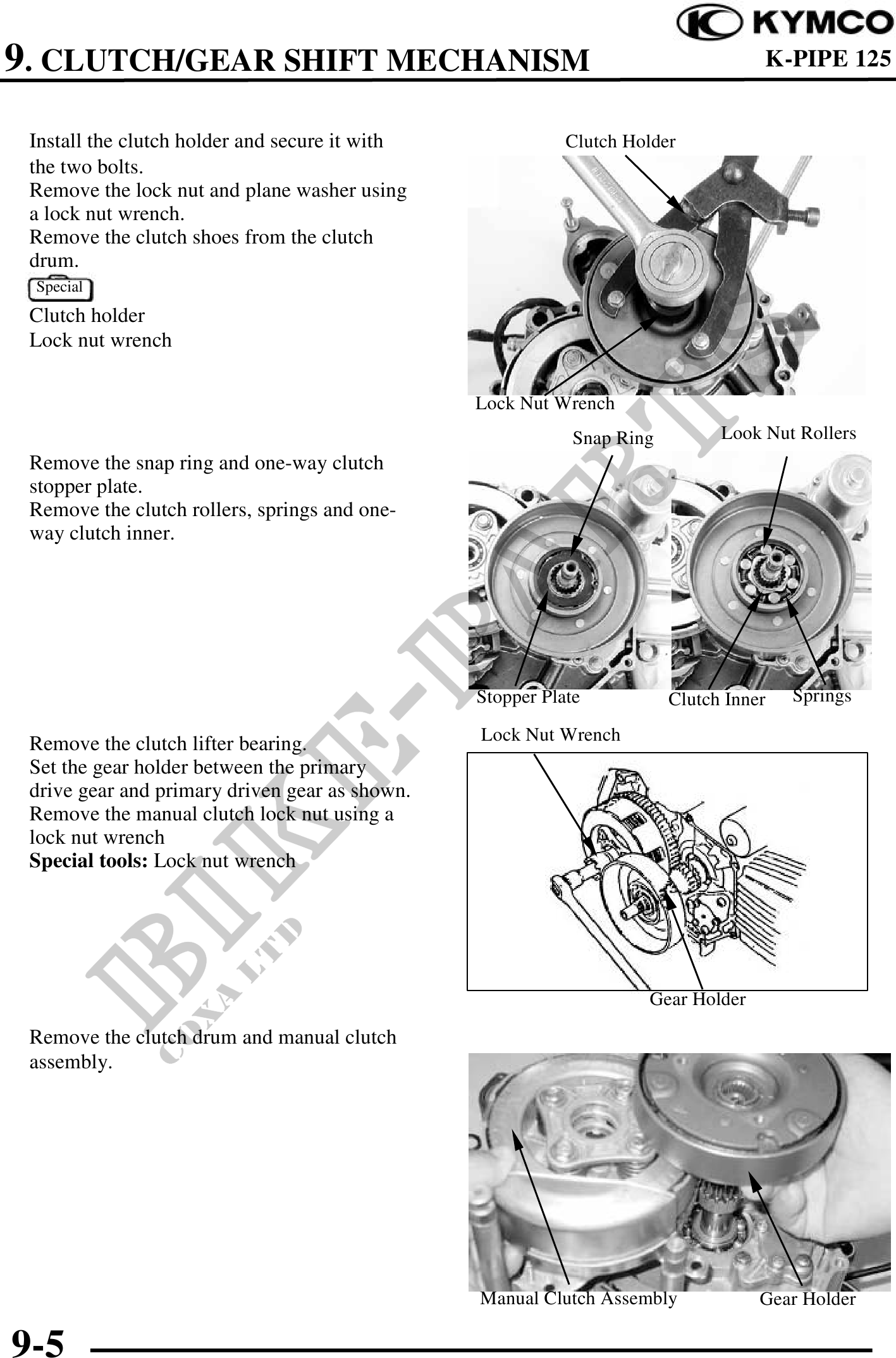

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125 Install the clutch holder and secure it with Clutch Holder the two bolts. Remove the lock nut and plane washer using a lock nut wrench. Remove the clutch shoes from the clutch drum. Special Clutch holder Lock nut wrench Lock Nut Wrench Snap Ring Look Nut Rollers Remove the snap ring and one-way clutch stopper plate. Remove the clutch rollers, springs and one- way clutch inner. Stopper Plate Clutch Inner Springs Remove the clutch lifter bearing. Lock Nut Wrench Set the gear holder between the primary drive gear and primary driven gear as shown. Remove the manual clutch lock nut using a lock nut wrench Special tools: Lock nut wrench Gear Holder Remove the clutch drum and manual clutch assembly. Manual Clutch Assembly Gear Holder 9-5
