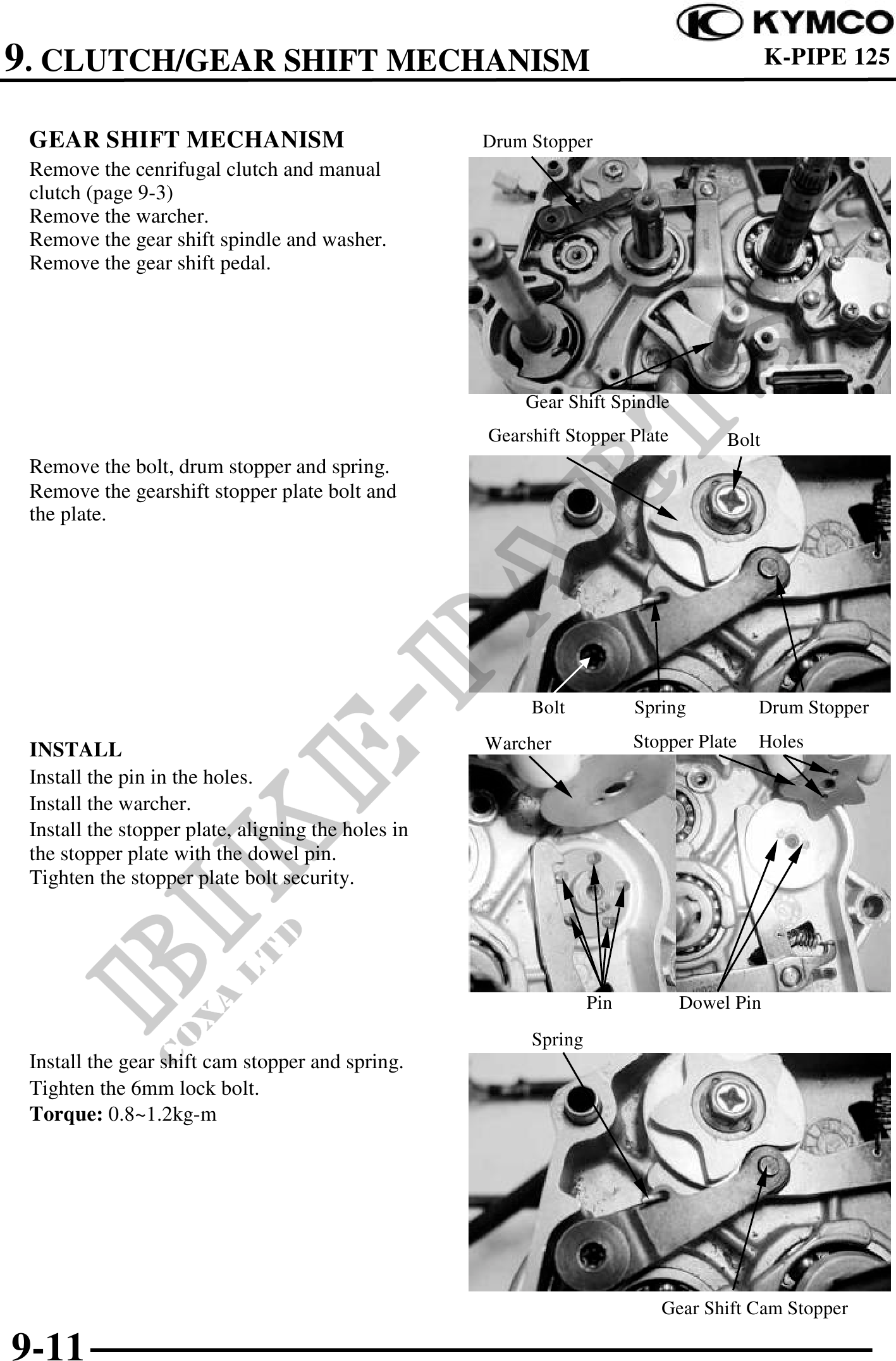

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125 GEAR SHIFT MECHANISM Drum Stopper Remove the cenrifugal clutch and manual clutch (page 9-3) Remove the warcher. Remove the gear shift spindle and washer. Remove the gear shift pedal. Gear Shift Spindle Gearshift Stopper Plate Bolt Remove the bolt, drum stopper and spring. Remove the gearshift stopper plate bolt and the plate. Bolt Spring Drum Stopper INSTALL Warcher Stopper Plate Holes Install the pin in the holes. Install the warcher. Install the stopper plate, aligning the holes in the stopper plate with the dowel pin. Tighten the stopper plate bolt security. Pin Dowel Pin Spring Install the gear shift cam stopper and spring. Tighten the 6mm lock bolt. Torque: 0.8~1.2kg-m Gear Shift Cam Stopper 9-11
