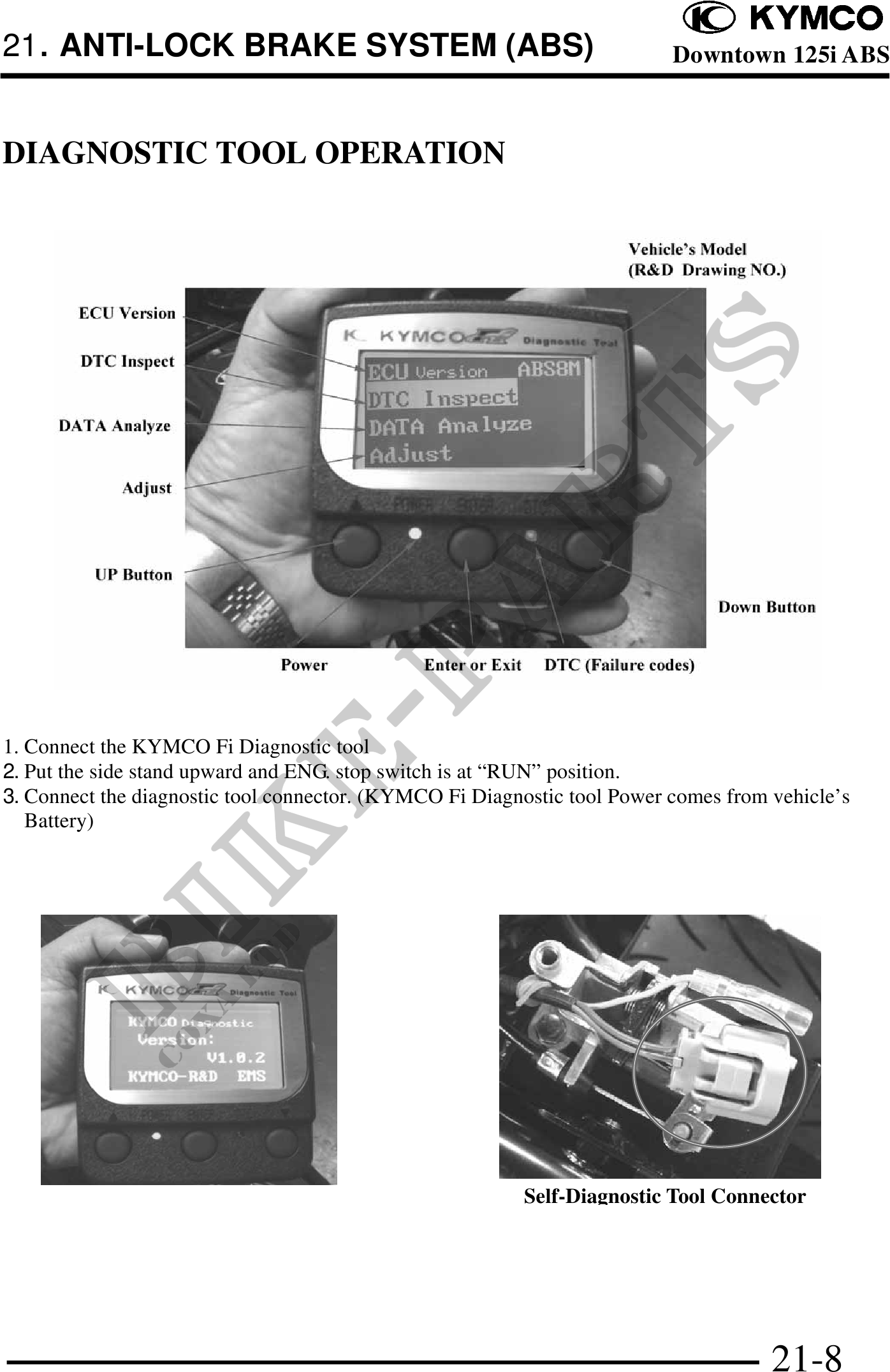

          21.ANTI-LOCK BRAKE SYSTEM (ABS)                                          Downtown 125i ABS



DIAGNOSTIC TOOL OPERATION




1. Connect the KYMCO Fi Diagnostic tool
2.Put the side stand upward and ENG. stop switch is at "RUN" position.
3.Connect the diagnostic tool connector. (KYMCO Fi Diagnostic tool Power comes from vehicle's
   Battery)




                                                         Self-Diagnostic Tool Connector




                                                                                    21-8
