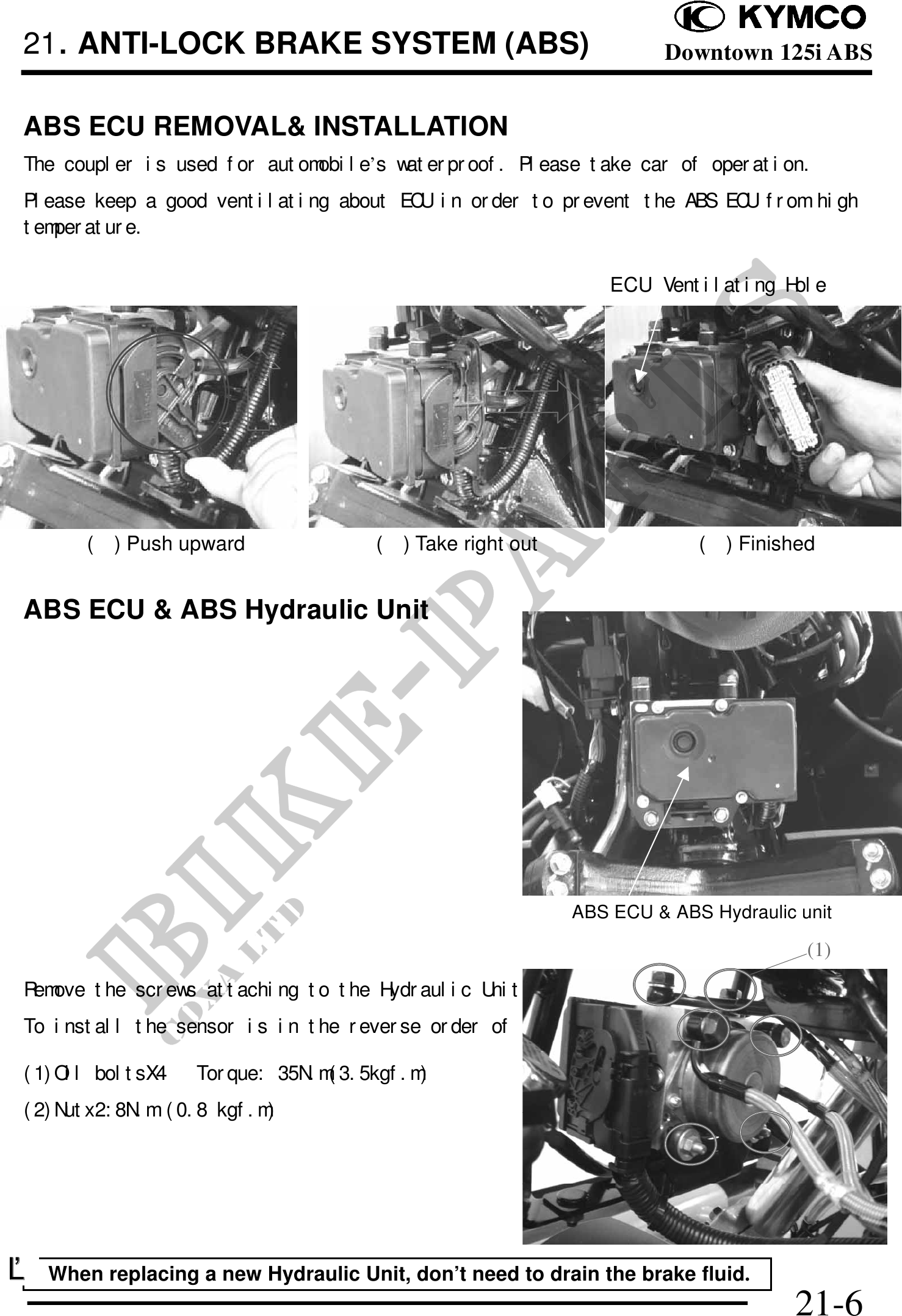

          21.ANTI-LOCK BRAKE SYSTEM (ABS)                                    Downtown 125i ABS


ABS ECU REMOVAL& INSTALLATION
The coupler is used for automobile's waterproof. Please take car of operation.
Please keep a good ventilating about ECU in order to prevent the ABS ECU from high
temperature.

                                                             ECU Ventilating Hole




       () Push upward                () Take right out                () Finished


ABS ECU & ABS Hydraulic Unit




                                                         ABS ECU & ABS Hydraulic unit

                                                                                  (1)
Remove the screws attaching to the Hydraulic Unit.
To install the sensor is in the reverse order of removal.

(1)Oil boltsX4    Torque: 35N.m(3.5kgf.m)
(2)Nutx2:8N.m (0.8 kgf.m)




   When replacing a new Hydraulic Unit, don't need to drain the brake fluid.
                                                                                 21-6
