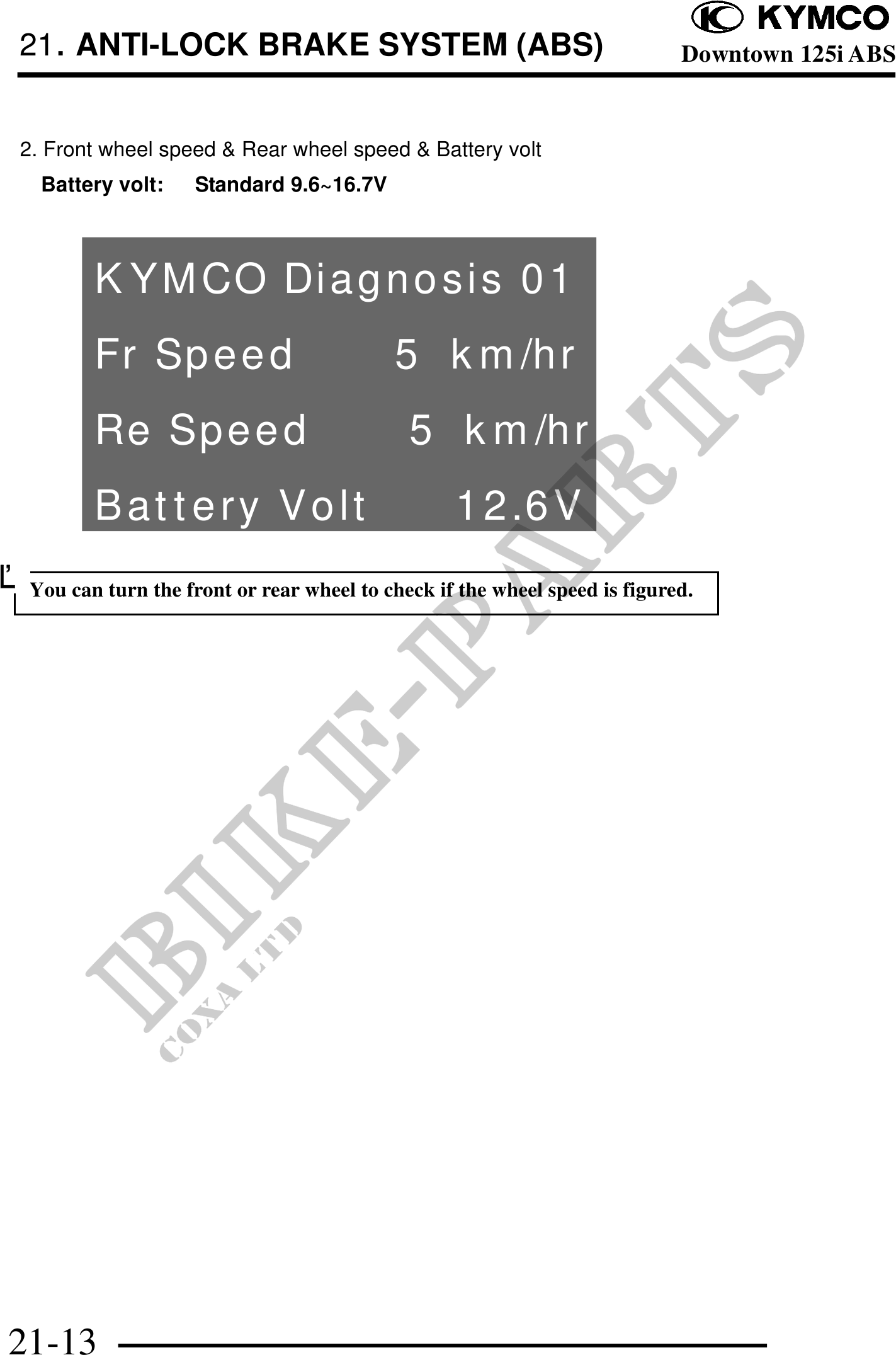

            21.ANTI-LOCK BRAKE SYSTEM (ABS)                                         Downtown 125i ABS


  2. Front wheel speed & Rear wheel speed & Battery volt
    Battery volt:    Standard 9.6~16.7V



          KYMCO Diagnosis 01
          Fr Speed                         5 km/hr
          Re Speed                          5 km/hr
          Battery Volt                            12.6V
You can turn the front or rear wheel to check if the wheel speed is figured.




 21-13
