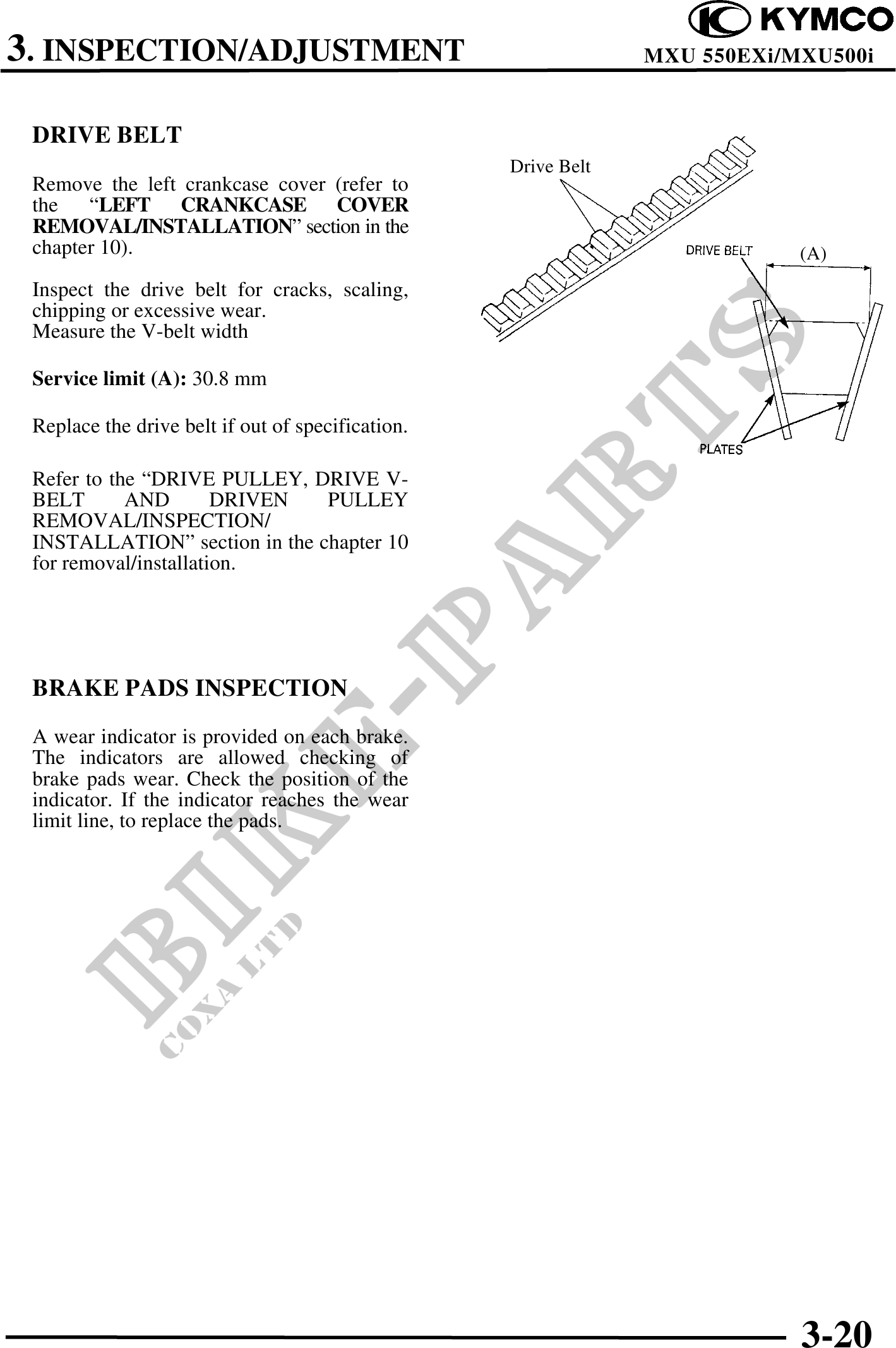

3. INSPECTION/ADJUSTMENT MXU 550EXi/MXU500i
DRIVE BELT
Drive Belt
Remove the left crankcase cover (refer to
the "LEFT CRANKCASE COVER
REMOVAL/INSTALLATION" section in the
chapter 10). (A)
Inspect the drive belt for cracks, scaling,
chipping or excessive wear.
Measure the V-belt width
Service limit (A): 30.8 mm
Replace the drive belt if out of specification.
Refer to the "DRIVE PULLEY, DRIVE V-
BELT AND DRIVEN PULLEY
REMOVAL/INSPECTION/
INSTALLATION" section in the chapter 10
for removal/installation.
BRAKE PADS INSPECTION
A wear indicator is provided on each brake.
The indicators are allowed checking of
brake pads wear. Check the position of the
indicator. If the indicator reaches the wear
limit line, to replace the pads.
3-20
