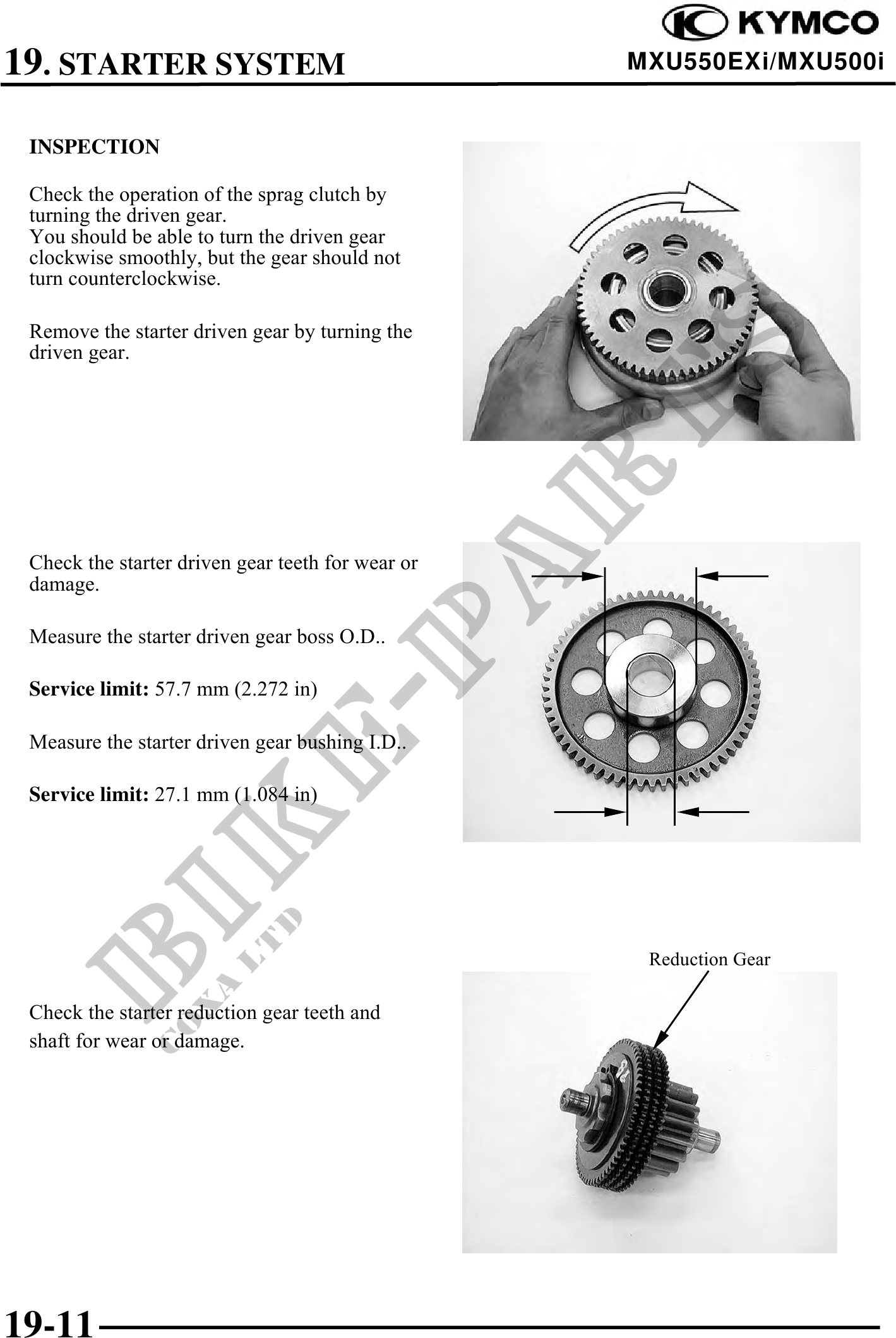

19. STARTER SYSTEM MXU550EXi/MXU500i
INSPECTION
Check the operation of the sprag clutch by
turning the driven gear.
You should be able to turn the driven gear
clockwise smoothly, but the gear should not
turn counterclockwise.
Remove the starter driven gear by turning the
driven gear.
Check the starter driven gear teeth for wear or
damage.
Measure the starter driven gear boss O.D..
Service limit: 57.7 mm (2.272 in)
Measure the starter driven gear bushing I.D..
Service limit: 27.1 mm (1.084 in)
Reduction Gear
Check the starter reduction gear teeth and
shaft for wear or damage.
19-11
