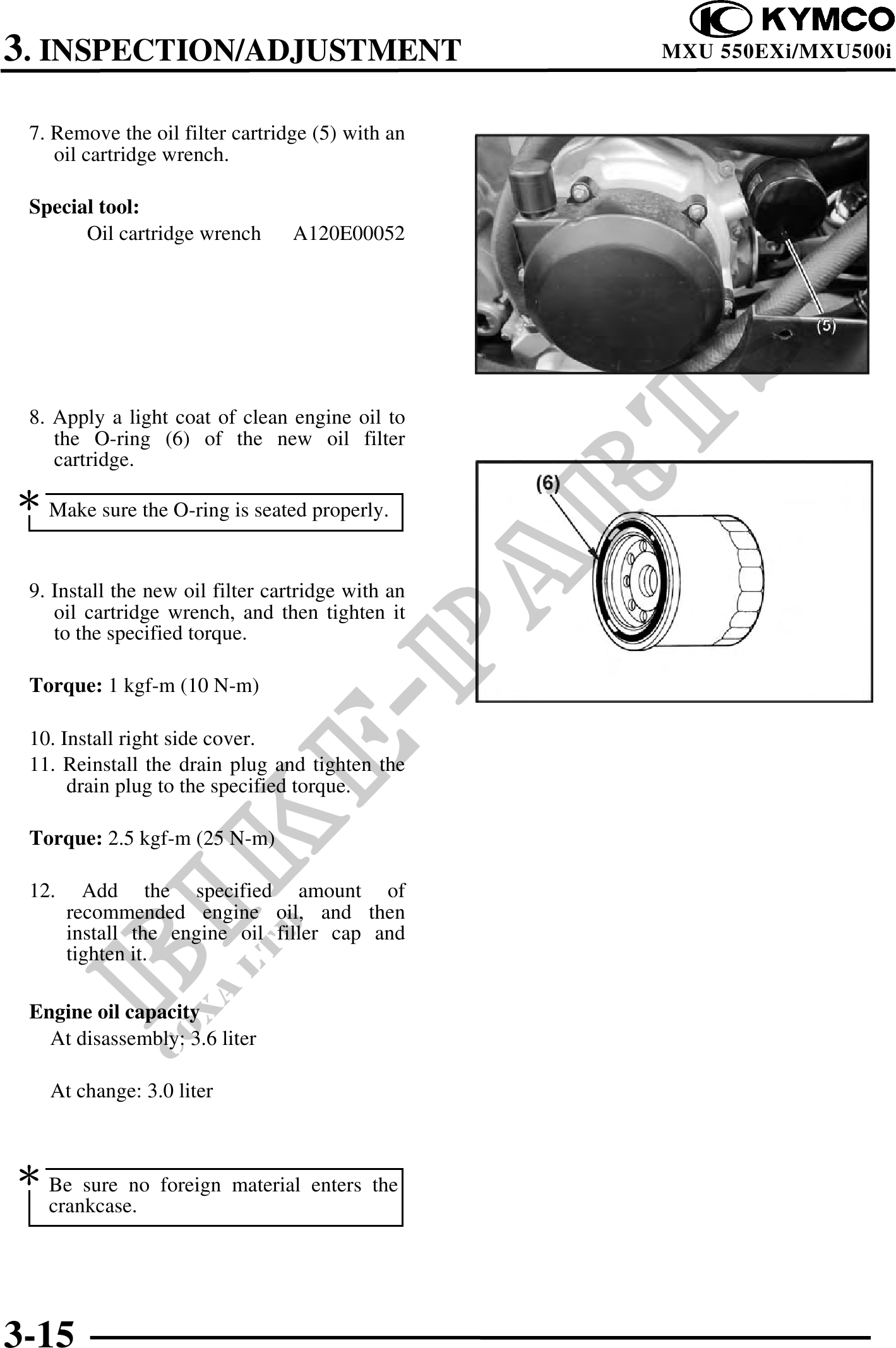

3. INSPECTION/ADJUSTMENT MXU 550EXi/MXU500i
7. Remove the oil filter cartridge (5) with an
oil cartridge wrench.
Special tool:
Oil cartridge wrench A120E00052
8. Apply a light coat of clean engine oil to
the O-ring (6) of the new oil filter
cartridge.
Make sure the O-ring is seated properly.
9. Install the new oil filter cartridge with an
oil cartridge wrench, and then tighten it
to the specified torque.
Torque: 1 kgf-m (10 N-m)
10. Install right side cover.
11. Reinstall the drain plug and tighten the
drain plug to the specified torque.
Torque: 2.5 kgf-m (25 N-m)
12. Add the specified amount of
recommended engine oil, and then
install the engine oil filler cap and
tighten it.
Engine oil capacity
At disassembly: 3.6 liter
At change: 3.0 liter
Be sure no foreign material enters the
crankcase.
3-15
