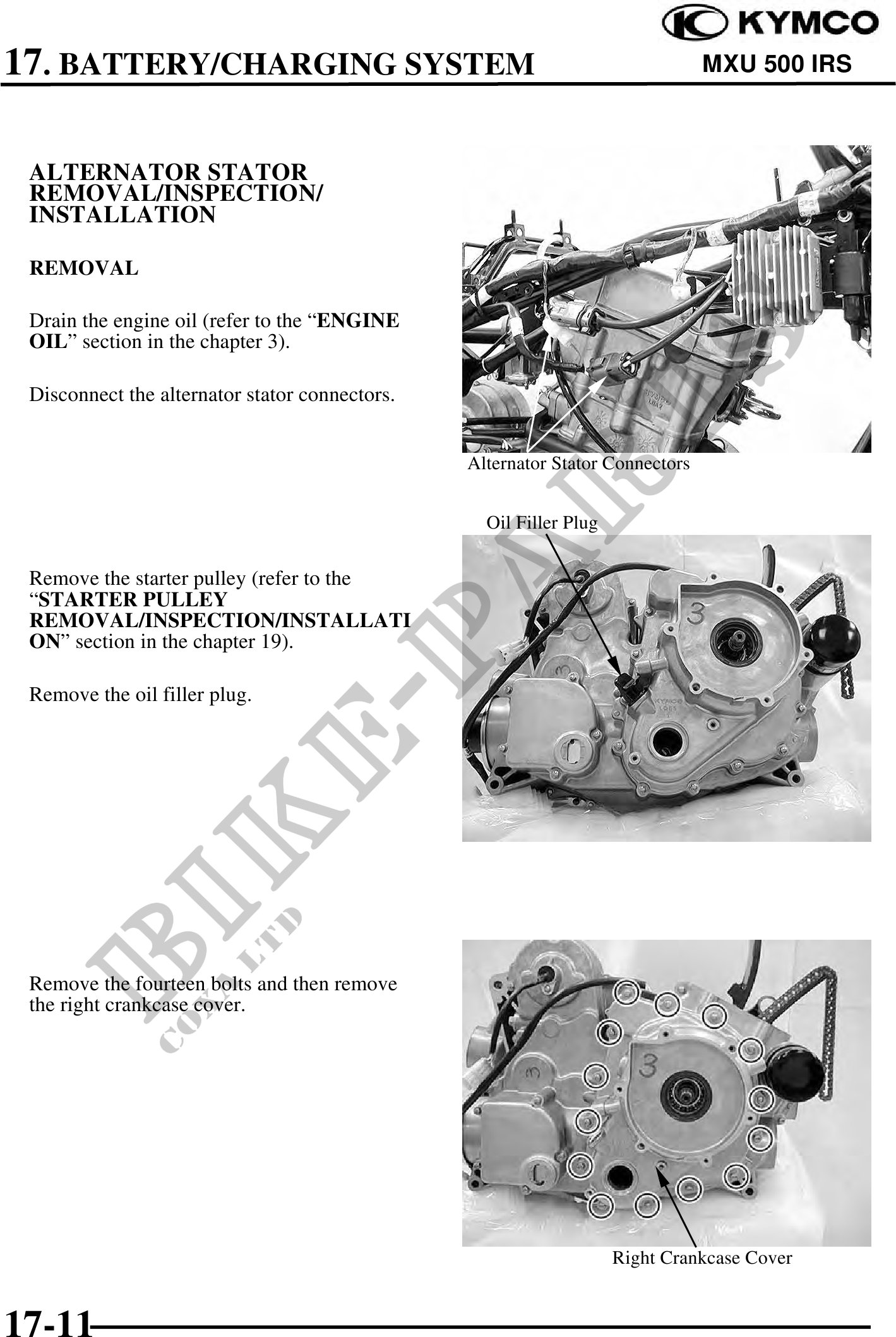

          17. BATTERY/CHARGING SYSTEM                                                    MXU 500 IRS



 ALTERNATOR STATOR
 REMOVAL/INSPECTION/
 INSTALLATION

 REMOVAL

 Drain the engine oil (refer to the "ENGINE
 OIL" section in the chapter 3).

 Disconnect the alternator stator connectors.


                                                Alternator Stator Connectors


                                                  Oil Filler Plug

 Remove the starter pulley (refer to the
 "STARTER PULLEY
 REMOVAL/INSPECTION/INSTALLATI
 ON" section in the chapter 19).

 Remove the oil filler plug.




 Remove the fourteen bolts and then remove
 the right crankcase cover.




                                                                    Right Crankcase Cover


17-11
