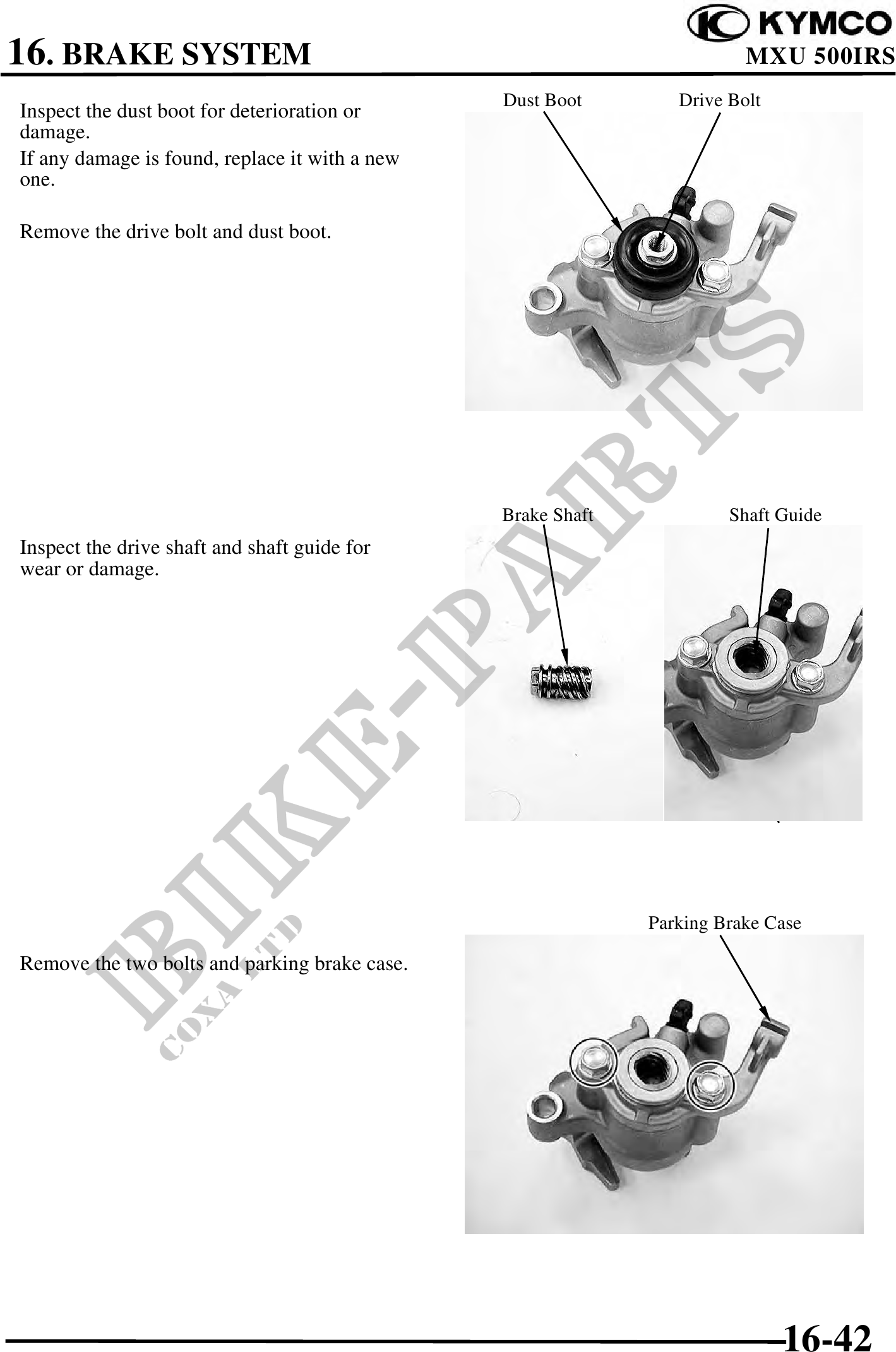

          16. BRAKE SYSTEM                                                         MXU 500IRS
                                                Dust Boot        Drive Bolt
Inspect the dust boot for deterioration or
damage.
If any damage is found, replace it with a new
one.

Remove the drive bolt and dust boot.




                                                Brake Shaft            Shaft Guide
Inspect the drive shaft and shaft guide for
wear or damage.




                                                              Parking Brake Case

Remove the two bolts and parking brake case.




                                                                              16-42
