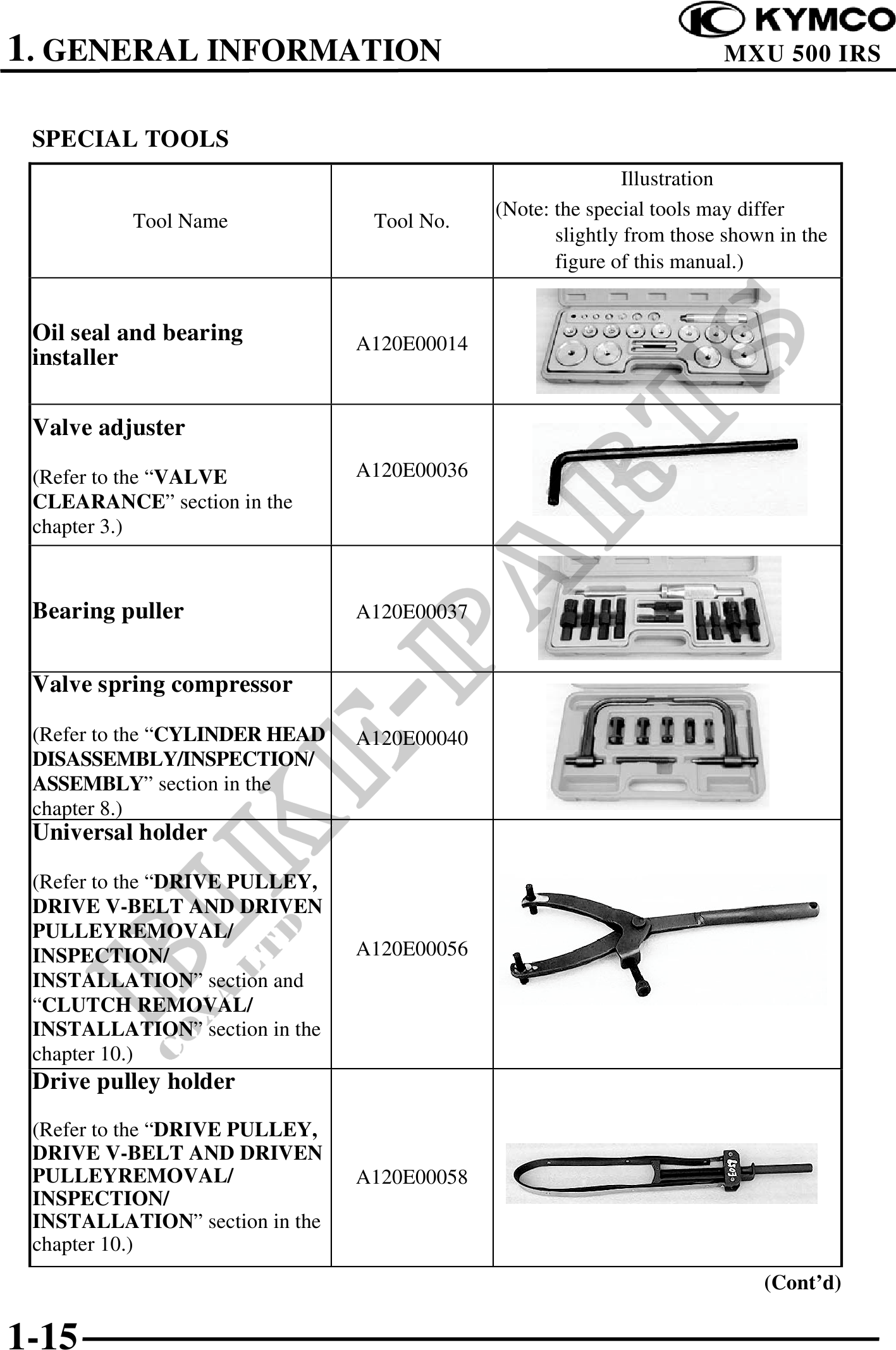

          1. GENERAL INFORMATION                                                 MXU 500 IRS


 SPECIAL TOOLS
                                                            Illustration
                                             (Note: the special tools may differ
          Tool Name              Tool No.
                                                    slightly from those shown in the
                                                    figure of this manual.)


 Oil seal and bearing           A120E00014
 installer

 Valve adjuster

 (Refer to the "VALVE           A120E00036
 CLEARANCE" section in the
 chapter 3.)



 Bearing puller                 A120E00037


 Valve spring compressor
 (Refer to the "CYLINDER HEAD   A120E00040
 DISASSEMBLY/INSPECTION/
 ASSEMBLY" section in the
 chapter 8.)
 Universal holder
 (Refer to the "DRIVE PULLEY,
 DRIVE V-BELT AND DRIVEN
 PULLEYREMOVAL/
 INSPECTION/                    A120E00056
 INSTALLATION" section and
 "CLUTCH REMOVAL/
 INSTALLATION" section in the
 chapter 10.)
 Drive pulley holder
 (Refer to the "DRIVE PULLEY,
 DRIVE V-BELT AND DRIVEN
 PULLEYREMOVAL/                 A120E00058
 INSPECTION/
 INSTALLATION" section in the
 chapter 10.)
                                                                            (Cont'd)

1-15
