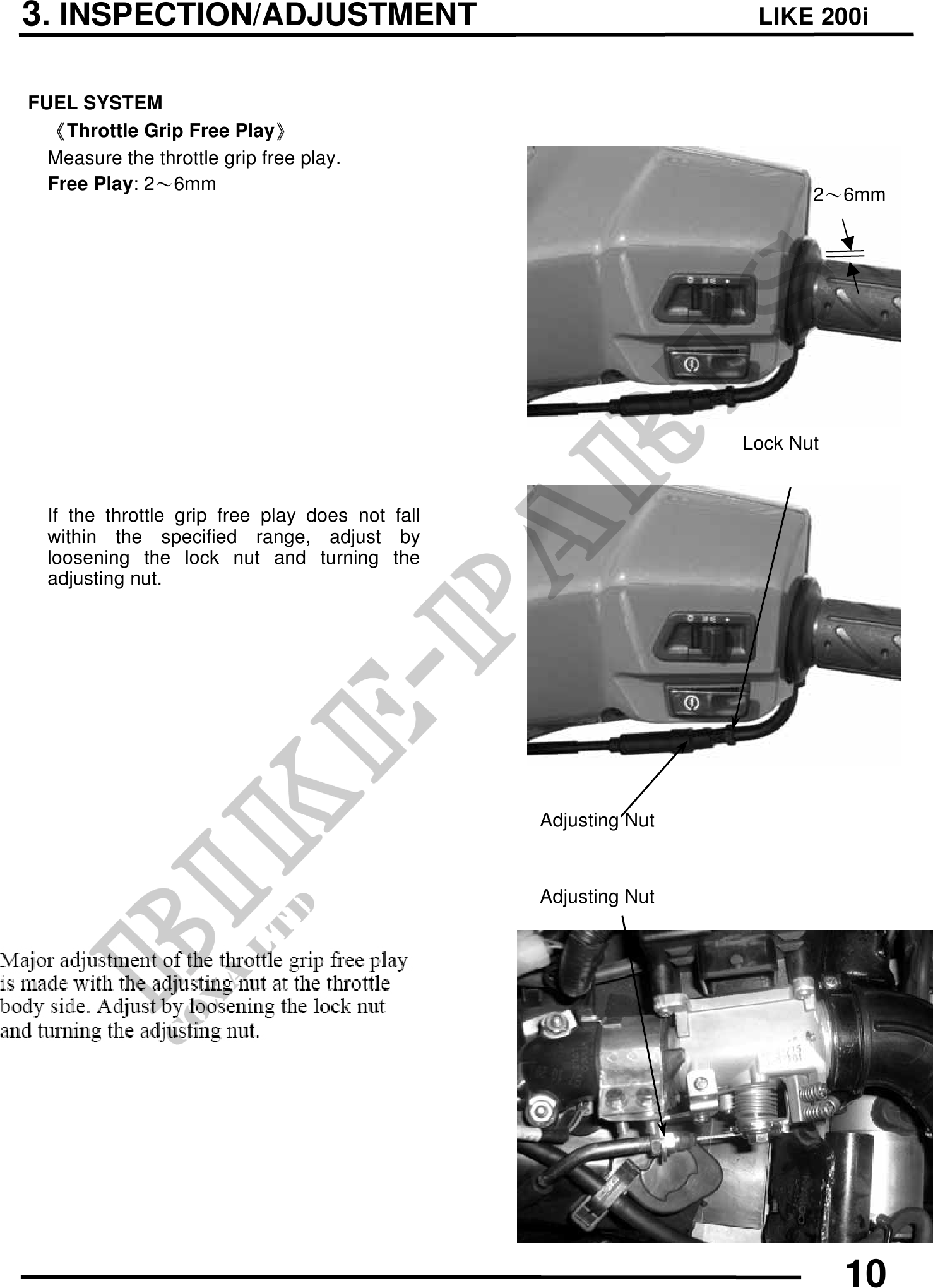

          3. INSPECTION/ADJUSTMENT                                          LIKE 200i


FUEL SYSTEM
  Throttle Grip Free Play
  Measure the throttle grip free play.
  Free Play: 26mm
                                                                        26mm




                                                                 Lock Nut


  If the throttle grip free play does not fall
  within the specified range, adjust by
  loosening the lock nut and turning the
  adjusting nut.




                                                 Adjusting Nut


                                                 Adjusting Nut




                                                                            10
