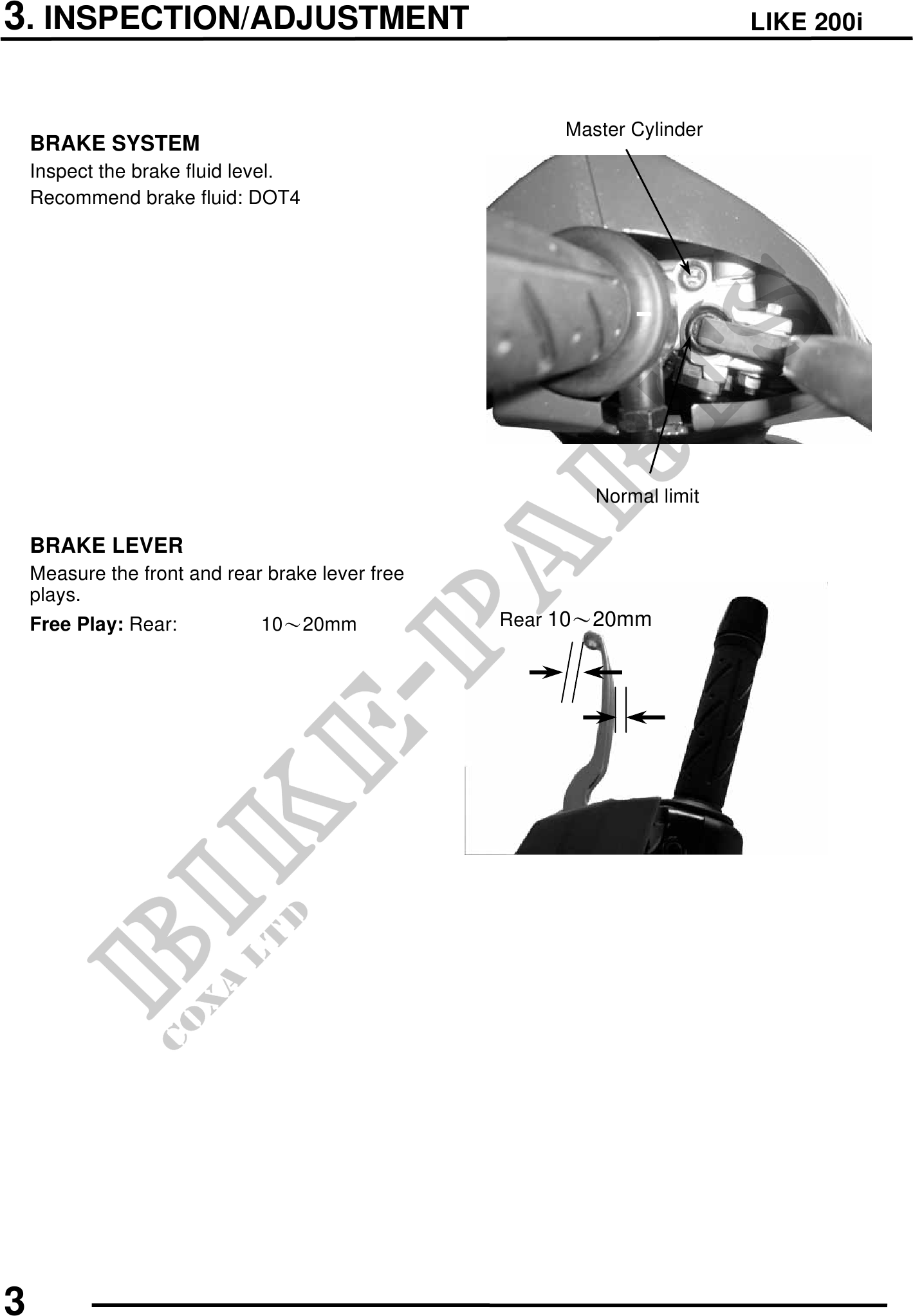

          3. INSPECTION/ADJUSTMENT                                                LIKE 200i



                                                      Master Cylinder
    BRAKE SYSTEM
    Inspect the brake fluid level.
    Recommend brake fluid: DOT4




                                                         Normal limit

    BRAKE LEVER
    Measure the front and rear brake lever free
    plays.
    Free Play: Rear:          1020mm              Rear 1020mm




3
