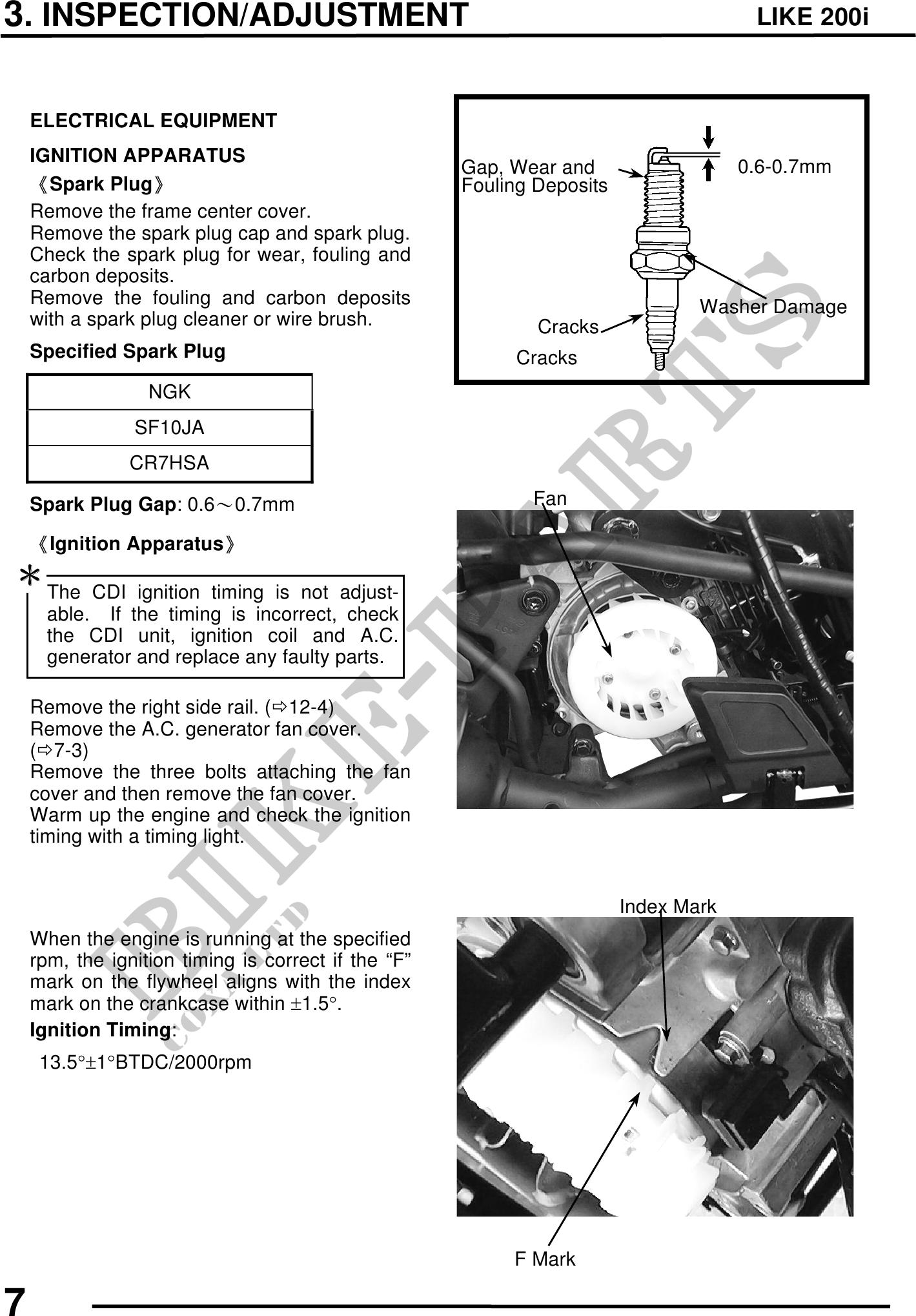

3. INSPECTION/ADJUSTMENT LIKE 200i
ELECTRICAL EQUIPMENT
IGNITION APPARATUS
Gap, Wear and 0.6-0.7mm
Spark Plug Fouling Deposits
Remove the frame center cover.
Remove the spark plug cap and spark plug.
Check the spark plug for wear, fouling and
carbon deposits.
Remove the fouling and carbon deposits Washer Damage
with a spark plug cleaner or wire brush. Cracks
Specified Spark Plug Cracks
NGK
SF10JA
CR7HSA
Spark Plug Gap: 0.60.7mm Fan
Ignition Apparatus
The CDI ignition timing is not adjust-
able. If the timing is incorrect, check
the CDI unit, ignition coil and A.C.
generator and replace any faulty parts.
Remove the right side rail. ( 12-4)
Remove the A.C. generator fan cover.
( 7-3)
Remove the three bolts attaching the fan
cover and then remove the fan cover.
Warm up the engine and check the ignition
timing with a timing light.
Index Mark
When the engine is running at the specified
rpm, the ignition timing is correct if the "F"
mark on the flywheel aligns with the index
mark on the crankcase within 1.5°.
Ignition Timing:
13.5°1°BTDC/2000rpm
F Mark
7
