          2. GENERAL INFORMATION                                                               LIKE 200i

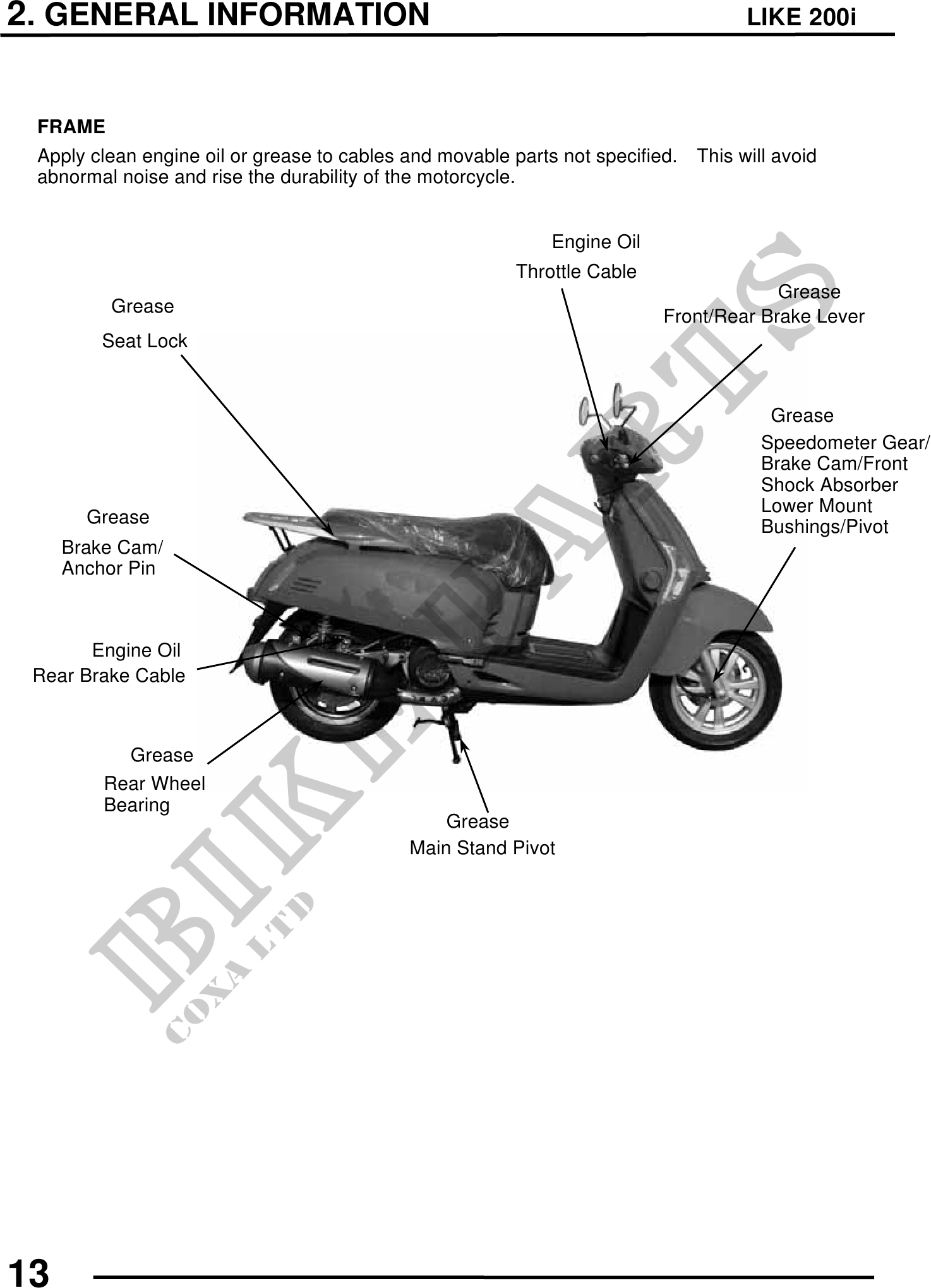

 FRAME
 Apply clean engine oil or grease to cables and movable parts not specified.   This will avoid
 abnormal noise and rise the durability of the motorcycle.


                                                             Engine Oil
                                                         Throttle Cable
                                                                                       Grease
         Grease
                                                                          Front/Rear Brake Lever
        Seat Lock


                                                                                        Grease
                                                                                       Speedometer Gear/
                                                                                       Brake Cam/Front
                                                                                       Shock Absorber
                                                                                       Lower Mount
       Grease                                                                          Bushings/Pivot
     Brake Cam/
     Anchor Pin



       Engine Oil
 Rear Brake Cable



           Grease
         Rear Wheel
         Bearing
                                                Grease
                                            Main Stand Pivot




13
