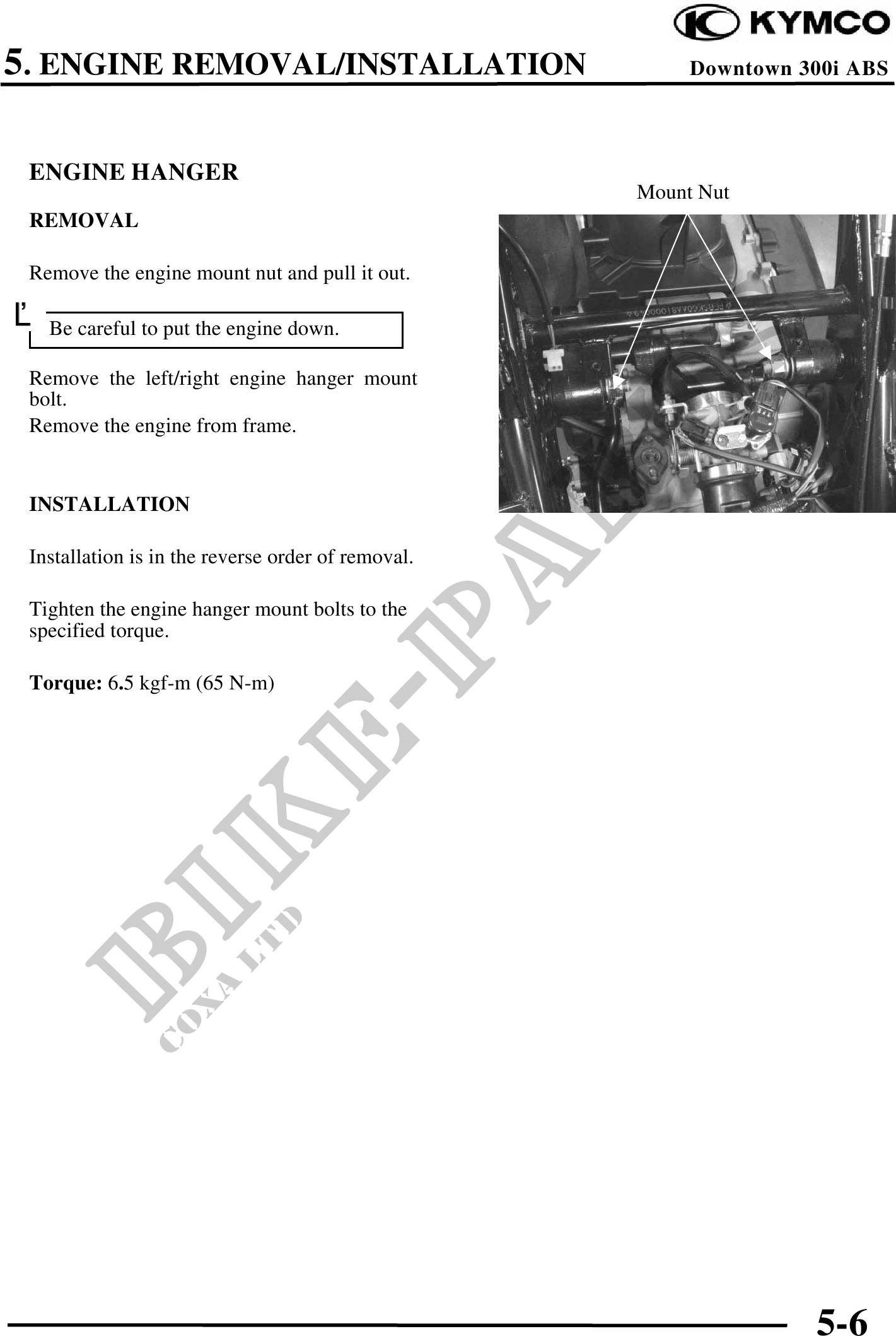

          5. ENGINE REMOVAL/INSTALLATION                           Downtown 300i ABS



 ENGINE HANGER
                                                    Mount Nut
 REMOVAL

 Remove the engine mount nut and pull it out.

 Be careful to put the engine down.
 Remove the left/right engine hanger mount
 bolt.
 Remove the engine from frame.


 INSTALLATION

 Installation is in the reverse order of removal.

 Tighten the engine hanger mount bolts to the
 specified torque.

 Torque: 6.5 kgf-m (65 N-m)




                                                                   5-6
