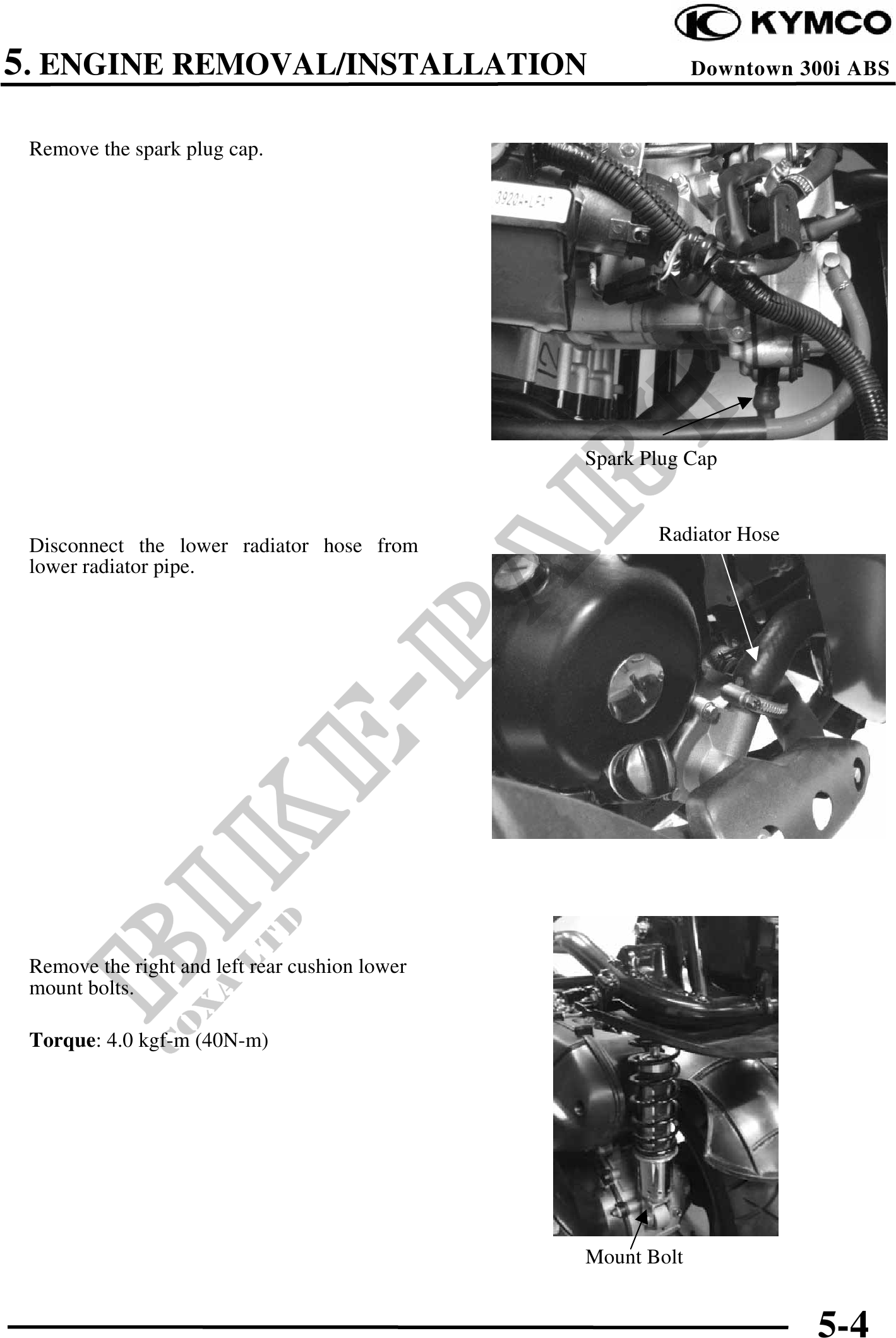

          5. ENGINE REMOVAL/INSTALLATION                               Downtown 300i ABS


 Remove the spark plug cap.




                                                Spark Plug Cap


                                                       Radiator Hose
 Disconnect the lower radiator hose from
 lower radiator pipe.




 Remove the right and left rear cushion lower
 mount bolts.

 Torque: 4.0 kgf-m (40N-m)




                                                Mount Bolt


                                                                       5-4
