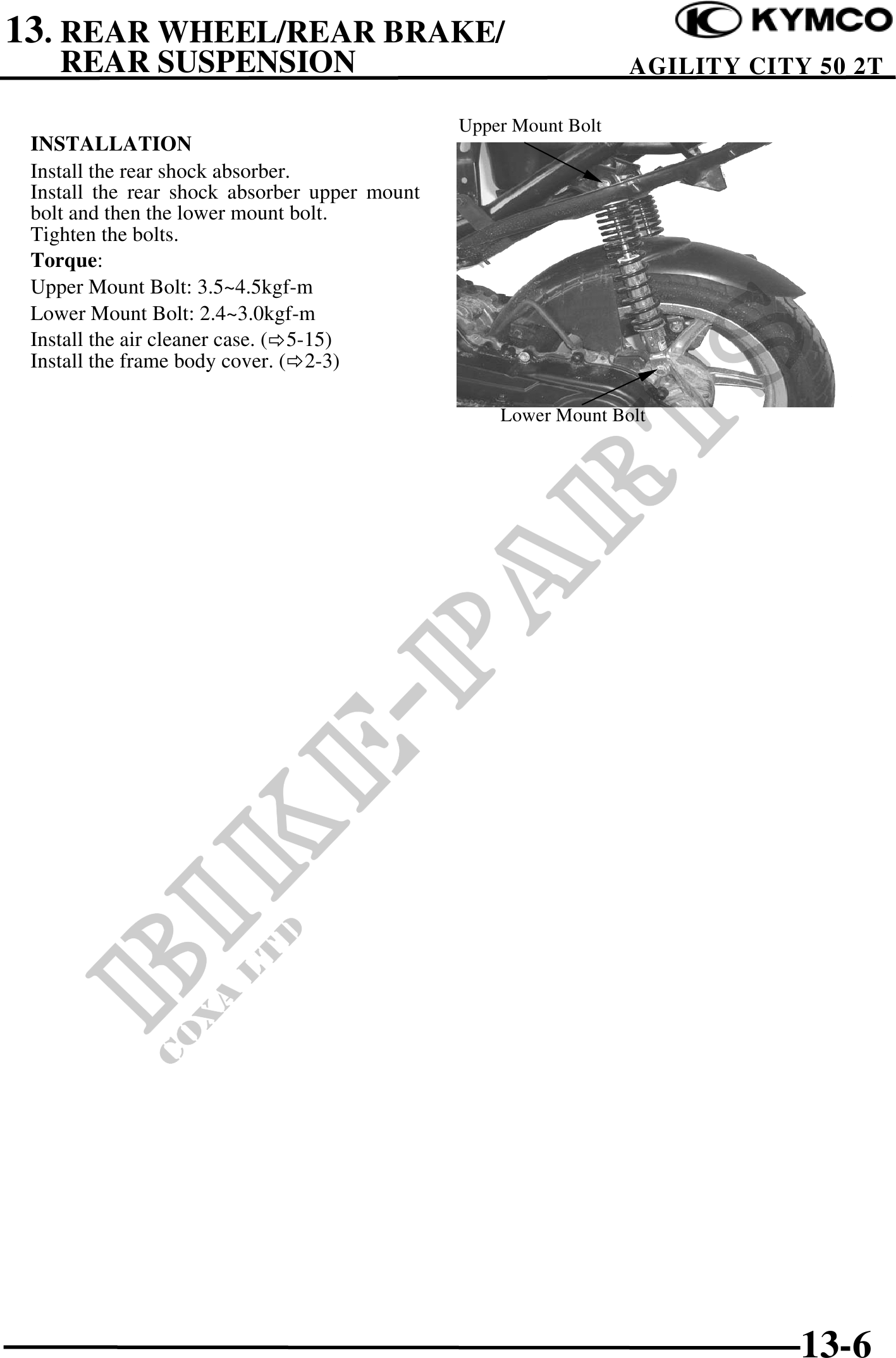

          13. REAR WHEEL/REAR BRAKE/
    REAR SUSPENSION                                               AGILITY CITY 50 2T

                                               Upper Mount Bolt
 INSTALLATION
 Install the rear shock absorber.
 Install the rear shock absorber upper mount
 bolt and then the lower mount bolt.
 Tighten the bolts.
 Torque:
 Upper Mount Bolt: 3.5~4.5kgf-m
 Lower Mount Bolt: 2.4~3.0kgf-m
 Install the air cleaner case. ( 5-15)
 Install the frame body cover. ( 2-3)

                                                   Lower Mount Bolt




                                                                              13-6
