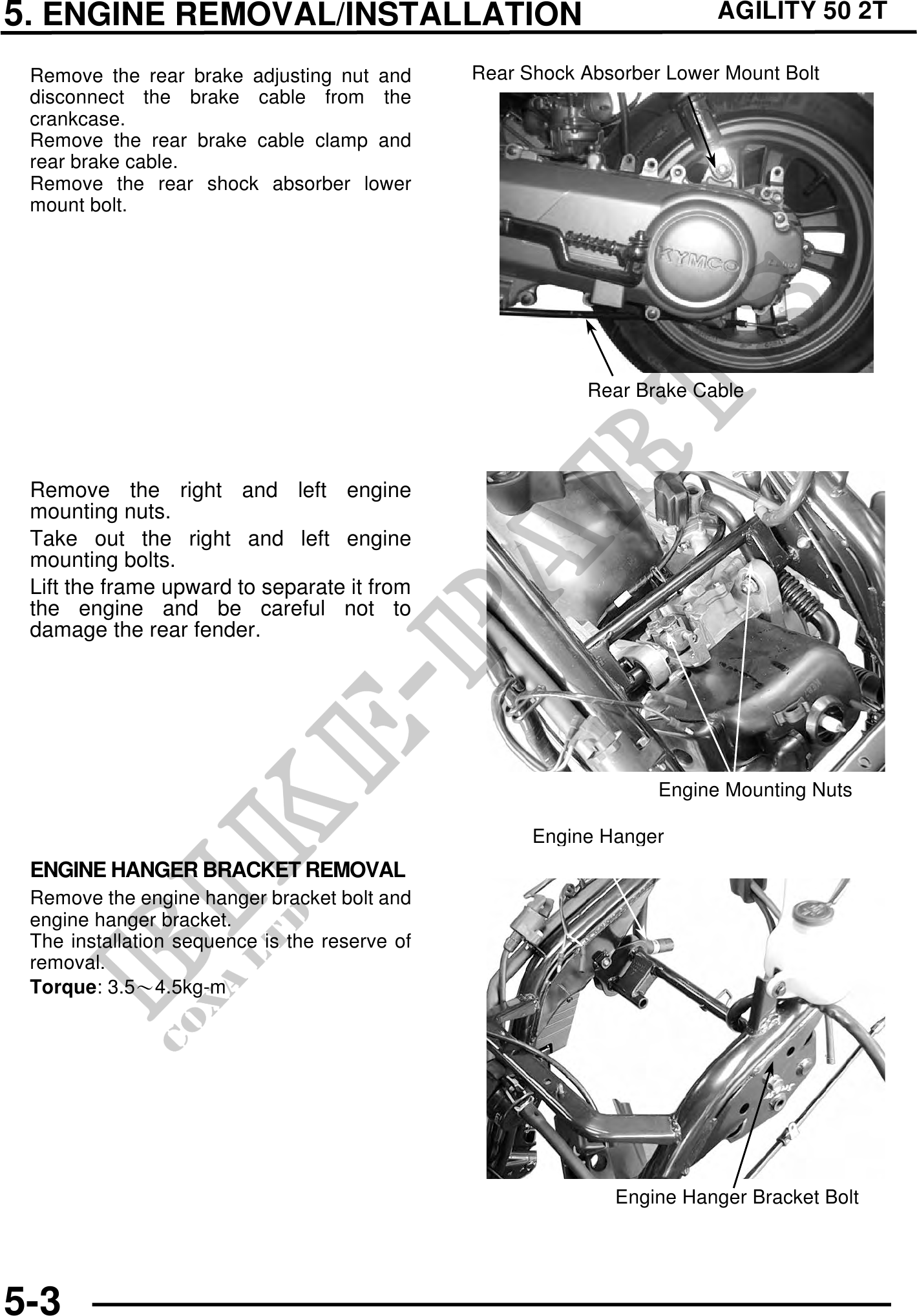

          5. ENGINE REMOVAL/INSTALLATION                                          AGILITY 50 2T

 Remove the rear brake adjusting nut and       Rear Shock Absorber Lower Mount Bolt
 disconnect the brake cable from the
 crankcase.
 Remove the rear brake cable clamp and
 rear brake cable.
 Remove the rear shock absorber lower
 mount bolt.




                                                          Rear Brake Cable




 Remove the right and left engine
 mounting nuts.
 Take out the right and left engine
 mounting bolts.
 Lift the frame upward to separate it from
 the engine and be careful not to
 damage the rear fender.




                                                                  Engine Mounting Nuts

                                                     Engine Hanger
 ENGINE HANGER BRACKET REMOVAL
 Remove the engine hanger bracket bolt and
 engine hanger bracket.
 The installation sequence is the reserve of
 removal.
 Torque: 3.54.5kg-m




                                                             Engine Hanger Bracket Bolt




5-3
