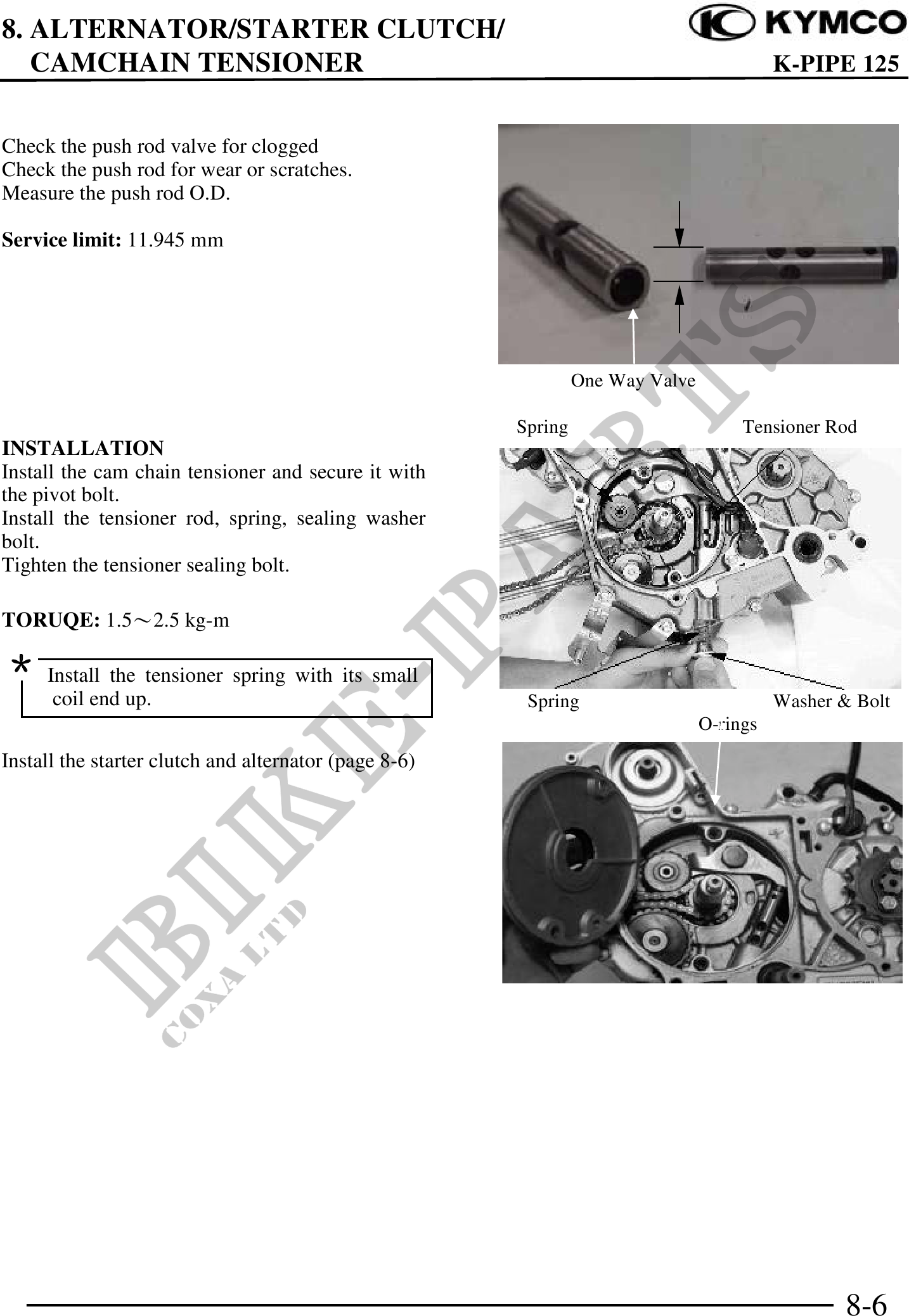

8. ALTERNATOR/STARTER CLUTCH/
CAMCHAIN TENSIONER K-PIPE 125
Check the push rod valve for clogged
Check the push rod for wear or scratches.
Measure the push rod O.D.
Service limit: 11.945 mm
One Way Valve
Spring Tensioner Rod
INSTALLATION
Install the cam chain tensioner and secure it with
the pivot bolt.
Install the tensioner rod, spring, sealing washer
bolt.
Tighten the tensioner sealing bolt.
TORUQE: 1.52.5 kg-m
Install the tensioner spring with its small
coil end up. Spring Washer & Bolt
O-rings
Install the starter clutch and alternator (page 8-6)
8-6
