11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 125

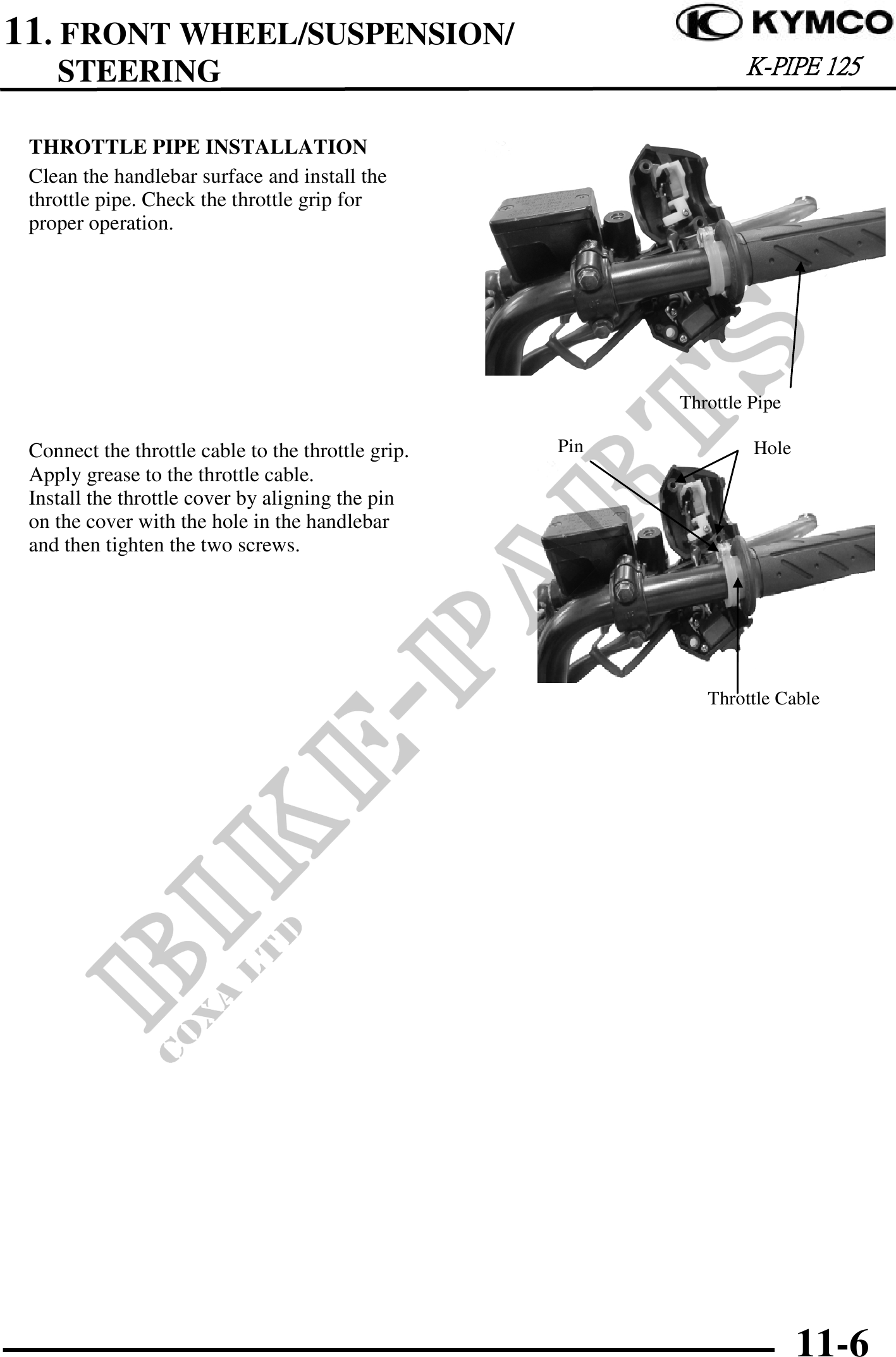

THROTTLE PIPE INSTALLATION
Clean the handlebar surface and install the
throttle pipe. Check the throttle grip for
proper operation.
Throttle Pipe
Connect the throttle cable to the throttle grip. Pin Hole
Apply grease to the throttle cable.
Install the throttle cover by aligning the pin
on the cover with the hole in the handlebar
and then tighten the two screws.
Throttle Cable
11-6
