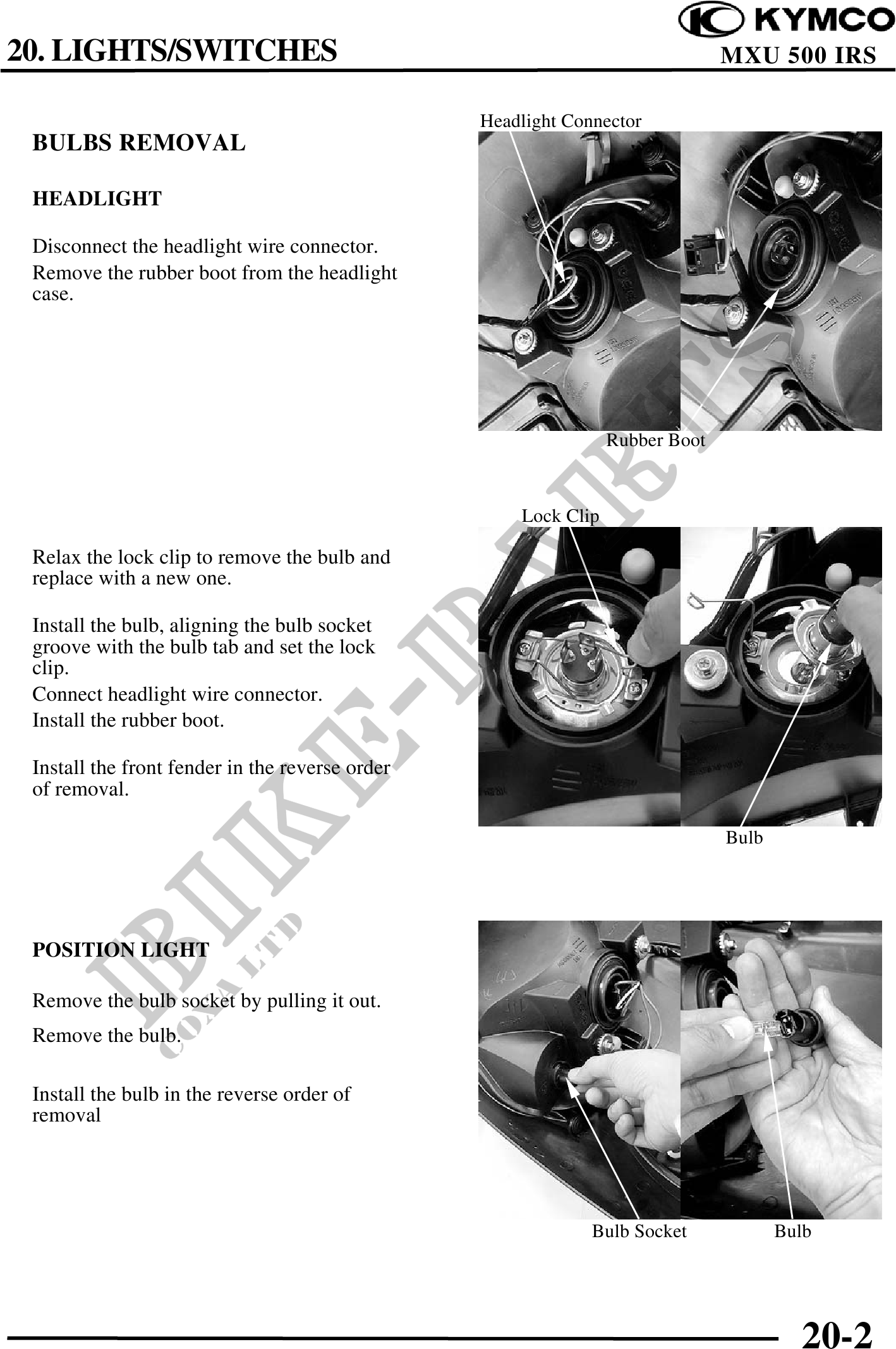

          20. LIGHTS/SWITCHES                                                            MXU 500 IRS

                                                 Headlight Connector
 BULBS REMOVAL

 HEADLIGHT

 Disconnect the headlight wire connector.
 Remove the rubber boot from the headlight
 case.




                                                                 Rubber Boot


                                                     Lock Clip

 Relax the lock clip to remove the bulb and
 replace with a new one.

 Install the bulb, aligning the bulb socket
 groove with the bulb tab and set the lock
 clip.
 Connect headlight wire connector.
 Install the rubber boot.

 Install the front fender in the reverse order
 of removal.

                                                                               Bulb




 POSITION LIGHT

 Remove the bulb socket by pulling it out.
 Remove the bulb.

 Install the bulb in the reverse order of
 removal




                                                              Bulb Socket             Bulb




                                                                                        20-2
