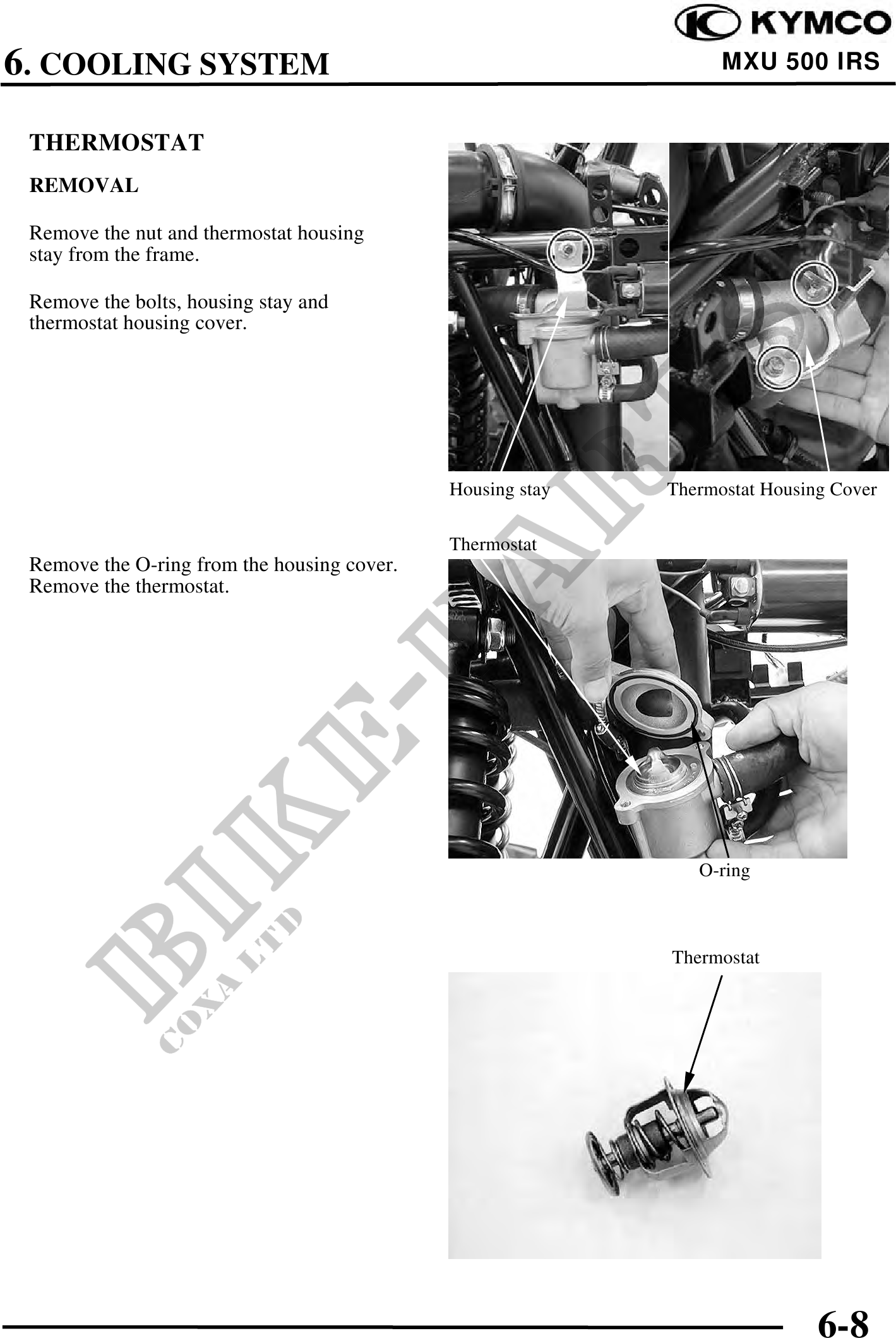

          6. COOLING SYSTEM                                                 MXU 500 IRS


 THERMOSTAT
 REMOVAL

 Remove the nut and thermostat housing
 stay from the frame.

 Remove the bolts, housing stay and
 thermostat housing cover.




                                             Housing stay   Thermostat Housing Cover

                                             Thermostat
 Remove the O-ring from the housing cover.
 Remove the thermostat.




                                                               O-ring



                                                            Thermostat




                                                                             6-8
